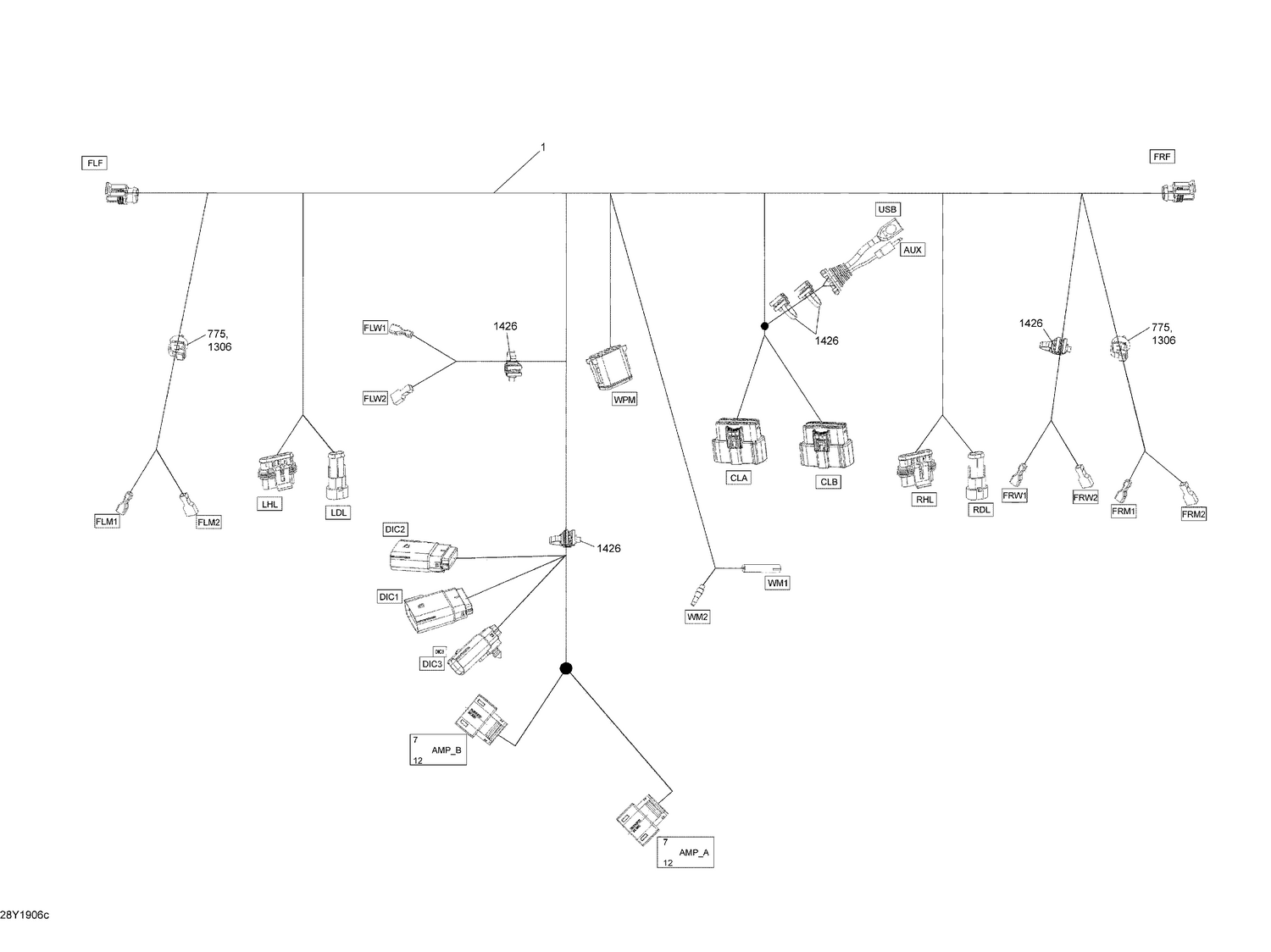

10- Electrical Harness Console_710006487
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| AUX | 278003492 | Audio Jack |
| DIC1 | 515178013 | Male Terminal |
| DIC1 | 710005976 | Connector Molex Mx150 16 Pos |
| DIC2 | 278002860 | Sealing Cap |
| DIC2 | 515178013 | Male Terminal |
| DIC2 | 710005977 | Connector Molex Mx150 16 Pos |
| DIC3 | 278002860 | Sealing Cap |
| DIC3 | 515178013 | Male Terminal |
| DIC3 | 515178347 | Male Housing Connector 4 Pins |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FLM1 | 710000082 | Female Terminal |
| FLM2 | 409010700 | Female Terminal |
| FLW1 | 710000082 | Female Terminal |
| FLW2 | 409010700 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
| FRM1 | 710000082 | Female Terminal |
| FRM2 | 409010700 | Female Terminal |
| FRW1 | 710000082 | Female Terminal |
| FRW2 | 409010700 | Female Terminal |
| LDL | 409209400 | Male Terminal Housing, 2 Circuits |
| LDL | 515176164 | Male Terminal |
| LDL | 515176621 | Wire Seal |
| LHL | 278001013 | Wire Seal |
| LHL | 278001014 | Female Terminal |
| LHL | 710000780 | Connector |
| RDL | 409209400 | Male Terminal Housing, 2 Circuits |
| RDL | 515176164 | Male Terminal |
| RDL | 515176621 | Wire Seal |
| RHL | 278001013 | Wire Seal |
| RHL | 278001014 | Female Terminal |
| RHL | 409013700 | Plug |
| RHL | 710000780 | Connector |
| USB | 710005857 | Connector USB wih Cable |
| WM1 | 278001007 | Insulated Sheath |
| WM1 | 710000421 | Female Terminal |
| WM2 | 278001008 | Insulated Sheath |
| WM2 | 278002261 | Female Terminal |
| WPM | 278000632 | Female Terminal |
| WPM | 278001665 | Female Terminal |
| WPM | 278002377 | Female Terminal Housing, 12 Circuits |
| WPM | 293000052 | Sealing Cap |
| 1 | 710006487 | Dashboard Harness |
| 775 | 293730040 | Mount Dart |
| 1306 | 710002714 | Tie-Rap |
| 1426 | 293750058 | Tie Rap 2 Pièces pour Bordure |
