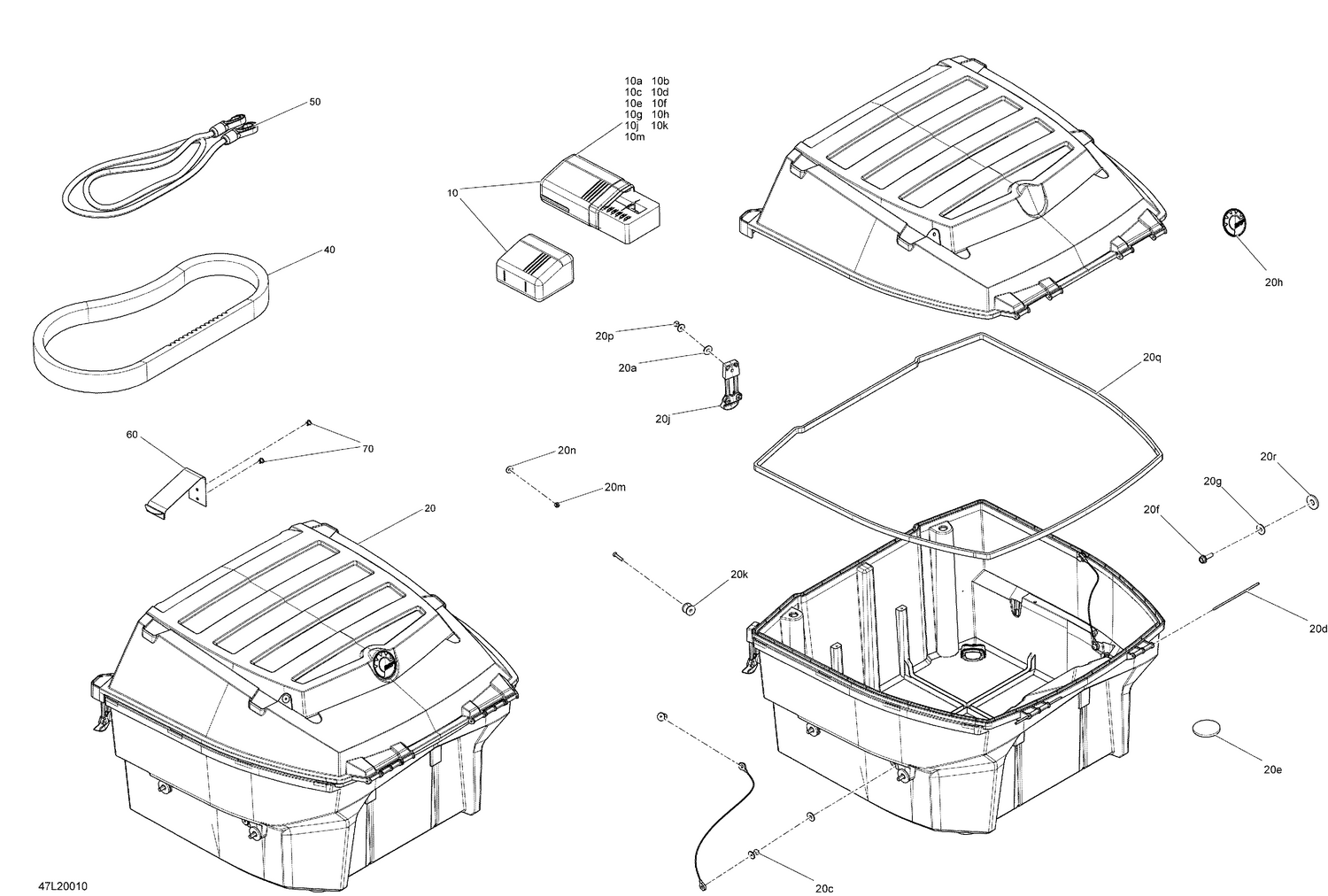

| Ref | Part Number | Description |
|---|
| 10a |
710000742 |
Little Fuse, 5 Ampere |
| 10b |
710000743 |
Little Fuse, 7.5 Amperes |
| 10c |
710000744 |
Little Fuse, 10 Ampere |
| 10d |
710000745 |
Little Fuse, 15 Ampere |
| 10e |
710000746 |
Little Fuse, 20 Ampere |
| 10f |
710000747 |
Little Fuse, 30 Amperes |
| 10g |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 10h |
520900035 |
Multitool |
| 10j |
708200043 |
TOOLS BOX - Call your local BRP dealership |
| 10k |
520900003 |
Pad |
| 10m |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129375. |
| 20a |
250200025 |
Washer M5 |
| 20b |
293750070 |
Seat Retainer Cable |
| 20c |
36036 |
Vetoniitti |
| 20d |
511000702 |
Pin |
| 20e |
510005273 |
Foam |
| 20f |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 20g |
234062410 |
Flat Washer 6 mm |
| 20h |
516008738 |
Logo 48mm "BRP" |
| 20j |
517304572 |
Latch-Panel |
| 20k |
605449087 |
Kuomun kiinnikekumin vasta kappale |
| 20m |
232541484 |
Elastic Stop Nut M4 |
| 20n |
20037 |
Korilevy A4,3 |
| 20p |
36037 |
Pakoputken kannake |
| 20q |
293250219 |
Seal |
| 20r |
510005844 |
SHIMM- RUBBER - Call your local BRP dealership |
| 40 |
417300551 |
Drive Belt This part replaces 417300383. |
| 50 |
21156 |
Rope (Optional) |
| 60 |
5346728 |
Toolkit Support Spring (Opt.) |
