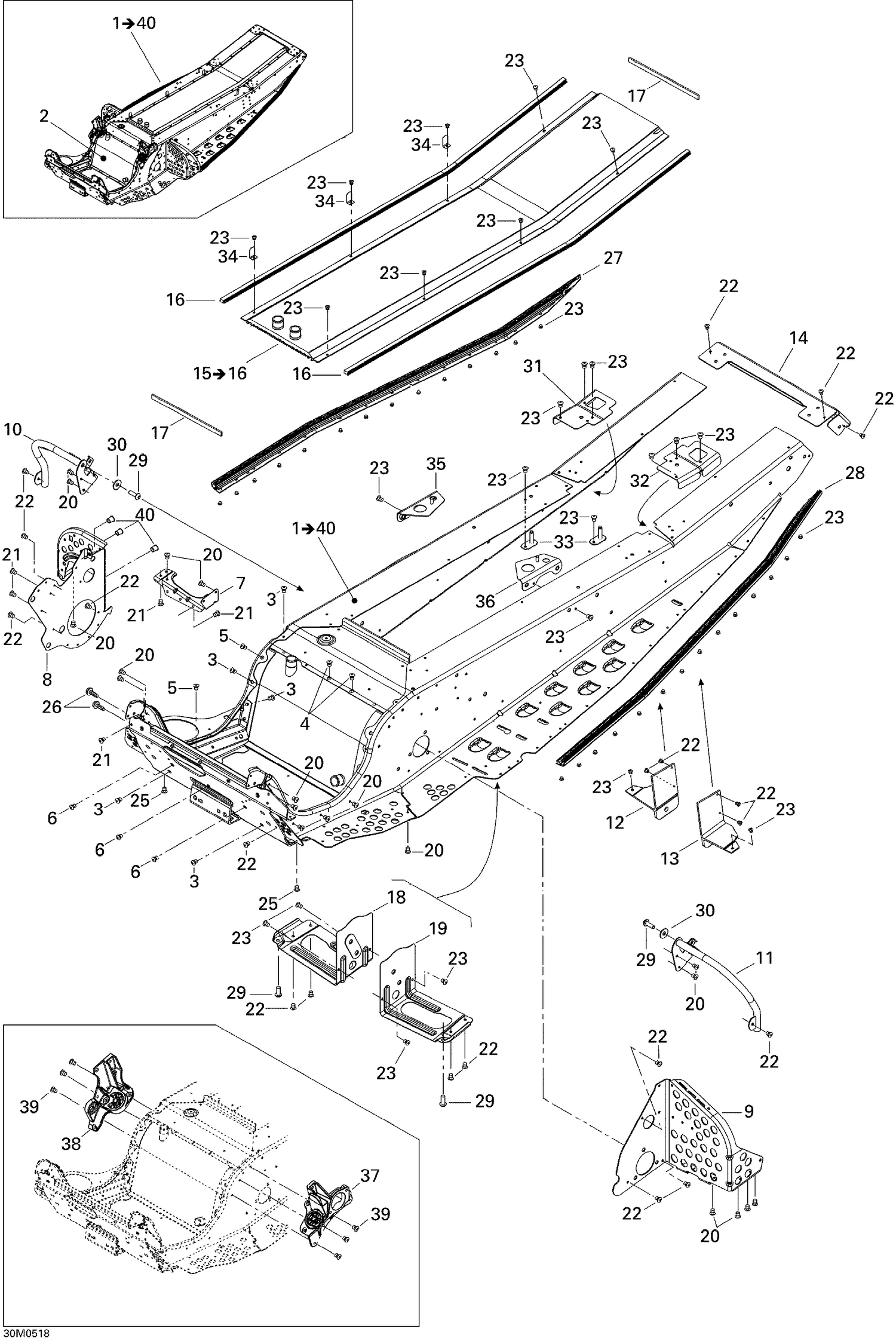

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Front Radiator |
| 3 |
390909200 |
Avex Rivet |
| 4 |
390909100 |
Avex Rivet |
| 5 |
390402200 |
Pop Rivet 3/16" |
| 6 |
390402300 |
Pop Rivet 3/16" |
| 7 |
Not |
Available As Spare Part - RH Reinforcement |
| 8 |
Not |
Available As Spare Part - RH Tunnel Reinforcement |
| 9 |
Not |
Available As Spare Part - LH Tunnel Reinforcement |
| 10 |
Not |
Available As Spare Part - RH Toe Hold Support |
| 11 |
Not |
Available As Spare Part - LH Toe Hold Support |
| 12 |
518323572 |
RH Slide Bracket |
| 13 |
518323573 |
LH SLIDE BRACKET - Call your local BRP dealership |
| 14 |
518324409 |
REAR CAP - Call your local BRP dealership |
| 16 |
415012300 |
RADIATOR PROTECTOR - Call your local BRP dealership |
| 17 |
293200097 |
GASKET - Call your local BRP dealership |
| 18 |
518323952 |
RH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 19 |
518323954 |
LH Footrest Reinforcement |
| 20 |
390909200 |
Avex Rivet |
| 21 |
390909100 |
Avex Rivet |
| 22 |
390402200 |
Pop Rivet 3/16" |
| 23 |
390402400 |
Pop Rivet 3/16" |
| 24 |
Not |
Available As Spare Part - Rivet Autoperçants |
| 25 |
390910300 |
HENROB RIVET - Call your local BRP dealership |
| 26 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 27 |
518324298 |
RH Roller |
| 28 |
518324299 |
LH Roller |
| 29 |
205982086 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 30 |
234082410 |
Flat Washer 8 mm |
| 31 |
518324431 |
RH FRAME REINFORCEMENT - Call your local BRP dealership |
| 32 |
518324432 |
LH FRAME REINFORCEMENT - Call your local BRP dealership |
| 33 |
518322791 |
Tank Bracket |
| 34 |
Not |
Available As Spare Part - Lock Tab |
| 35 |
518324385 |
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership |
| 36 |
518324386 |
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership |
| 37 |
518323715 |
LH Engine Support |
| 38 |
518323716 |
RH ENGINE SUPPORT - Call your local BRP dealership |
| 39 |
293150120 |
Hemlock Rivet 6.5 mm |
