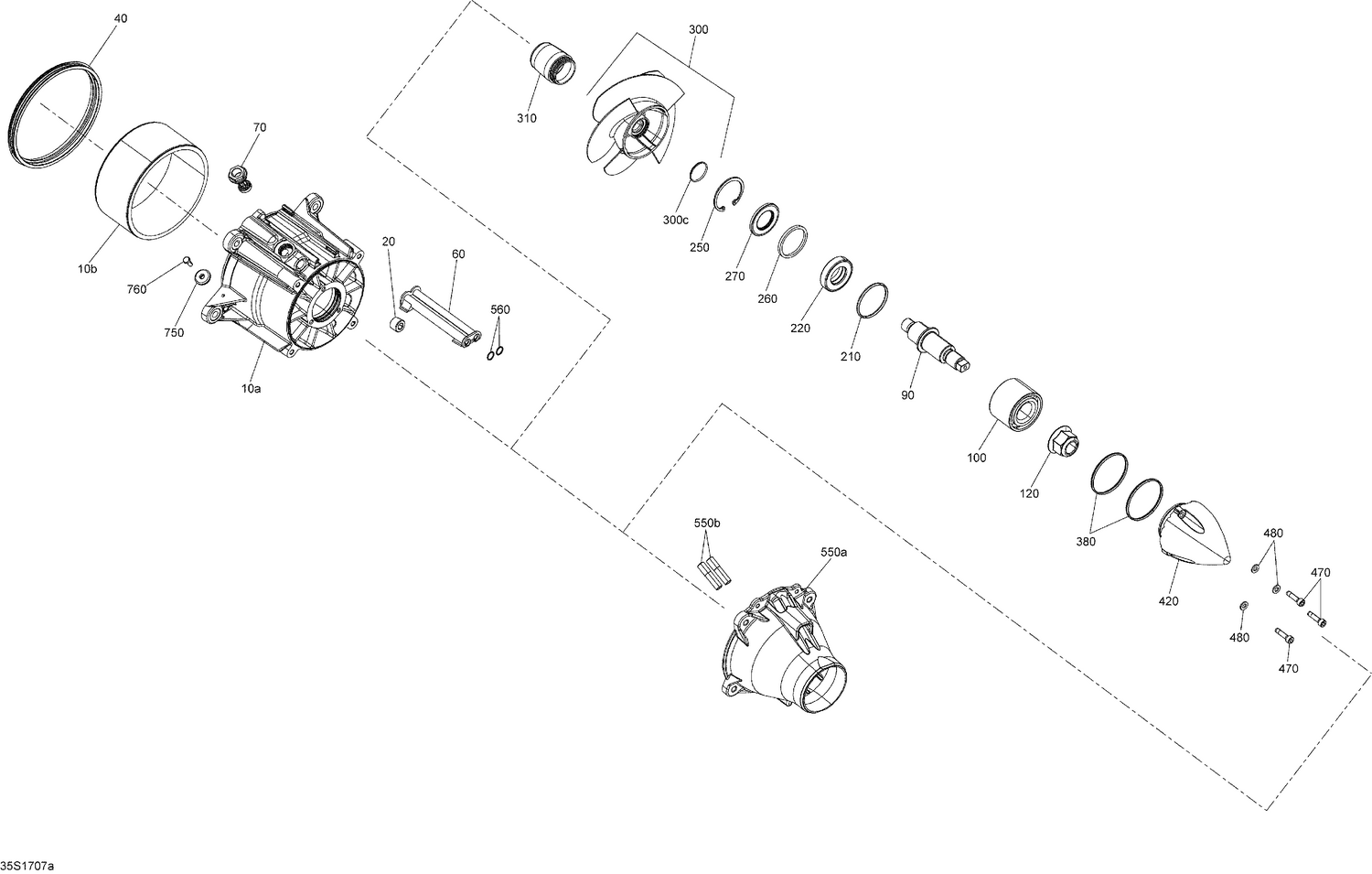

05- Pump - All Models
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 271002018 | Impeller Housing This part replaces 267000852. |
| 10b | 267000419 | Wear Ring |
| 20 | 267000469 | Black, Plastic Plug |
| 40 | 293200087 | Neoprene Seal |
| 60 | 271000785 | Water Outlet |
| 70 | 267000282 | Plug |
| 90 | 267000388 | Impeller Shaft |
| 100 | 267000900 | Angled Bearing |
| 120 | 250100104 | Elastic Flange Nut M20 |
| 210 | 293300090 | O-Ring |
| 220 | 271002071 | Seal This part replaces 293200086. |
| 250 | 293370038 | Circlip |
| 260 | 271001393 | Spacer |
| 270 | 293200089 | Oil Seal |
| 300c | 293300114 | O-Ring |
| 310 | 271002225 | Guard This part replaces 267000206. |
| 380 | 293300086 | O-Ring |
| 420 | 267000428 | Impeller Cover |
| 470 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 480 | 234061600 | Stainless Flat Washer M6 |
| 550a | 267000864 | Venturi |
| 550b | 271001885 | Siphon Tube |
| 560 | 293300013 | O-Ring |
| 750 | 271001920 | Anode Zinc |
