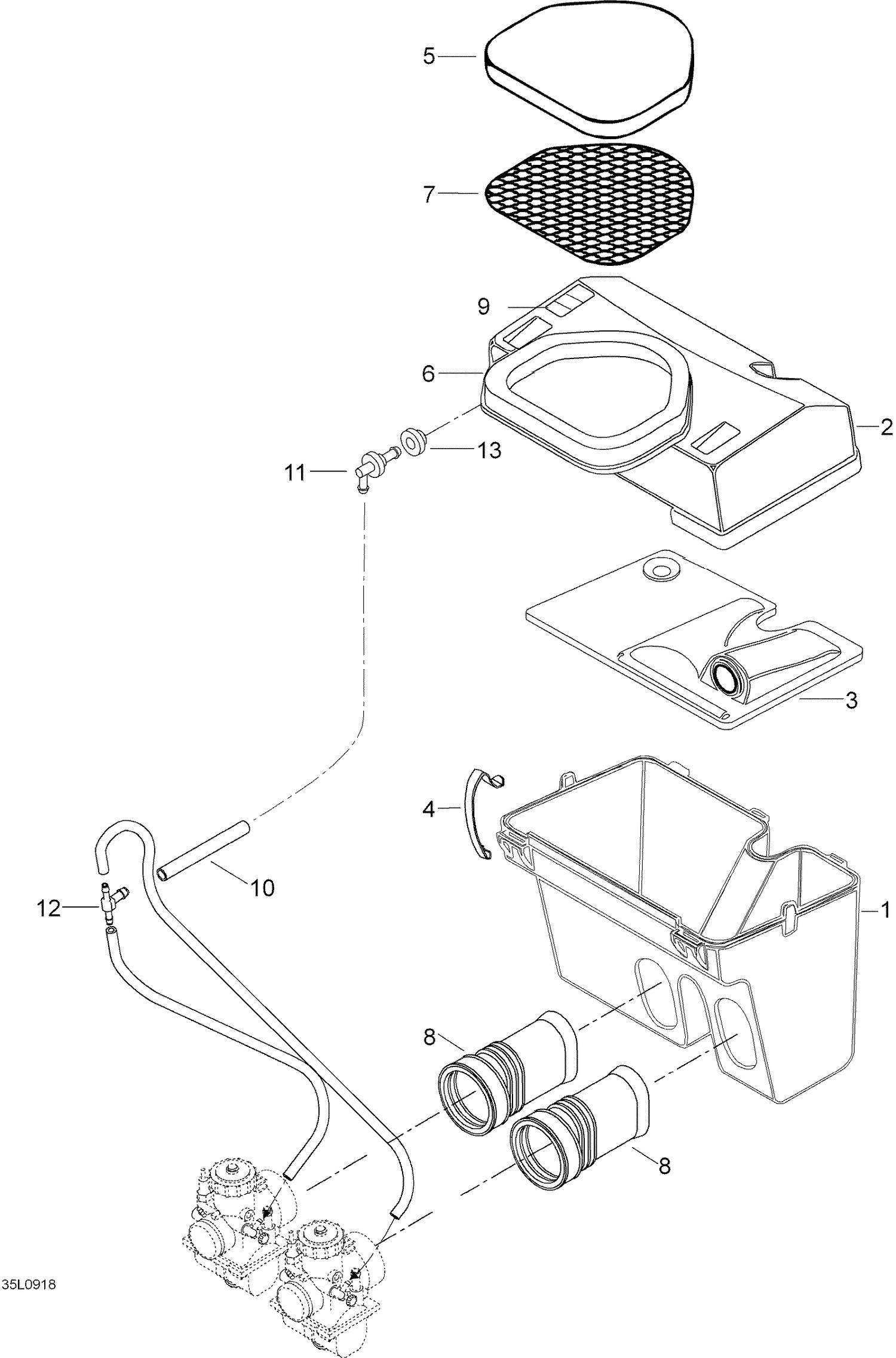

02- Air Silencer
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5142751 | AIRBOX - Call your local BRP dealership |
| 2 | 605255779 | AIRBOX COVER - Call your local BRP dealership |
| 3 | 5344795 | Tube plate |
| 4 | 5442836 | Locking spring - Call your local BRP dealership |
| 5 | 5342958 | Air filter |
| 6 | 5342959 | Sealing foam |
| 7 | 5342960 | Intake grill |
| 8 | 5142626 | Air intake adaptor |
| 9 | 605628003 | CLAMP - Call your local BRP dealership |
| 10 | 39038 | Fuel line |
| 11 | 414580600 | Connector male |
| 12 | 572045500 | T-Fitting |
