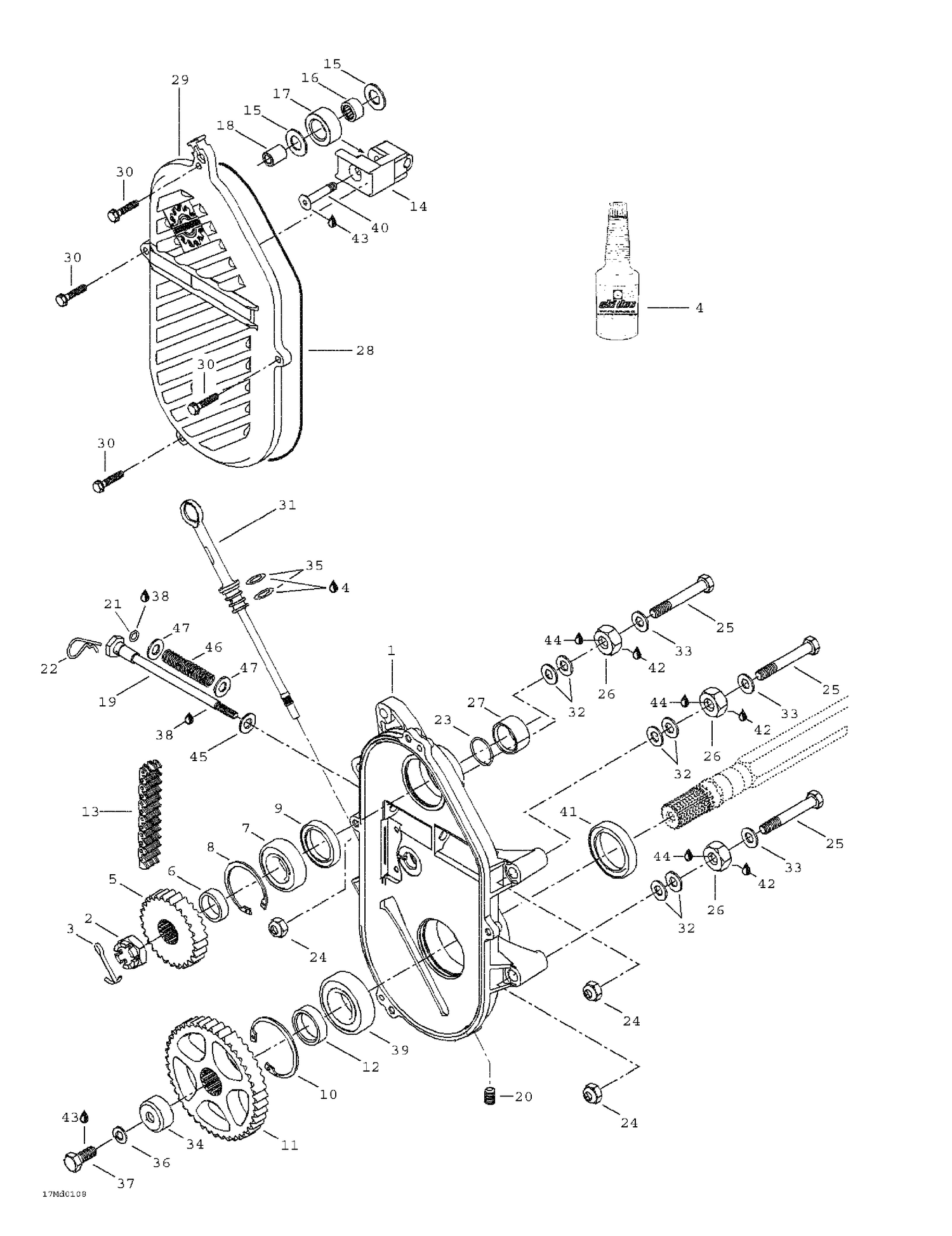

| Ref | Part Number | Description |
|---|
| 1 |
504151938 |
Chaincase |
| 2 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership |
| 3 |
371006300 |
PIN COTTER - Call your local BRP dealership |
| 5 |
504152044 |
Sprocket 21 Teeth |
| 6 |
504093400 |
Shim |
| 7 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 8 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 9 |
293200158 |
Oil Seal This part replaces 415049300. |
| 10 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 11 |
504148500 |
Pignon À 43 Dents, Large - Appelez votre concessionnaire BRP local |
| 12 |
501021800 |
Inner Shim |
| 13 |
504151910 |
Drive Chain Large, (74 Links) |
| 14 |
504151940 |
Chain Tensioner |
| 15 |
504080300 |
WASHER - Call your local BRP dealership |
| 16 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 17 |
414531300 |
ROLLER - Call your local BRP dealership |
| 18 |
504080200 |
SPACER - Call your local BRP dealership |
| 19 |
504151946 |
Adjustment Screw |
| 20 |
504151921 |
Plug 1/8”-27 |
| 21 |
504151954 |
O-RING - Call your local BRP dealership |
| 22 |
414575600 |
Hair Pin |
| 23 |
414876700 |
O-RING - Call your local BRP dealership |
| 24 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 25 |
207107544 |
Hex. Screw M10 X 75 |
| 26 |
504083800 |
Spacer |
| 27 |
507031500 |
SPACER - Call your local BRP dealership |
| 28 |
415046400 |
O-Ring |
| 29 |
504152471 |
CHAINCASE COVER - Call your local BRP dealership This part replaces 504152027. |
| 30 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 31 |
504151703 |
FILLER CAP ASS'Y - Call your local BRP dealership |
| 32 |
504073700 |
WASHER - Call your local BRP dealership |
| 33 |
503183800 |
Washer |
| 34 |
501022400 |
Cap |
| 35 |
414969400 |
O-RING - Call your local BRP dealership |
| 36 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 37 |
207102544 |
Hex. Screw M10 X 25 |
| 38 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 39 |
504152005 |
Ball Bearing |
| 40 |
732601144 |
SCREW - Call your local BRP dealership |
| 41 |
504151918 |
Oil Seal Ass'y |
| 42 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 43 |
293800005 |
Loctite 271, 10 ml |
| 44 |
293800060 |
Loctite 243, 10 ml |
| 45 |
503189148 |
Washer |
| 46 |
504151945 |
SPRING - Call your local BRP dealership |
