Home / BRP / 2004 / MX Z / MX Z 600 HO Renegade/Renegade X, 2004 / 10- Electrical System 2

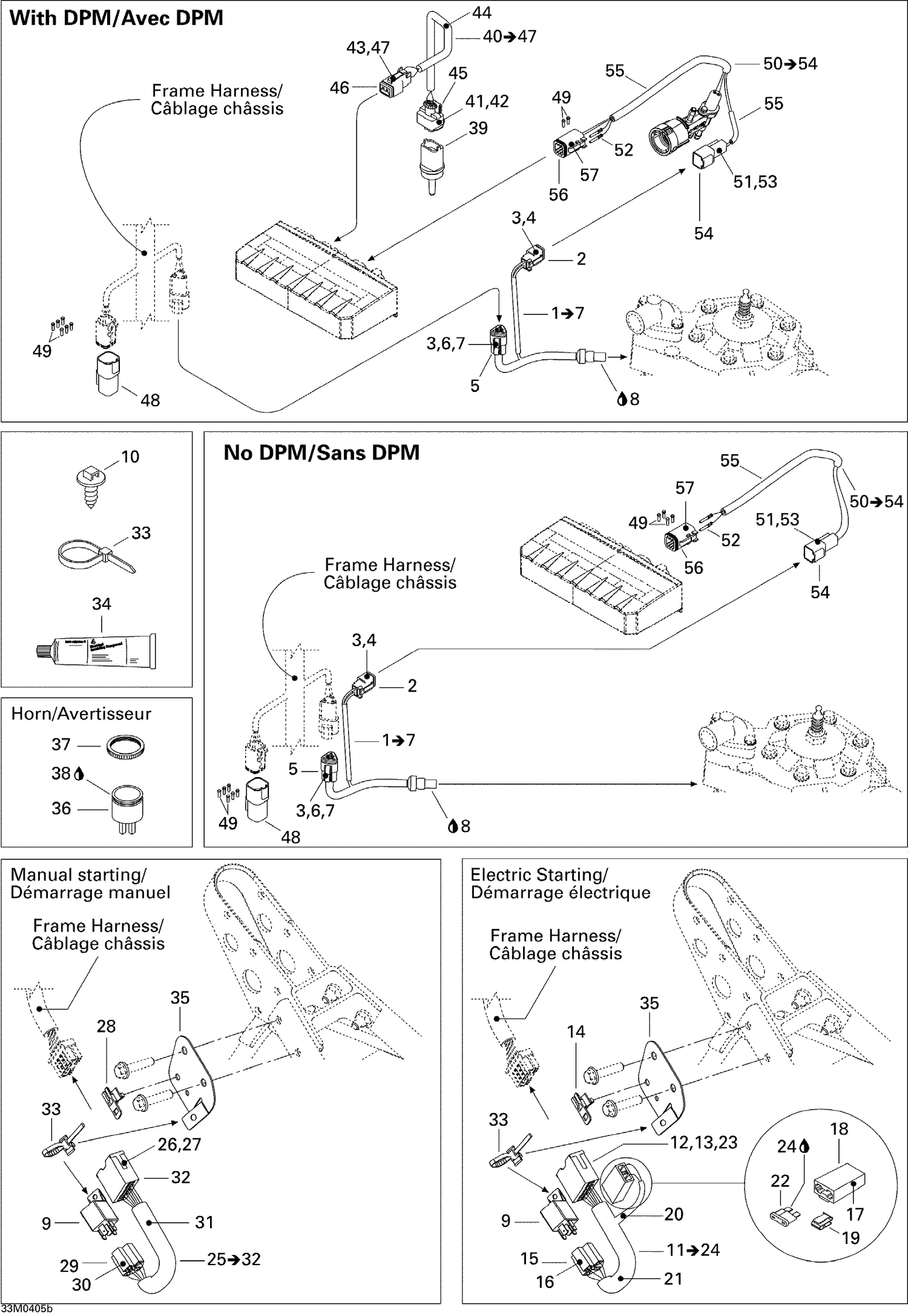

10- Electrical System 2

10- Electrical System 2

Parts (46)

RefPart NumberDescription
2 515175670 Female Terminal Housing, 2 Circuits
3 278000632 Female Terminal
4 515175675 Female Lock, 2 Circuits
5 515175671 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
6 515175676 Female Lock, 3 Circuits
7 293000052 Sealing Cap
8 219704455 Was 293800018 Loctite 592, 50 ml
9 710010053 Relay This part replaces 410113200.
10 293730040 Mount Dart This part replaces 293730018.
12 515175232 Male Terminal
13 515175273 MALE TERMINAL - Call your local BRP dealership
14 515175283 Housing Support
15 409209900 Female Housing, 5 Circuits
16 561503100 FEMALE TERMINAL - Call your local BRP dealership
17 409011600 Female Terminal
18 409004000 Fuse Holder
19 409014200 CLIP - Call your local BRP dealership
20 219704425 Tubing 6 Mm 3000Mm Long
21 219704400 Was 409901800 Tubing (13 mm)
22 278000344 Fuse, 5 Amperes
23 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
24 219704453 Was 293550004 Dielectric Grease, 150 g
26 515175232 Male Terminal
27 515175273 MALE TERMINAL - Call your local BRP dealership
28 515175283 Housing Support
29 409209900 Female Housing, 5 Circuits
30 561503100 FEMALE TERMINAL - Call your local BRP dealership
31 219704400 Was 409901800 Tubing (13 mm)
32 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
33 414115200 Tie-Rap 180 mm
34 219704453 Was 293550004 Dielectric Grease, 150 g
35 515176020 HARNESS SUPPORT - Call your local BRP dealership
41 278000998 Female Terminal
42 278000999 Wire Seal
43 278000632 Female Terminal
44 219704424 Vinyl Tubing, Low Temp 3000Mm Long
45 515175588 FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
46 515175670 Female Terminal Housing, 2 Circuits
47 515175706 Female Lock, 2 Circuits
48 515175668 Male Terminal Housing, 6 Circuits
51 278000631 Male Terminal
52 278000632 Female Terminal
53 409207500 Male Lock, 2 Circuits
54 515175665 Male Terminal Housing, 2 Circuits
55 409901300 LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
56 515175673 Male Housing, 6 Circuits
