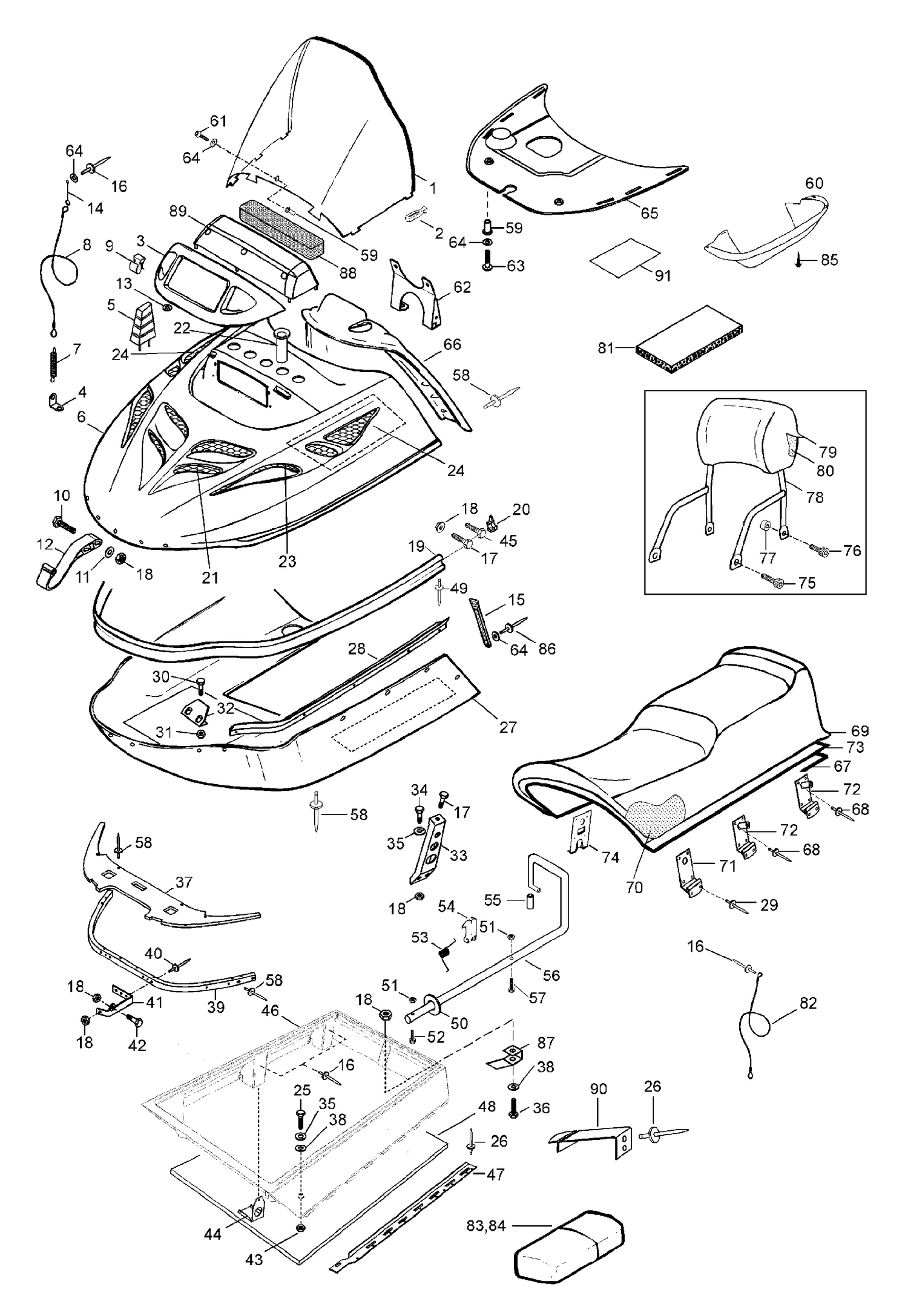

| Ref | Part Number | Description |
|---|
| 1 |
5245105 |
Windshield |
| 2 |
570023800 |
Rubber |
| 3 |
572079200 |
Headlamp Cover |
| 4 |
5443123 |
Spring plate |
| 5 |
5443136 |
Wind screen support |
| 6 |
5144991 |
RIM-hood pre assy |
| 7 |
5442675 |
Spring |
| 8 |
5342674 |
Cap retainer cable |
| 9 |
414227300 |
Clip |
| 10 |
40193 |
Screw M6x50 |
| 11 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 12 |
5343075 |
Hinge |
| 13 |
36084 |
Locking plate |
| 14 |
5442870 |
Retainer Cable Clip - Call your local BRP dealership |
| 15 |
5342952 |
Hood Latch |
| 16 |
36005 |
Rivet |
| 17 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
5242798 |
Bumper |
| 20 |
549096L |
Bumper Cap L.H. - Call your local BRP dealership |
| 20 |
549096R |
Plug R.H. |
| 21 |
5142669 |
Middle grill - Call your local BRP dealership |
| 22 |
5444445 |
INLET TUBE - Call your local BRP dealership |
| 23 |
5242672 |
R.H. lower grill - Call your local BRP dealership |
| 23 |
5342673 |
L.H. lower grill |
| 24 |
5242670 |
UPPER GRILLE LH - Call your local BRP dealership |
| 24 |
5242671 |
R.H. upper grill |
| 25 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 26 |
36083 |
Rivet |
| 27 |
5144049 |
Pan bottom |
| 28 |
5242803 |
Guide side L.H. |
| 28 |
5242804 |
Guide RH - Call your local BRP dealership |
| 29 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 30 |
40247 |
Screw M5x16 |
| 31 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 32 |
5443217 |
Guide short |
| 33 |
5342509 |
Support for bumper - Call your local BRP dealership |
| 34 |
40332 |
Allen screw M6x16 |
| 35 |
20052 |
Lock washer |
| 36 |
40149 |
Screw M6x30 |
| 37 |
5142623 |
Protector for hinge |
| 38 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 39 |
5142799 |
Front support |
| 40 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 41 |
5342234 |
Hinge, R.H. |
| 41 |
5342345 |
Hinge, L.H. |
| 42 |
40084 |
Screw M6x45 |
| 43 |
33066 |
Nut M6 |
| 44 |
5443661 |
Support |
| 45 |
40031 |
Screw M6x25 |
| 46 |
5142066 |
Seat box - Call your local BRP dealership |
| 47 |
5144028 |
CLIP PLATE L.H. - Call your local BRP dealership |
| 47 |
5144029 |
Clip plate R.H. |
| 48 |
5344621 |
Foam |
| 49 |
36003 |
Rivet |
| 50 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 51 |
33008 |
Nut elastic M4 |
| 52 |
40144 |
Allen screw M4 x 16 DIN 912m8.8(1=10pcs) - Call your local BRP dealership |
| 53 |
5444439 |
Spring |
| 54 |
5443664 |
Locking tonque |
| 55 |
28019 |
Plugg |
| 56 |
5344987 |
LOCKING ROD - Call your local BRP dealership |
| 57 |
40146 |
Allen scr. M4 x 20 DIN 912m8.8 Zne(1=10p - Call your local BRP dealership |
| 58 |
36036 |
Rivet |
| 59 |
250100018 |
NUT M5 - Call your local BRP dealership This part replaces 28050. |
| 60 |
5144412 |
Cooling channel |
| 61 |
40358 |
ALLEN SCREW M5 X 30(1=10PCS) - Call your local BRP dealership |
| 62 |
5343120 |
Support |
| 63 |
40808 |
Screw M5x30 |
| 64 |
20008 |
Washer |
| 65 |
5142622 |
Tween-Deck |
| 66 |
5344648 |
Rear hood w/o tapes |
| 67 |
5440059 |
Sealing strip profil |
| 68 |
36043 |
Rivet |
| 69 |
5244983 |
Seat cover |
| 70 |
5244982 |
Seat Foam |
| 71 |
5440581 |
Hinge for set ass’y |
| 72 |
549874 |
Hinge plate - Call your local BRP dealership |
| 73 |
519394 |
SEAT BASE - Call your local BRP dealership |
| 74 |
549732 |
Lock plate weld. - Call your local BRP dealership |
| 75 |
40305 |
Allen screw M8x20 |
| 76 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 77 |
5440665 |
SPACER - Call your local BRP dealership |
| 78 |
5245664 |
Backrest weld. - Call your local BRP dealership |
| 79 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 80 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 81 |
414631900 |
Foam acoustic |
| 82 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 84 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 85 |
414644300 |
Black, Dart |
| 86 |
36009 |
Rivet |
| 87 |
5444464 |
Retainer cable lug - Call your local BRP dealership |
| 88 |
5343135 |
Filter - Call your local BRP dealership |
| 89 |
5142624 |
Cover intake |
| 90 |
5344443 |
Toolkit support |
