Home / BRP / ELECTRIC / 1982 / 24 / 07- Ski Shocks

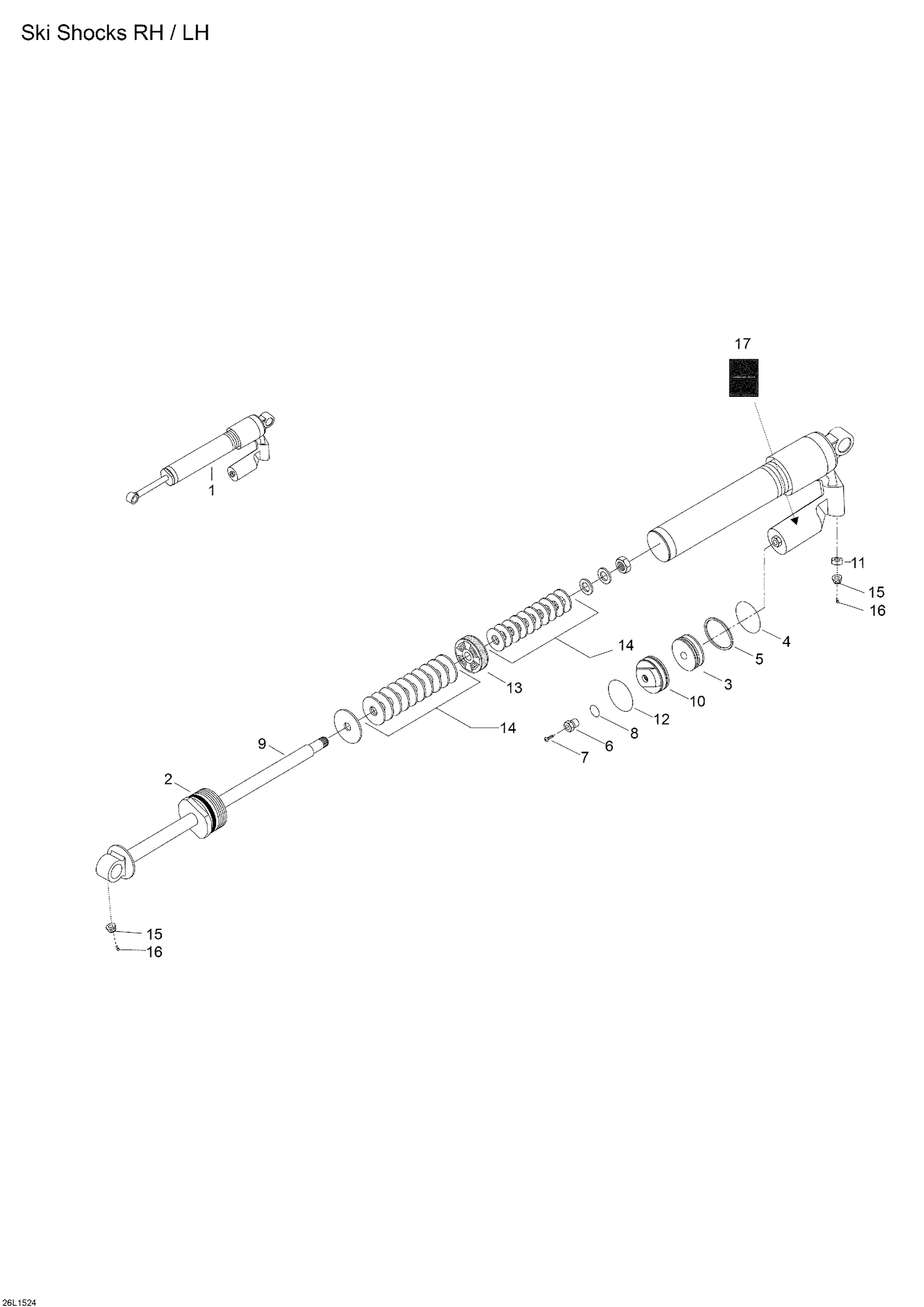

07- Ski Shocks

07- Ski Shocks

Parts (74)

RefPart NumberDescription
1 505073694 LH FRONT SHOCK - Call your local BRP dealership
1 505073695 RH FRONT SHOCK - Call your local BRP dealership
2 Not Available As Spare Part - Seal carrier assy
3 Not Available As Spare Part - Floating piston
4 415093807 O-Ring
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 Not Available As Spare Part - Rod ass'y
10 619300009 Seal carrier assy
11 619300015 Valve ass'y
12 415093804 O-Ring
13 Not Available As Spare Part - Piston 40 mm. 0 mm. bleed
14 230029 Shim 40/46 mm. 20 X 0,114
14 230030 Shim 40/46 mm. 20 X 0,152
14 230031 Shim 40/46 mm. 20 X 0,203
14 230032 Shim 40/46 mm. 20 X 0,254
14 230033 Shim 40/46 mm. 34 X 0,114
14 230034 Shim 40/46 mm. 34 X 0,152
14 230035 Shim 40/46 mm. 34 X 0,203
14 230036 Shim 40/46 mm. 34 X 0,254
14 230037 Shim 40/46 mm. 36 X 0,114
14 230040 Shim 40/46 mm. 38 X 0,152
14 230041 Shim 40/46 mm. 38 X 0,203
14 230042 Shim 40/46 mm. 38 X 0,254
14 230082 Shim 40/46 mm. 32 X 0,114
14 503189038 Shim 40/46 mm. 36 X 0,254
14 619300022 Shim 40/46 mm. 32 X 0,305
14 619300056 Shim 40/46 mm. 30 X 0,305
14 619300059 Shim 40/46 mm. 32 X 0,254
14 619300060 Shim 40/46 mm. 17 X 0,114
14 619300067 Shim 40/46 mm. 18 X 0,152
14 619300068 Shim 40/46 mm. 18 X 0,114
14 619300069 Shim 40/46 mm. 17 X 0,203
14 619300070 Shim 40/46 mm. 34 X 0,305
14 619300095 Shim 40/46 mm. 24 X 0,254
14 619300097 Shim 40/46 mm. 20 X 0,305
14 619300098 Shim 40/46 mm. 22 X 0,203
14 619300099 Shim 40/46 mm. 26 X 0,254
14 619300100 Shim 40/46 mm. 26 X 0,305
14 619300101 Shim 40/46 mm. 28 X 0,114
14 619300102 Shim 40/46 mm. 28 X 0,203
14 619300103 Shim 40/46 mm. 28 X 0,254
14 619300104 Shim 40/46 mm. 30 X 0,152
14 619300105 Shim 40/46 mm. 36 X 0,305
14 619300106 Shim 40/46 mm. 38 X 0,305
14 619300107 Shim 40/46 mm. 40 X 0,305
14 619300112 Shim 40/46 mm. 40 X 0,203
14 619300113 Shim 40/46 mm. 30 X 0,254
14 619300133 Shim 40/46 mm. 22 X 0,114
14 619300134 Shim 40/46 mm. 22 X 0,254
14 619300135 Shim 40/46 mm. 30 X 0,114
14 619300136 Shim 40/46 mm. 40 X 0,254
14 619300137 Shim 40/46 mm. 32 X 0,152
14 619300138 Shim 40/46 mm. 32 X 0,203
14 619300140 Shim 40/46 mm. 22 X 0,152
14 619300141 Shim 40/46 mm. 26 X 0,152
14 619300142 Shim 40/46 mm. 36 X 0,203
14 619300144 Shim 40/46 mm. 22 X 0,305
14 619300145 Shim 40/46 mm. 24 X 0,114
14 619300146 Shim 40/46 mm. 24 X 0,152
14 619300147 Shim 40/46 mm. 24 X 0,203
14 619300148 Shim 40/46 mm. 24 X 0,305
14 619300149 Shim 40/46 mm. 26 X 0,114
14 619300150 Shim 40/46 mm. 26 X 0,203
14 619300151 Shim 40/46 mm. 28 X 0,152
14 619300152 Shim 40/46 mm. 28 X 0,305
14 619300154 Shim 40/46 mm. 30 X 0,203
14 619300155 Shim 40/46 mm. 36 X 0,152
14 619300157 Shim 40/46 mm. 40 X 0,152
14 Not Available As Spare Part - Shim 40/46 mm. 17 X 0,152
15 505072753 Adjustment Knob
16 250000644 Allen Screw M3 X 0.5 X 10 This part replaces 205031060.
