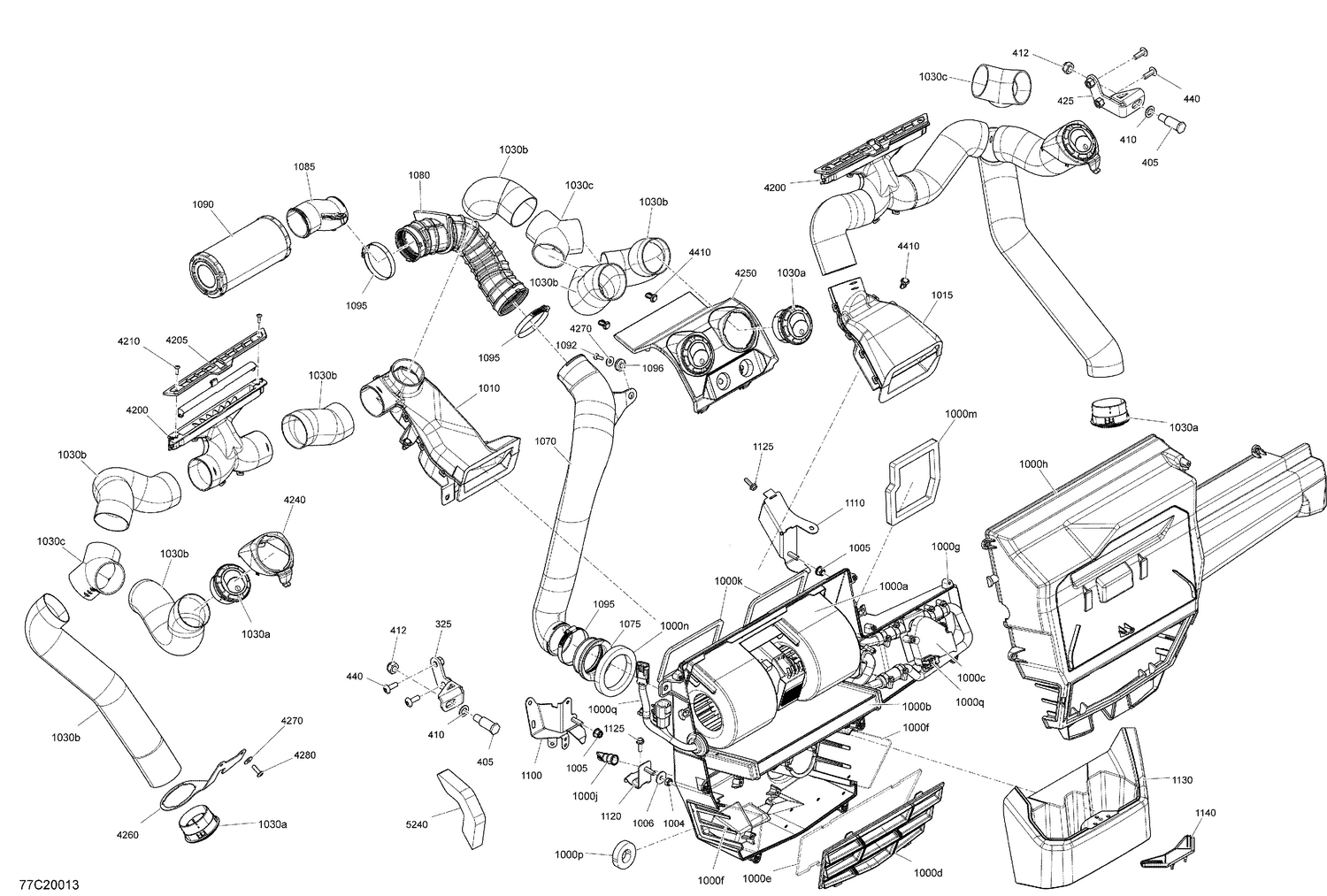

09- Cab - Heater System
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 325 | 705801086 | LH Front Striker Support This part replaces 705800350. |
| 405 | 705800038 | Striker Bolt |
| 410 | 250200005 | Conical Spring Washer M12 This part replaces 705800368. |
| 412 | 232521416 | Elastic Stop Nut M12 |
| 425 | 705800351 | RH Front Striker Support |
| 440 | 250000874 | Torx Truss M8 X 25 |
| 1000a | 520001536 | Fan |
| 1000b | 705800729 | Heater Coil |
| 1000c | 705800487 | Valve Ass'y |
| 1000d | 705800453 | Grille Unit |
| 1000e | 705800440 | Air Filter |
| 1000f | 705800430 | Air Filter |
| 1000g | 705800448 | Front Cover |
| 1000h | 705800384 | Rear Cover |
| 1000j | 705800807 | Valve_Drain This part replaces 705800492. |
| 1000k | 705800493 | Self Adhesive Weather Strip |
| 1000m | 705800494 | Self Adhesive Weather Strip |
| 1000n | 705800495 | Self Adhesive Weather Strip |
| 1000p | 705800496 | Self Adhesive Weather Strip |
| 1000q | 705800451 | Heater Unit Wiring Harness |
| 1004 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1005 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1006 | 234082410 | Flat Washer 8 mm |
| 1010 | 705800428 | LH Manifold |
| 1015 | 705800650 | RH Manifold Ass'y This part replaces 705800429. |
| 1030a | 705800436 | Grille Scoop |
| 1030b | 705800570 | Duct Ventilation Kit |
| 1030c | 705800449 | Hose Y Fitting |
| 1070 | 705800377 | Intake Duct |
| 1075 | 705800437 | Lower Intake Fitting |
| 1080 | 705800438 | Upper Intake Fitting |
| 1085 | 705800439 | Upper Intake Duct |
| 1090 | 705800395 | Air Filter |
| 1092 | 250000720 | Torx Screw K50 X 16 |
| 1095 | 293650091 | Norma Clamp |
| 1096 | 709000582 | Grommet This part replaces 293720053. |
| 1100 | 705800571 | LH Upper Console Support |
| 1110 | 705800443 | RH Upper Console Support |
| 1120 | 705800444 | Lower Console Support |
| 1125 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1130 | 705800452 | Cup Holder |
| 1140 | 707900036 | Cup Retainer |
| 4200 | 705800501 | Central Adapter |
| 4205 | 705800425 | Front Ventilation Grille |
| 4210 | 250000759 | Torx Truss Pt K40 X 16 |
| 4240 | 705800426 | Side Grille Support |
| 4250 | 715007289 | Central Grille Support |
| 4260 | 705800455 | LH Lower Grille Support |
| 4270 | 234062670 | Stainless Steel Flat Washer |
| 4280 | 250000722 | Torx Screw M6 X 20 |
| 4410 | 293150230 | Tuflok Plastic Rivet |
