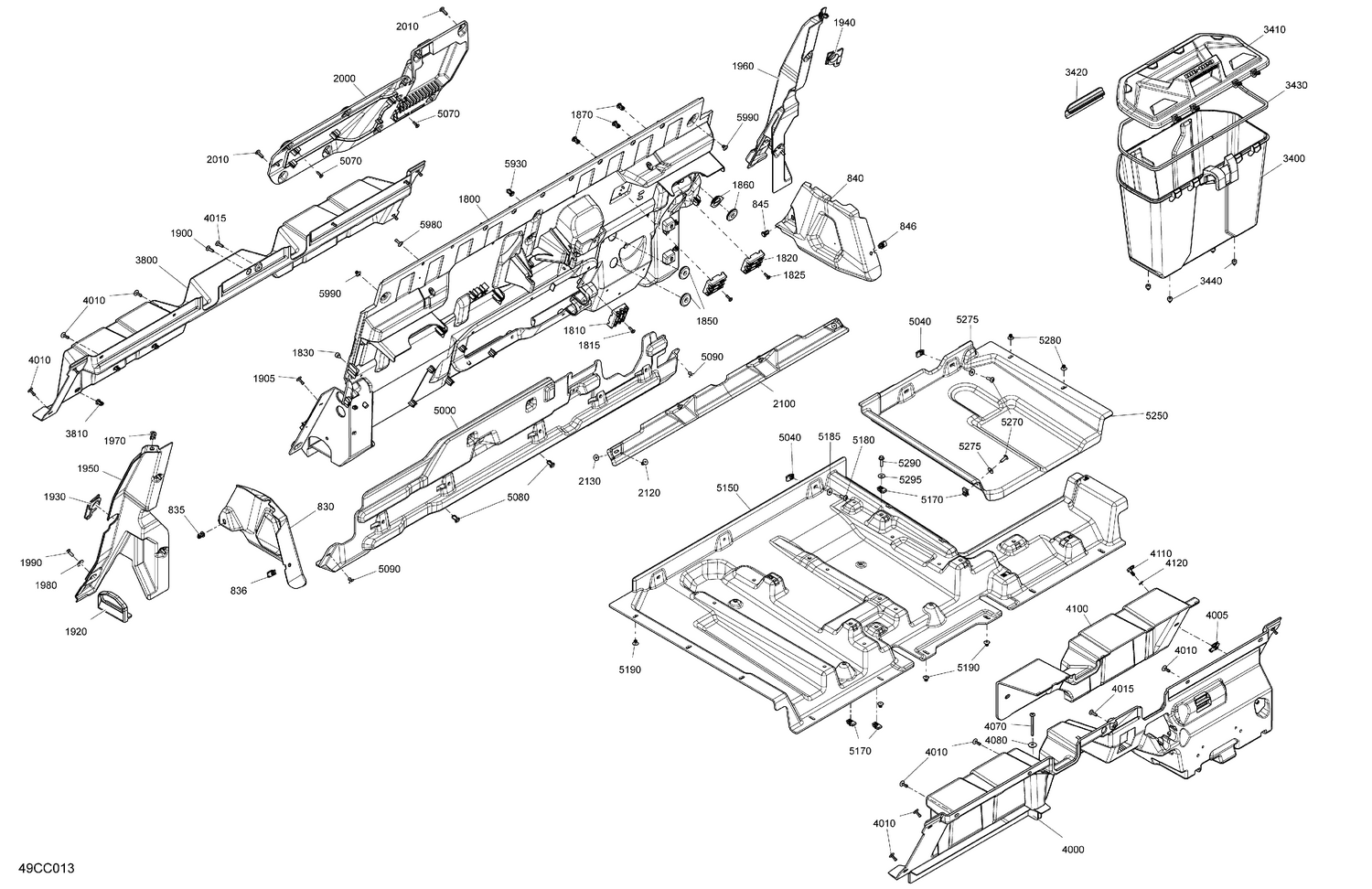

07- Cab Interior - Back Wall
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 830 | 707901002 | LH Lower Panel |
| 835 | 293150230 | Tuflok Plastic Rivet |
| 836 | 250100198 | Panel Nut M6 X 1.0 |
| 840 | 707901003 | RH Lower Panel |
| 845 | 293150230 | Tuflok Plastic Rivet |
| 846 | 250100198 | Panel Nut M6 X 1.0 |
| 1810 | 707900788 | Hose Support |
| 1815 | 250000720 | Torx Screw K50 X 16 |
| 1820 | 707900788 | Hose Support |
| 1825 | 250000720 | Torx Screw K50 X 16 |
| 1830 | 293830005 | Rubber Bumper |
| 1850 | 293720119 | Grommet |
| 1860 | 293000125 | Plug |
| 1870 | 293150230 | Tuflok Plastic Rivet |
| 1900 | 250000722 | Torx Screw M6 X 20 |
| 1905 | 293150100 | Pop Rivet 3/16" |
| 1920 | 707900774 | Panel Trim |
| 1930 | 707901080 | LH Panel Trim |
| 1940 | 707901081 | RH Panel Trim |
| 1950 | 707900766 | LH Upper Deflector |
| 1960 | 707900767 | RH Upper Deflector |
| 1970 | 293150230 | Tuflok Plastic Rivet |
| 1980 | 234062670 | Stainless Steel Flat Washer |
| 1990 | 250000720 | Torx Screw K50 X 16 |
| 2000 | 707900742 | Rear Access Cover |
| 2010 | 250000712 | Torx Screw M6 X 20 |
| 2100 | 707900795 | Rear Deflector |
| 2120 | 293150100 | Pop Rivet 3/16" |
| 2130 | 250200025 | Washer M5 |
| 3400 | 715003314 | Storage Box |
| 3410 | 715003314 | Storage Box |
| 3420 | 269501945 | Clip |
| 3430 | 293250453 | Neoprene Seal |
| 3440 | 293830005 | Rubber Bumper |
| 3800 | 707900722 | Rear Panel |
| 3810 | 293150230 | Tuflok Plastic Rivet |
| 4000 | 707901074 | Rear Lower Cab Panel |
| 4005 | 705002651 | Quarter Turn Nut |
| 4010 | 293150100 | Pop Rivet 3/16" |
| 4015 | 250000722 | Torx Screw M6 X 20 |
| 4070 | 250000954 | Torx Screw M6 X 70 |
| 4080 | 250200162 | Flat Washer M6.6 X 22 |
| 4100 | 707900743 | Battery Cover |
| 4110 | 705002649 | Quarter Turn Screw |
| 4120 | 708400286 | Washer |
| 5000 | 707900800 | Front Upper Box Panel |
| 5040 | 250100198 | Panel Nut M6 X 1.0 |
| 5070 | 250000720 | Torx Screw K50 X 16 |
| 5080 | 293150230 | Tuflok Plastic Rivet |
| 5090 | 293150104 | Pop Rivet 3/16" |
| 5150 | 707901044 | LH Upper Box Panel |
| 5170 | 250100198 | Panel Nut M6 X 1.0 |
| 5180 | 250000722 | Torx Screw M6 X 20 |
| 5185 | 234062670 | Stainless Steel Flat Washer |
| 5190 | 293150104 | Pop Rivet 3/16" |
| 5250 | 707900721 | RH Upper Box Panel |
| 5270 | 250000722 | Torx Screw M6 X 20 |
| 5275 | 234062670 | Stainless Steel Flat Washer |
| 5280 | 293150104 | Pop Rivet 3/16" |
| 5290 | 207562544 | Hex. Flange Screw M6 X 25 |
| 5295 | 234062670 | Stainless Steel Flat Washer |
| 5930 | 293150230 | Tuflok Plastic Rivet |
| 5980 | 293150100 | Pop Rivet 3/16" |
