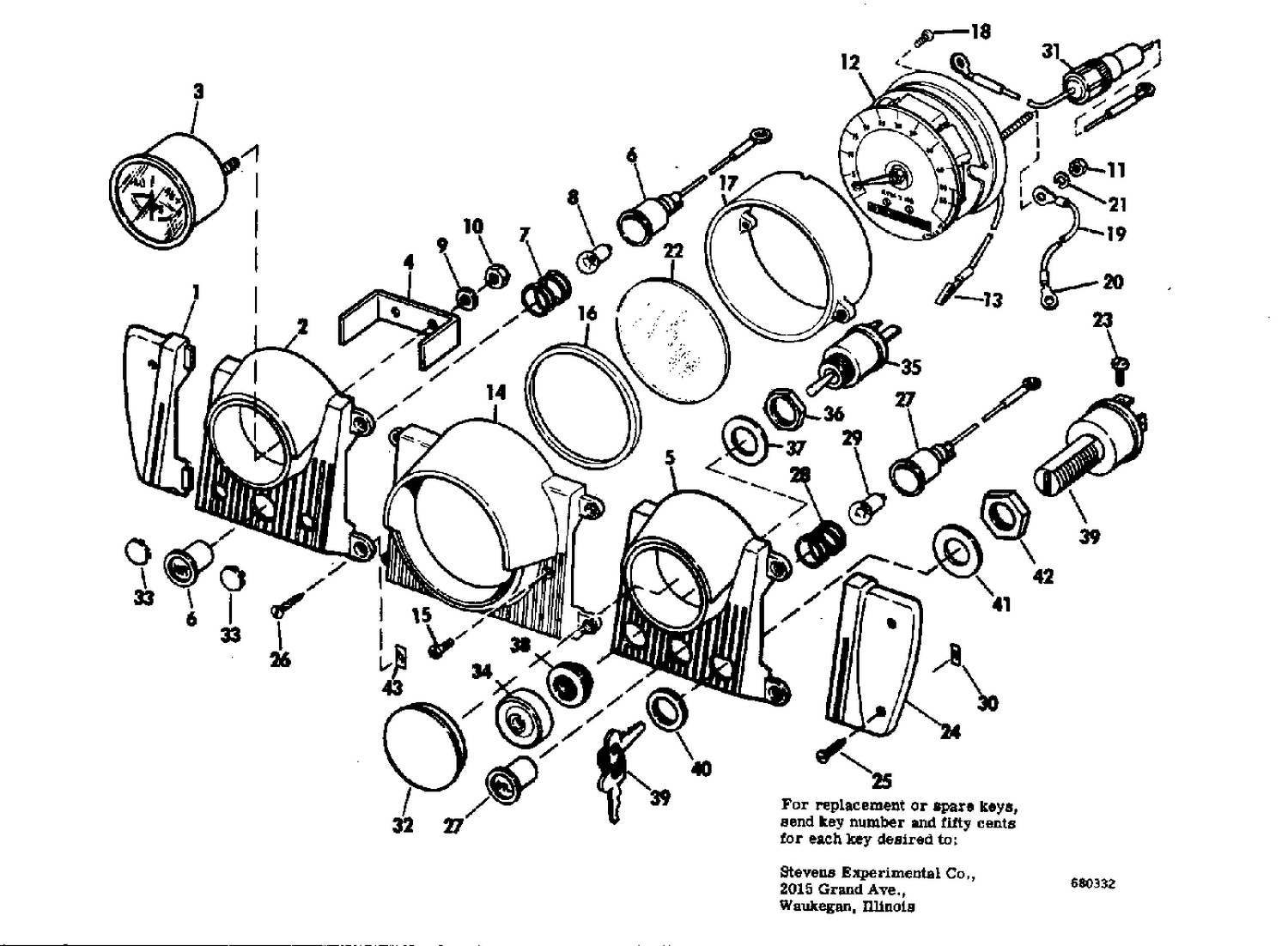

| Ref | Part Number | Description |
|---|
| 1 |
0901624 |
END PANEL,Port |
| 2 |
0310945 |
PANEL,Port |
| 3 |
0380444 |
AMMETER |
| 4 |
0308485 |
CLAMP |
| 5 |
0310946 |
PANEL,Starboard |
| 6 |
0379853 |
INDICATING LIGHT ASSY., Temperature |
| 12 |
0172045 |
TACHOMETER |
| 14 |
0902123 |
BEZEL,Tachometer |
| 15 |
0902122 |
SCREW,Case to bezel |
| 16 |
0121356 |
SEAL,Lens |
| 17 |
0171747 |
CASE ASSEMBLLY |
| 18 |
0121354 |
MOUNTING SCREW, Instrument |
| 19 |
0171745 |
GROUND WIRE ASSEMBLY |
| 21 |
0304642 |
LOCKWASHER |
| 22 |
0121357 |
LENS,Tachometer |
| 24 |
0901625 |
END PANEL,Short |
| 25 |
0901626 |
SCREW,End panel |
| 26 |
0901146 |
SCREW,Dash panel |
| 27 |
0379852 |
INDICATING LIGHT ASSY., Oil |
| 30 |
0901627 |
SPEED NUT |
| 31 |
0378334 |
FUSE HOLDER & LEAD ASSEMBLY |
| 32 |
0205403 |
PLUG (EVEINRUDE) |
| 32 |
0310982 |
PLUG (OMC) |
| 32 |
0901619 |
PLUG (JOHNSON) |
| 33 |
0309024 |
PLUG |
| 37 |
0900696 |
WASHER |
| 39 |
0386545 |
IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 0171741 |
0171741 |
TACHOMETER ASSEMABLY |
| 0171835 |
0171835 |
TACHOMETER & PANEL ASSEMBLY |
