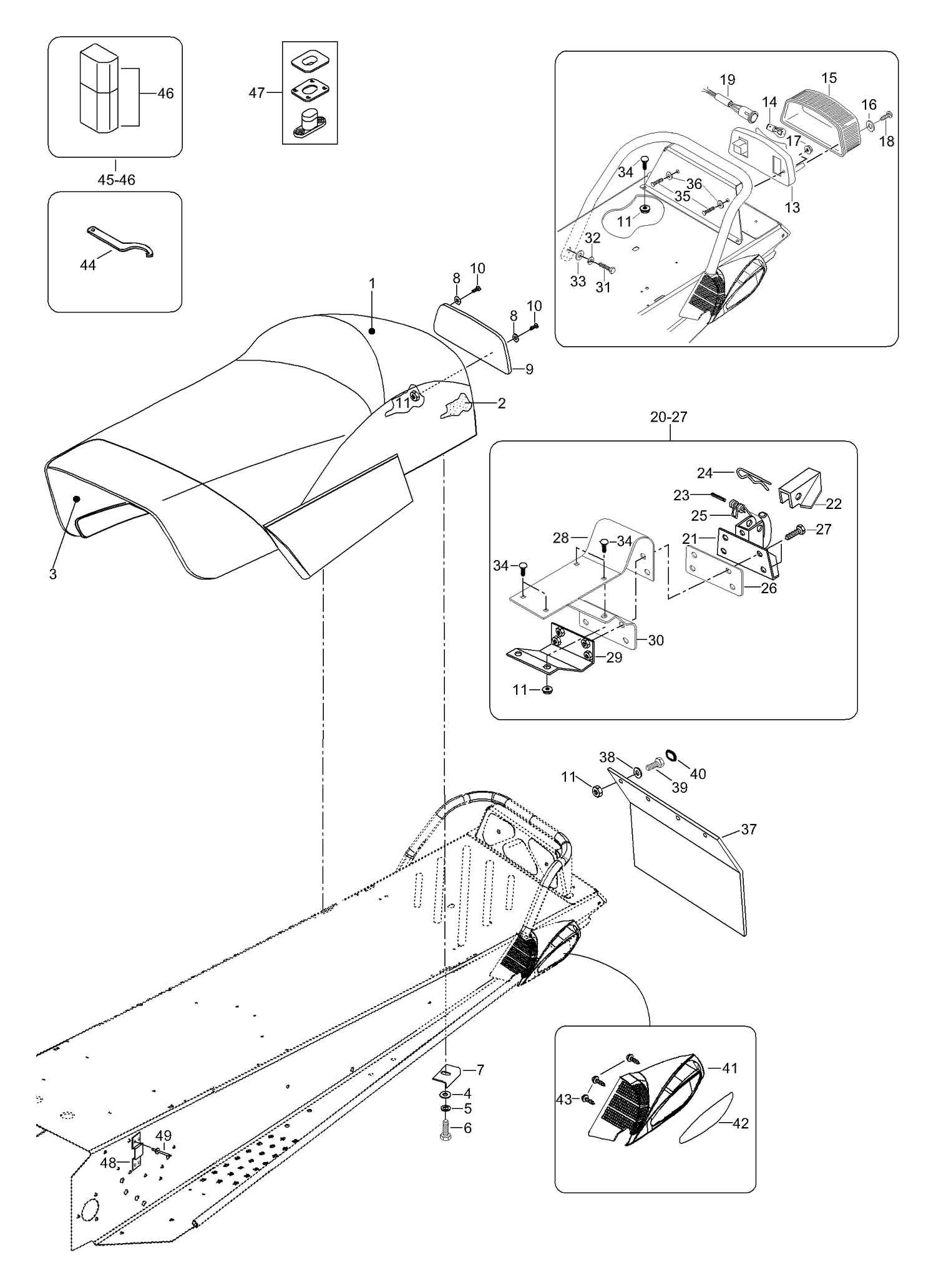

| Ref | Part Number | Description |
|---|
| 1 |
605148612 |
Seat cover |
| 2 |
5243866 |
Seat foam |
| 3 |
5146815 |
Seat bottom |
| 4 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 5 |
20014 |
Lock washer |
| 6 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 7 |
5447994 |
Support plate |
| 8 |
20117 |
Washer |
| 9 |
5348247 |
Cover plate |
| 10 |
40833 |
Screw M6 x 30 |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 13 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 14 |
520000758 |
Bulb This part replaces 410504000. |
| 15 |
414513700 |
Lens |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 18 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 19 |
515175852 |
Adapter |
| 21 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 22 |
5440767 |
Lock |
| 23 |
41012 |
Spring Pin |
| 24 |
41029 |
Needle Pin |
| 25 |
545693 |
SPRING - Call your local BRP dealership |
| 26 |
605449546 |
Plate |
| 27 |
40386 |
Screw M8 x 30 |
| 28 |
605349106 |
Hitch support |
| 29 |
605349124 |
Hitch support |
| 30 |
605349487 |
Hitch support |
| 31 |
40030 |
Screw M6 x 20 |
| 32 |
20052 |
Lock washer |
| 33 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 34 |
40866 |
Locking screw M6 x 20 |
| 35 |
40149 |
Locking screw M6 x 30 |
| 36 |
20077 |
M8 Washer |
| 37 |
5246860 |
Snow guard |
| 38 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 39 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 40 |
415073300 |
Cap |
| 41 |
520000269 |
R.H. moulding |
| 41 |
520000270 |
L.H. moulding |
| 42 |
516000241 |
R.H. rear reflector |
| 42 |
516000242 |
L.H. rear reflector |
| 43 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 44 |
529000035 |
Wrench adjuster This part replaces 529032900. |
| 46 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 47 |
5444390 |
Seat Buckle |
| 48 |
5447908 |
Seat fastening plate |
