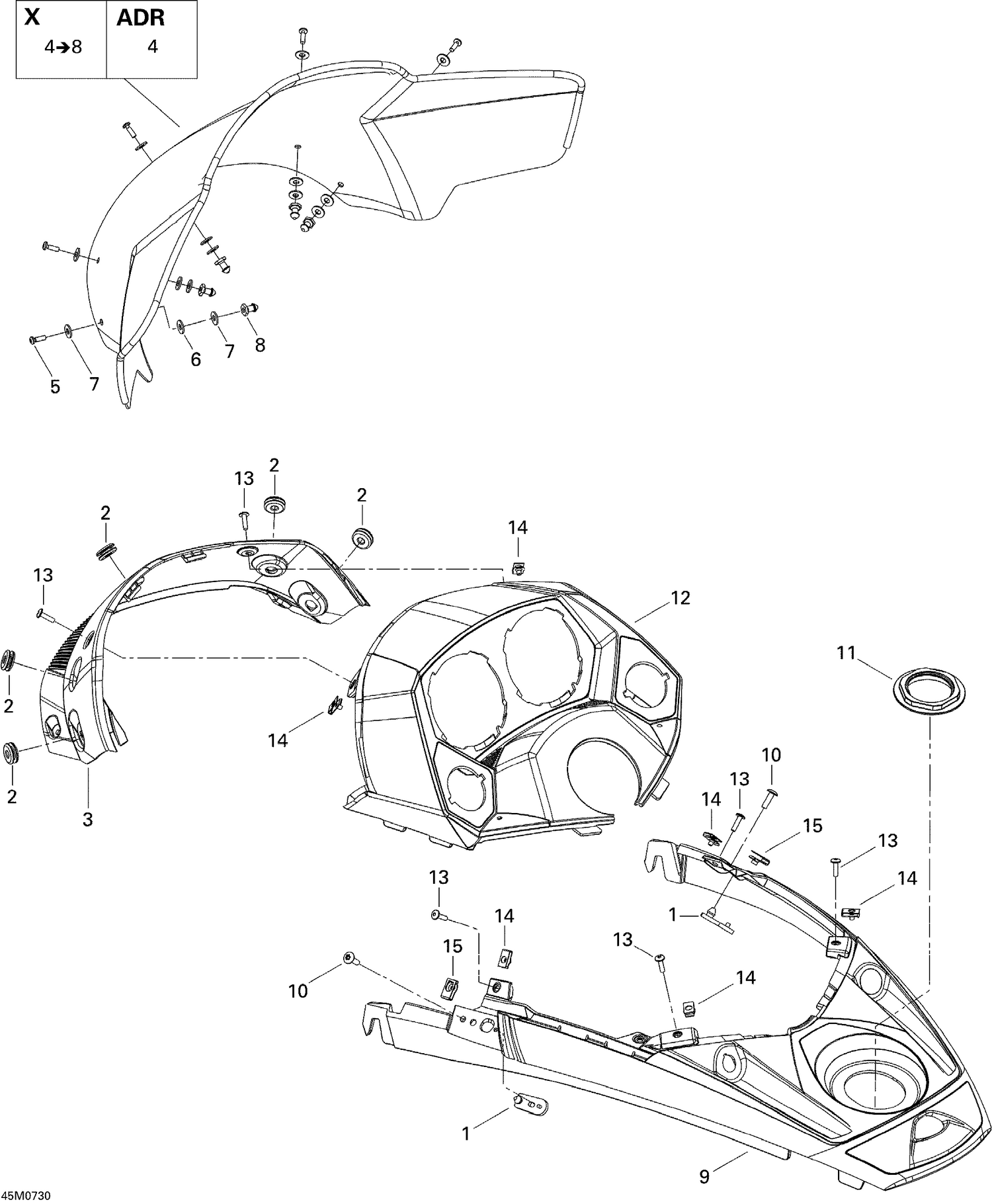

| Ref | Part Number | Description |
|---|
| 1 |
517302616 |
HOOD LATCH - Call your local BRP dealership |
| 2 |
517307161 |
Grommet This part replaces 517302841. |
| 3 |
517303219 |
INDICATOR SUPPORT DOOR - Call your local BRP dealership |
| 5 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 6 |
250200024 |
Rubber Washer 5 mm |
| 7 |
250200025 |
Washer M5 |
| 8 |
517303439 |
Knob |
| 9 |
517303086 |
CENTER CONSOLE - Call your local BRP dealership |
| 10 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 11 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 12 |
517303357 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 13 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 14 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
