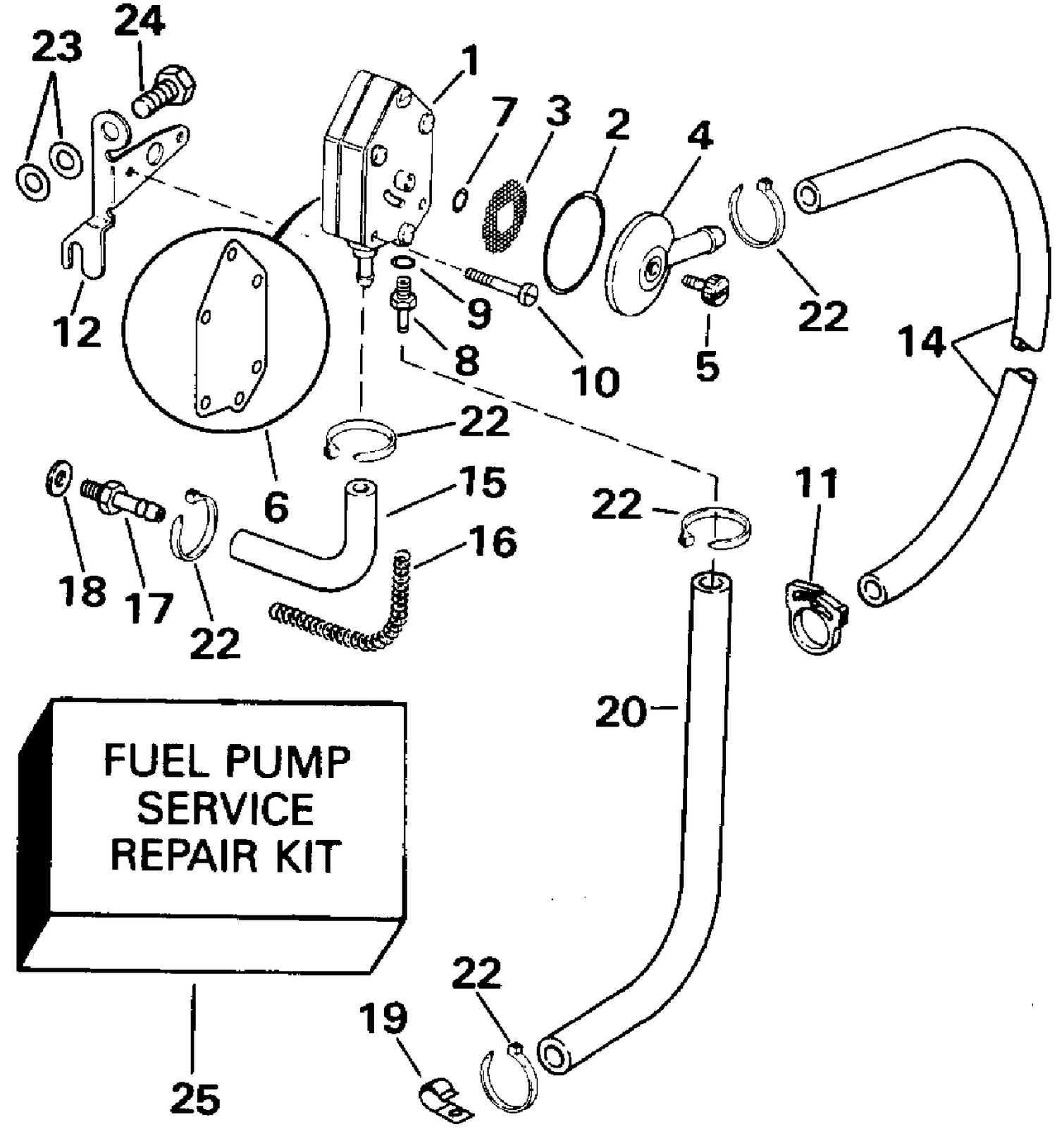

| Ref | Part Number | Description |
|---|
| 1 |
0433517 |
FUEL PUMP ASSY |
| 10 |
0330184 |
VIS, montage pompe |
| 12 |
0333734 |
BRACKET, Fuel pump |
| 14 |
0333380 |
HOSE, Connector to pump |
| 15 |
HOSE, |
Fuel pump pulse 22 in. (559mm) |
| 16 |
0335215 |
SPRING, Hose, pulse nipple to fuel pump |
| 17 |
0329613 |
FITTING, Fuel pump |
| 18 |
0303107 |
RONDELLE NYLON, barre |
| 19 |
0330151 |
CLAMP, Harness to oil tank boss |
| 20 |
HOSE, |
Fuel pump to carb., 24 in. (609mm) |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
0305486 |
WASHER |
| 0431960 |
0431960 |
FUEL PIMP KIT |
