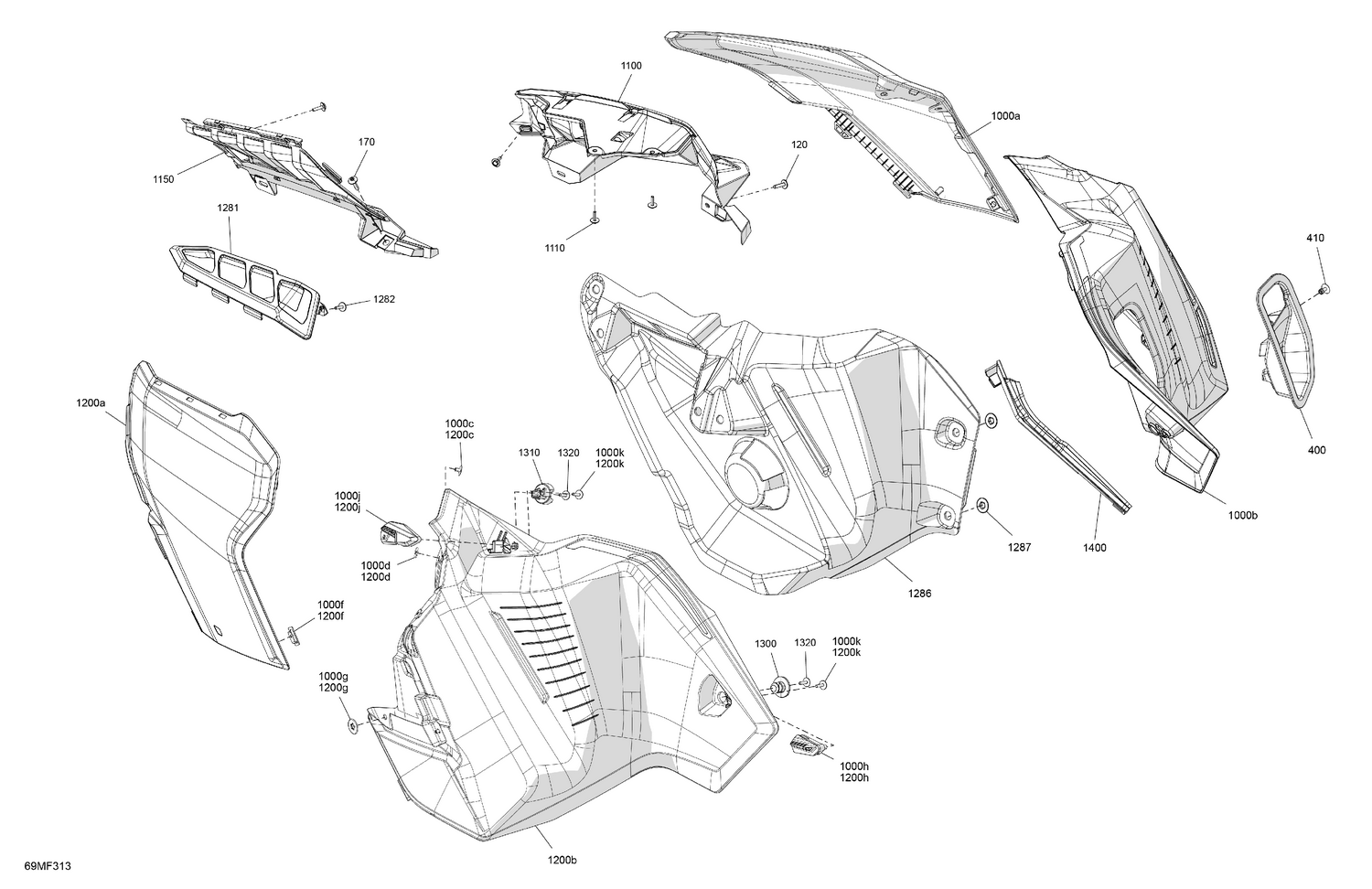

07- Body - Side Panels
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 400 | 517306302 | Reverse Lever Trim |
| 410 | 293150123 | Pop Rivet 3/16" |
| 1000a | 517309205 | Monument Gray, RH Front Panel |
| 1000b | 517306293 | RH Rear panel |
| 1000c | 293150104 | Pop Rivet 3/16" |
| 1000d | 517124300 | Washer |
| 1000f | 517305109 | Rivet Plate |
| 1000g | 508000853 | Push Nut |
| 1000h | 517305773 | RH Rear Latch |
| 1000j | 517305979 | RH Front Latch |
| 1000k | 250000725 | Screw M4 X 16 |
| 1100 | 517308651 | RH Hood Grille |
| 1110 | 250000725 | Screw M4 X 16 |
| 1150 | 517308650 | LH Hood Trim |
| 1200a | 517309781 | Monument Gray, LH Front Panel |
| 1200b | 517309777 | Deep Black, LH Rear Panel |
| 1200c | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1200d | 517124300 | Washer |
| 1200f | 517305109 | Rivet Plate |
| 1200g | 250100158 | Push Nut |
| 1200h | 517305774 | LH Rear Latch |
| 1200j | 517305980 | LH Front Latch |
| 1200k | 250000725 | Screw M4 X 16 |
| 1281 | 517309770 | LH Panel Grille |
| 1282 | 250000725 | Screw M4 X 16 |
| 1286 | 517308600 | LH Acoustic Panel |
| 1287 | 508000853 | Push Nut |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
