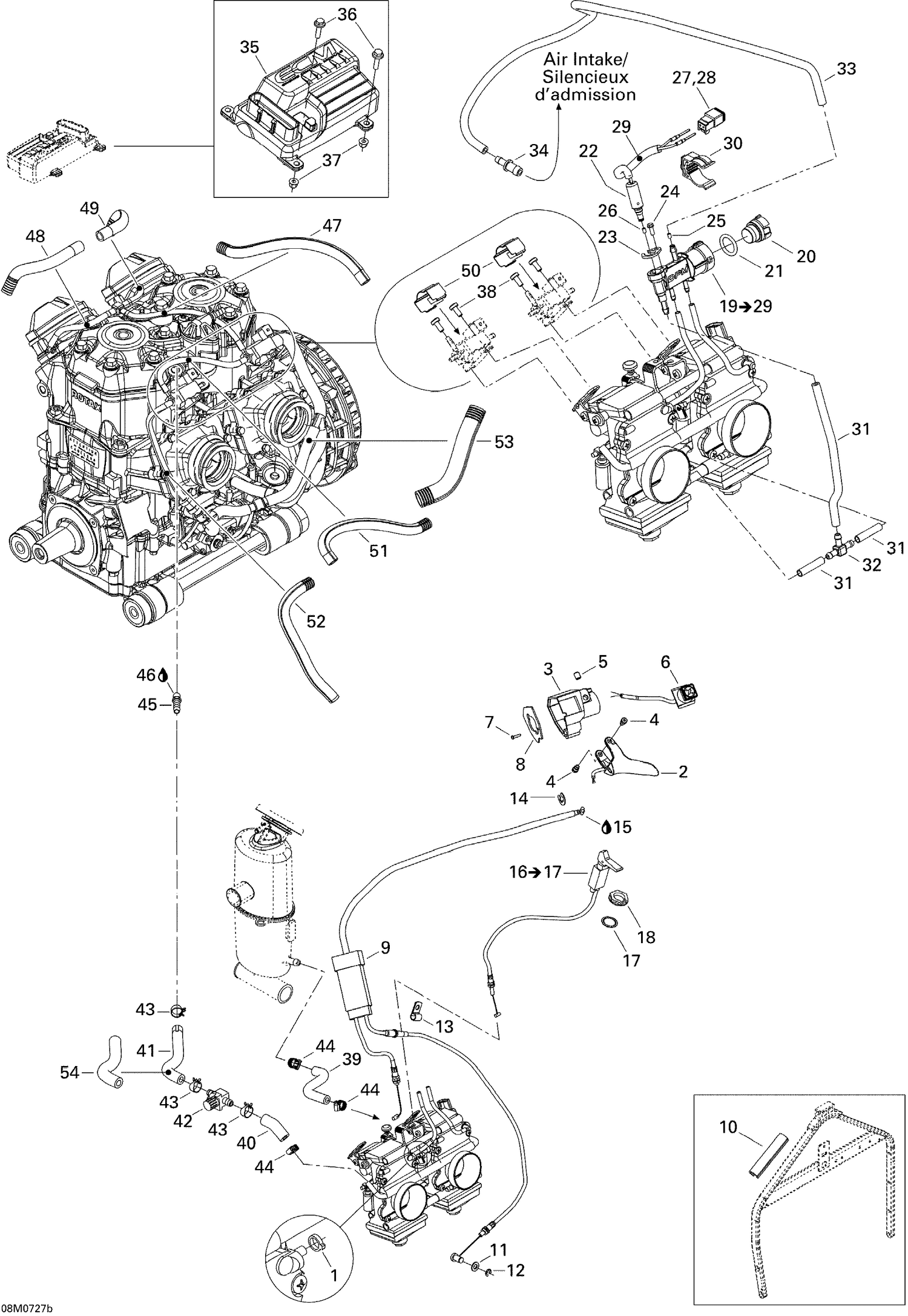

| Ref | Part Number | Description |
|---|
| 1 |
293750001 |
Tie Wrap 94 mm |
| 2 |
512060484 |
Throttle Handle Ass'y This part replaces 512060202. |
| 3 |
512060603 |
Throttle Housing This part replaces 512060200. |
| 4 |
732601143 |
Flange Screw |
| 5 |
414440800 |
Socket Set Screw M8 X 10 |
| 6 |
515177362 |
Emergency Stop Switch This part replaces 515176091. |
| 7 |
250000265 |
TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 8 |
512060390 |
Plate This part replaces 512059507. |
| 9 |
512060088 |
THROTTLE CABLE - Call your local BRP dealership |
| 10 |
512059750 |
PROTECTOR - Call your local BRP dealership |
| 11 |
234081100 |
Flat Washer 8 mm, Nylon |
| 12 |
414753500 |
Circlip |
| 13 |
293750042 |
TIE CLAMP - Call your local BRP dealership |
| 14 |
414274500 |
Circlip |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
394103300 |
Lock Washer, Interior Teeth |
| 18 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 20 |
270600009 |
CAP - Call your local BRP dealership |
| 21 |
293300042 |
O-RING - Call your local BRP dealership |
| 22 |
515175701 |
PRESSURE MANIFOLD HARNESS - Call your local BRP dealership |
| 23 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 24 |
241140060 |
Screw K40 X 10 |
| 25 |
Not |
Available As Spare Part - Starter Jet |
| 26 |
404161825 |
STARTER JET - Call your local BRP dealership |
| 27 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 28 |
515175675 |
Female Lock, 2 Circuits |
| 29 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 30 |
512058919 |
SUPPORT - Call your local BRP dealership |
| 31 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 32 |
414729300 |
T-FITTING - Call your local BRP dealership |
| 33 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 34 |
293710035 |
Straight Fitting |
| 35 |
512060226 |
CALIBRATED MODULE - Call your local BRP dealership |
| 36 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 37 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 38 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 39 |
509000171 |
FORMED HOSE - Call your local BRP dealership |
| 40 |
219704420 |
Was 509000407 Hose 8 mm |
| 41 |
512060185 |
FORMED HOSE - Call your local BRP dealership |
| 42 |
512059324 |
Valve 5/16” |
| 43 |
414655700 |
Spring Clamp |
| 44 |
293650170 |
Tridon Gear Clamp |
| 45 |
512060196 |
Male Connector 1/8"-27 NPT |
| 46 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 47 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 48 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 49 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 50 |
512059809 |
Heating Element Bracket |
| 51 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 52 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 53 |
219704400 |
Was 409901800 Tubing (13 mm) |
