Home / BRP / 2016 / Xtrim / Xtrim SC (2-Stroke), 2016 000SDGA00 000SDGD00 / 07- Ski Shocks

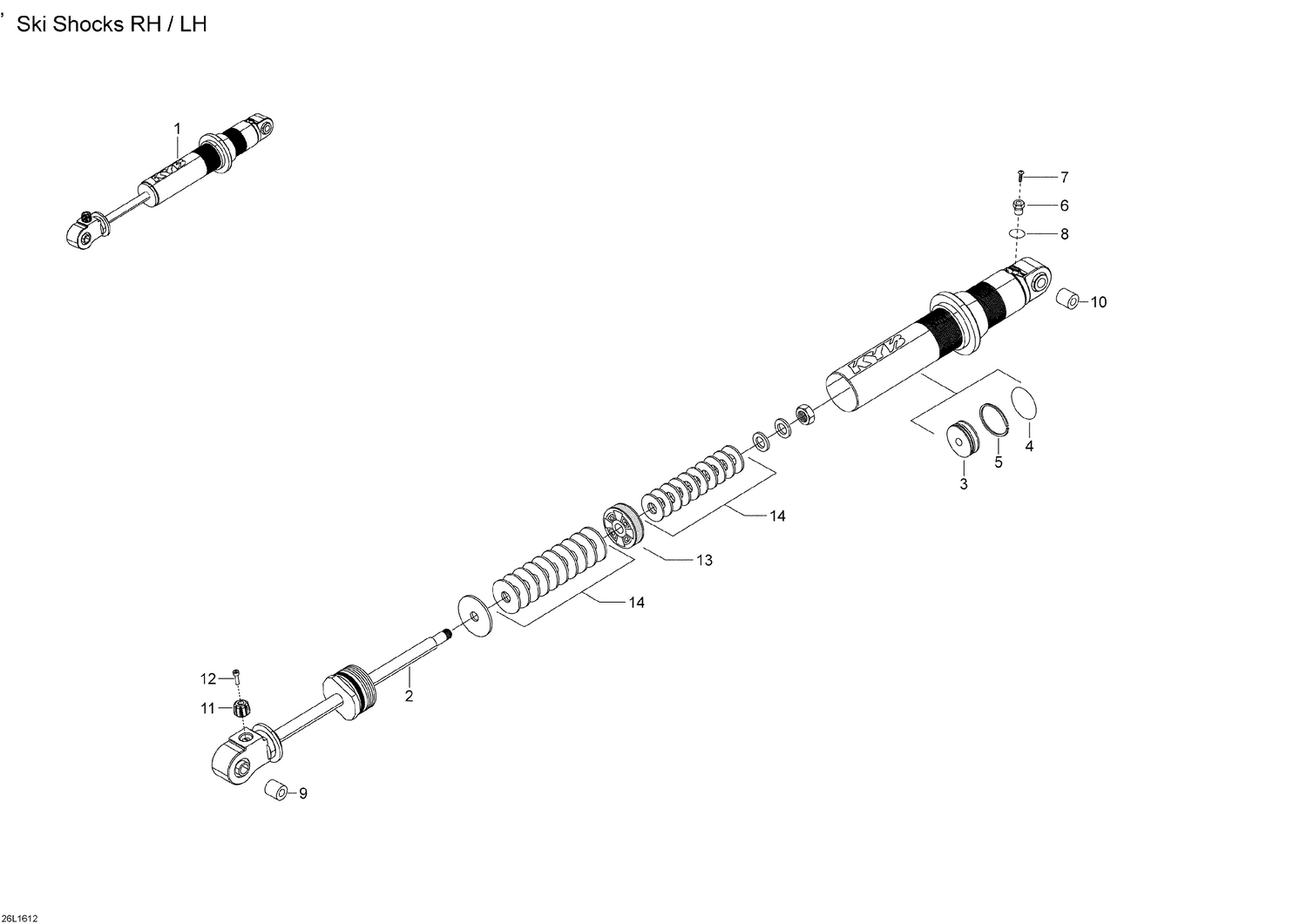

07- Ski Shocks

07- Ski Shocks

Parts (77)

RefPart NumberDescription
1 505073456 Shock
2 Not Available As Spare Part - Rod Ass´y
3 Not Available As Spare Part - Floating Piston
4 414888312 O-Ring
5 503189308 Piston Ring
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 230055 Rubber Bush
10 619300028 Rubber Bush
11 505072753 Adjustment Knob
12 250000644 Allen Screw M3 X 0.5 X 10
13 415128848 Piston 36 mm, 1 x 0,3 Slits
13 619300071 Piston 36 mm, 3 x 0,3 Slits
13 619300108 Piston 36 mm, 0 x 0,3 Slits
13 619300109 Piston 36 mm, 4 x 0,3 Slits
13 619300110 Piston 36 mm, 6 x 0,3 Slits
13 619300111 Piston 36 mm, 5 x 0,3 Slits
13 619300161 Piston 36 mm, 2 x 0,3 slits
14 230016 Shim 36 mm, 18 x 0,254
14 230017 Shim 36 mm, 20 x 0,254
14 230018 Shim 36 mm, 22 x 0,114
14 230019 Shim 36 mm, 22 x 0,254
14 230021 Shim 36 mm, 24 x 0,114
14 230022 Shim 36 mm, 24 x 0,152
14 230023 Shim 36 mm, 24 x 0,203
14 230024 Shim 36 mm, 26 x 0,114
14 230025 Shim 36 mm, 28 x 0,114
14 230026 Shim 36 mm, 28 x 0,254
14 619300058 Shim 36 mm, 17 x 0,254
14 619300068 Shim 36 mm, 18 x 0,114
14 619300075 Shim 36 mm, 12 x 0,152
14 619300076 Shim 36 mm, 13 x 0,114
14 619300077 Shim 36 mm, 13 x 0,152
14 619300078 Shim 36 mm, 13 x 0,203
14 619300079 Shim 36 mm, 13 x 0,254
14 619300080 Shim 36 mm, 14 x 0,114
14 619300081 Shim 36 mm, 14 x 0,152
14 619300082 Shim 36 mm, 14 x 0,203
14 619300083 Shim 36 mm. 14 X 0,254
14 619300084 Shim 36 mm, 16 x 0,114
14 619300085 Shim 36 mm, 17 x 0,114
14 619300086 Shim 36 mm, 17 x 0,152
14 619300087 Shim 36 mm, 17 x 0,203
14 619300088 Shim 36 mm, 19 x 0,114
14 619300089 Shim 36 mm, 19 x 0,152
14 619300090 Shim 36 mm, 19 x 0,203
14 619300091 Shim 36 mm, 19 x 0,254
14 619300092 Shim 36 mm, 21 x 0,152
14 619300093 Shim 36 mm, 21 x 0,203
14 619300094 Shim 36 mm, 21 x 0,254
14 619300095 Shim 36 mm, 24 x 0,254
14 619300096 Shim 36 mm, 28 x 0,152
14 619300098 Shim 36 mm, 22 x 0,203
14 619300099 Shim 36 mm, 26 x 0,254
14 619300102 Shim 36 mm, 28 x 0,203
14 619300114 Shim 36 mm, 16 x 0,152
14 619300115 Shim 36 mm, 15 x 0,152
14 619300116 Shim 36 mm, 16 x 0,254
14 619300117 Shim 36 mm, 12 x 0,203
14 619300118 Shim 36 mm, 15 x 0,254
14 619300119 Shim 36 mm, 16 x 0,203
14 619300120 Shim 36 mm, 12 x 0,254
14 619300121 Shim 36 mm, 15 x 0,114
14 619300122 Shim 36 mm, 15 x 0,203
14 619300123 Shim 36 mm, 18 x 0,152
14 619300124 Shim 36 mm, 18 x 0,203
14 619300125 Shim 36 mm, 20 x 0,114
14 619300126 Shim 36 mm, 20 x 0,152
14 619300127 Shim 36 mm, 20 x 0,203
14 619300128 Shim 36 mm, 21 x 0,114
14 619300129 Shim 36 mm, 22 x 0,152
14 619300130 Shim 36 mm, 26 x 0,152
14 619300131 Shim 36 mm, 26 x 0,203
14 619300132 Shim 36 mm, 30 x 0,203
14 619300162 Shim 36 mm, 12 x 0,114
14 619300167 Shim 36 mm, 30 x 0,152
