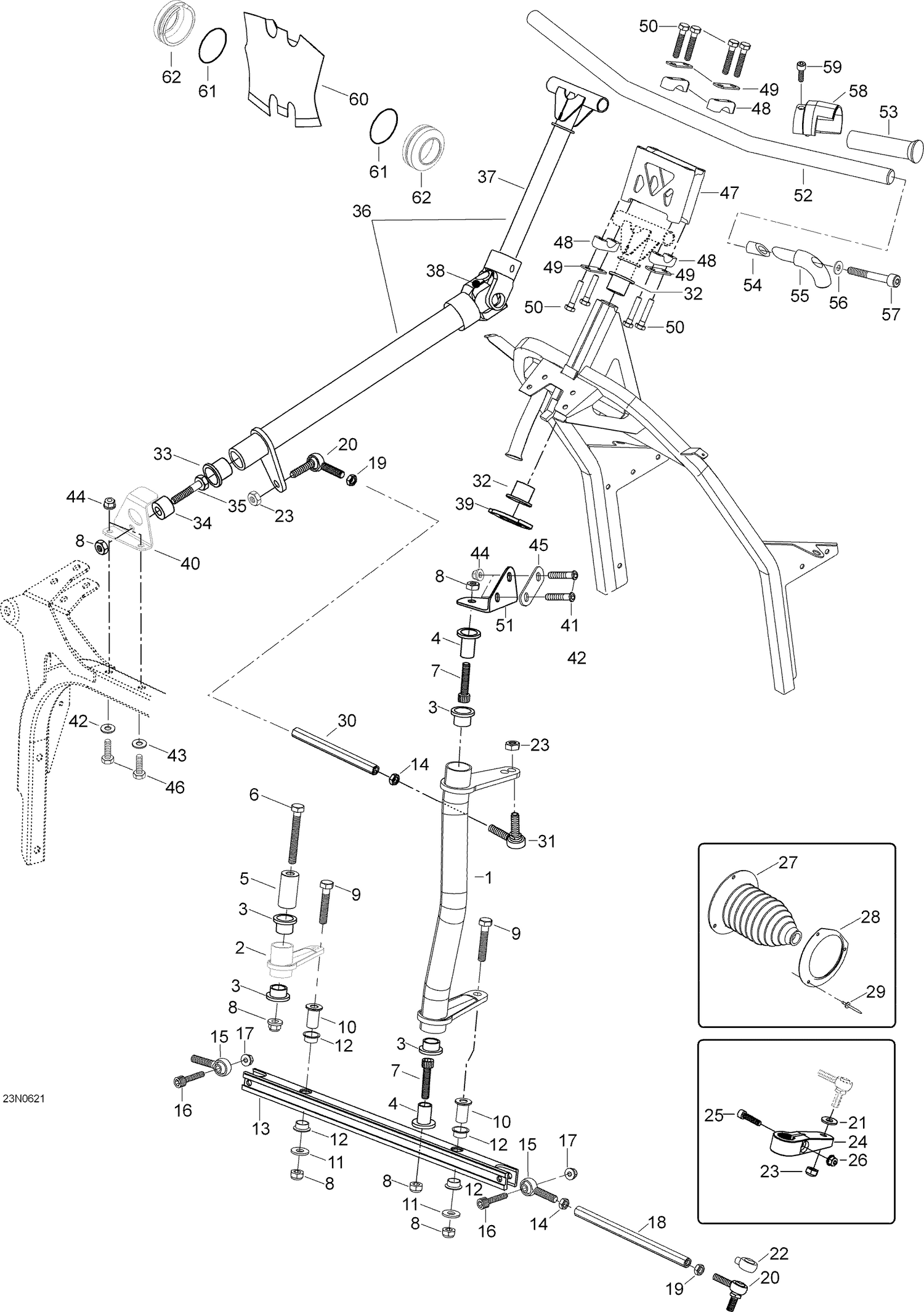

07- Steering System
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605353389 | L.H. swivel arm |
| 2 | 605353644 | R.H. swivel arm |
| 3 | 31028 | Cushion |
| 4 | 605453388 | Bushing |
| 5 | 605453646 | Sleeve |
| 6 | 40021 | Hex. screw M10 x 70 |
| 7 | 40016 | Socket head screw M10 x 45 |
| 8 | 33012 | Elastic stop nut M10 |
| 9 | 40017 | Hex. screw M10 x 55 |
| 10 | 506147300 | BAR PIVOT - Call your local BRP dealership |
| 11 | 20028 | Washer 10.5mm |
| 12 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 13 | 605349868 | Bar-swivel |
| 14 | 250100016 | LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 15 | 506151496 | LH BALL JOINT - Call your local BRP dealership |
| 16 | 40395 | Socket head screw M8 x 35 |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 | 605349865 | Tie-rod |
| 19 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 20 | 506151491 | R.H. Joint ball |
| 21 | 20105 | Washer, hardened M10 |
| 22 | 506151650 | PROTECTION CAP - Call your local BRP dealership |
| 23 | 33023 | Elastic stop nut M10 |
| 24 | 506144800 | R.H. steering arm |
| 24 | 506144900 | L.H. steering arm |
| 25 | 40843 | Socket head screw M8 x 35 |
| 26 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 27 | 605252101 | Tie-rod cap |
| 28 | 605351469 | Retainer ring |
| 29 | 36009 | Rivet |
| 30 | 605353561 | Tie-rod |
| 31 | 506151845 | LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 32 | 31028 | Cushion |
| 33 | 505070003 | Sleeve |
| 34 | 605453387 | Sleeve |
| 35 | 40014 | Socket head screw M10 x 40 |
| 37 | 605351995 | Main tube, upper part |
| 38 | 605352441 | Cross kit |
| 40 | 605352600 | Bracket |
| 41 | 40392 | Socket head screw M8 x 45 |
| 42 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 43 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 44 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 45 | 605454048 | Support plate |
| 46 | 207084544 | Hex. Screw M8 X 45 This part replaces 40008. |
| 47 | 506151413 | Extension |
| 48 | 709400919 | Steering Support This part replaces 506151622. |
| 49 | 709400509 | Stiffner This part replaces 506151196. |
| 50 | 250000074 | Screw M8 x 40 |
| 51 | 605451772 | Support bracket |
| 52 | 605253554 | Handle bar |
| 53 | 506151566 | ADAPTATOR - Call your local BRP dealership |
| 53 | 5340464 | Grip |
| 54 | 506151827 | LOCK WEDGE - Call your local BRP dealership |
| 55 | 506151825 | SHORT J-HOOK - Call your local BRP dealership |
| 56 | 250200039 | Flat Washer |
| 57 | 207067084 | HEX. SCREW M6 X 70 - Call your local BRP dealership |
| 58 | 506151566 | ADAPTATOR - Call your local BRP dealership |
| 59 | 40390 | Screw M8 x 20 |
| 60 | 605354057 | Cap |
| 61 | 12402 | O-ring |
