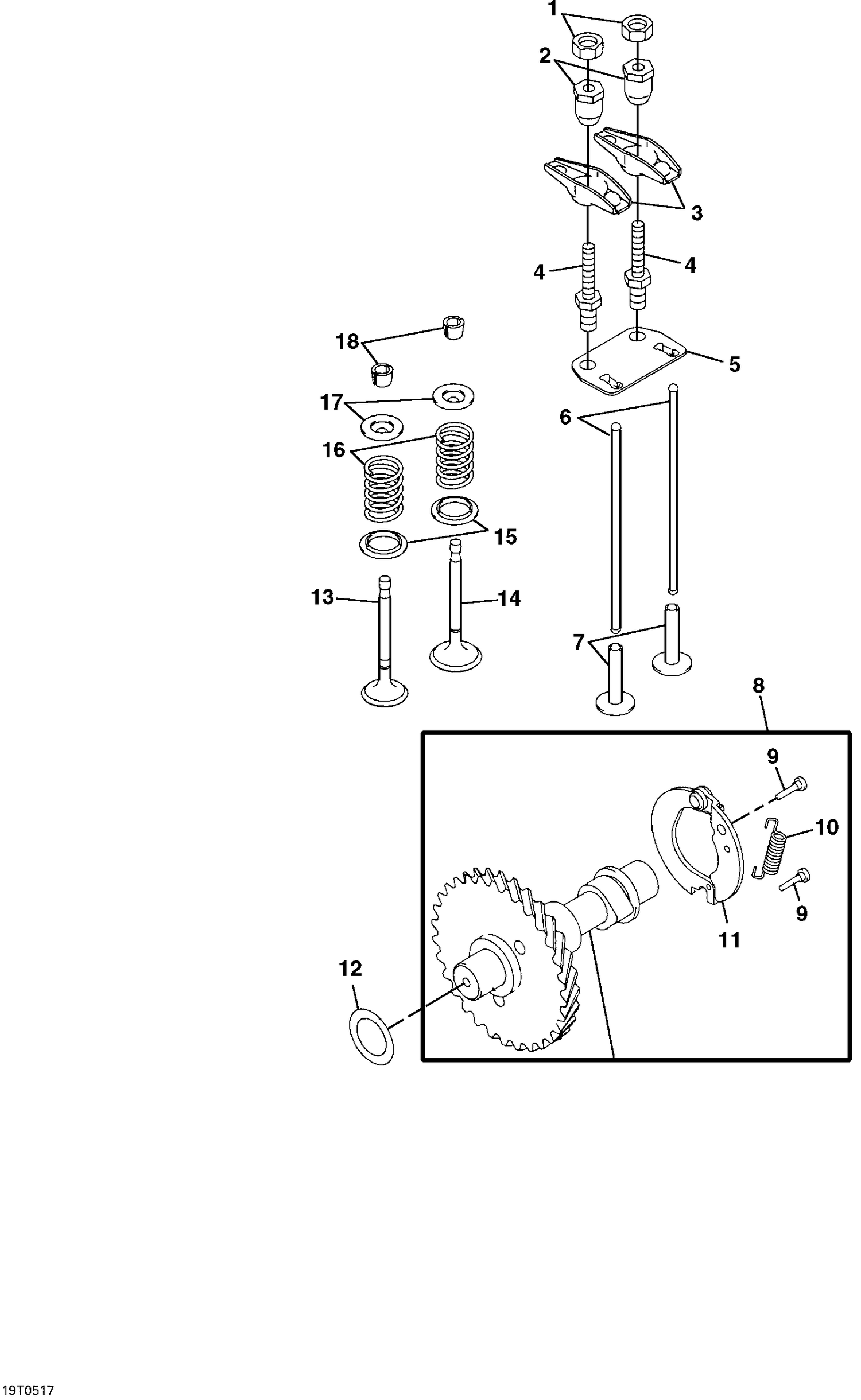

01- Camshaft, Valve
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DM77603 | Nut |
| 2 | DM92891 | Rocker Arm Nut |
| 3 | DUP04739 | Rocker Arm |
| 4 | DPT18351 | Rocker Arm Bolt |
| 5 | DUP04754 | Guide |
| 6 | DUP04755 | Push Rod |
| 7 | DM70213 | Tappet |
| 9 | DM70043 | Pin |
| 10 | DM70044 | Spring |
| 11 | DUP04719 | Decompressor |
| 12 | DM150008 | Shim |
| 12 | DUP04769 | Shim .20mm (.007") |
| 12 | DUP04770 | Exhaust Shim |
| 12 | DUP04771 | Intake Shim |
| 13 | DUP04737 | Exhaust Valve |
| 14 | DUP04736 | Intake Valve |
| 15 | DUP04759 | Plate |
| 16 | DUP04729 | SPRING VALVE - Call your local BRP dealership |
| 17 | DUP04738 | Retainer |
