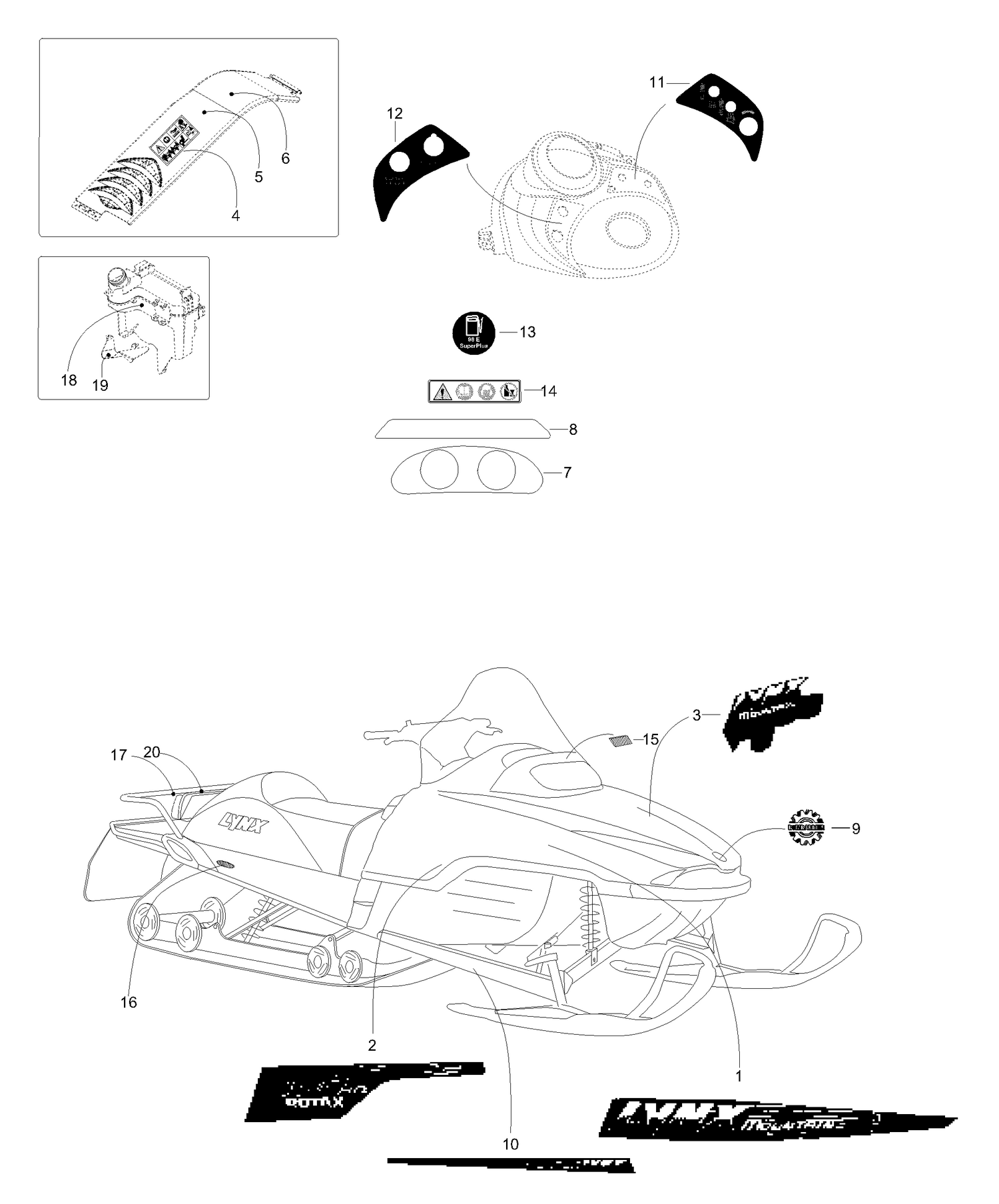

09- Decals
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605349703 | R.H. Hood decal, upper |
| 1 | 605349704 | L.H. Hood decal, upper |
| 2 | 605349705 | R.H. lower decal, hood |
| 2 | 605349706 | L.H. lower decal, hood |
| 3 | 605349709 | Hood decal, front |
| 4 | 605448801 | Instruction symbol decal |
| 5 | 5447014 | Pulley decal |
| 6 | 5447012 | Oil check decal |
| 7 | 605248800 | Control panel decal |
| 8 | 5346800 | Instruction decal |
| 9 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 10 | 605349707 | R.H. Decal, swing arm |
| 10 | 605349708 | L.H. Decal, swing arm |
| 11 | 605448798 | Grip heater decal/RER |
| 12 | 5446931 | Decal, DESS |
| 13 | 5447019 | Fuel label |
| 14 | 5447124 | Instruction symbol decal |
| 15 | 21060 | Reflector, bright |
| 16 | 21135 | Reflector, yellow |
| 17 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 18 | 605449628 | Label, oil level |
| 19 | 605449565 | Instruction label |
