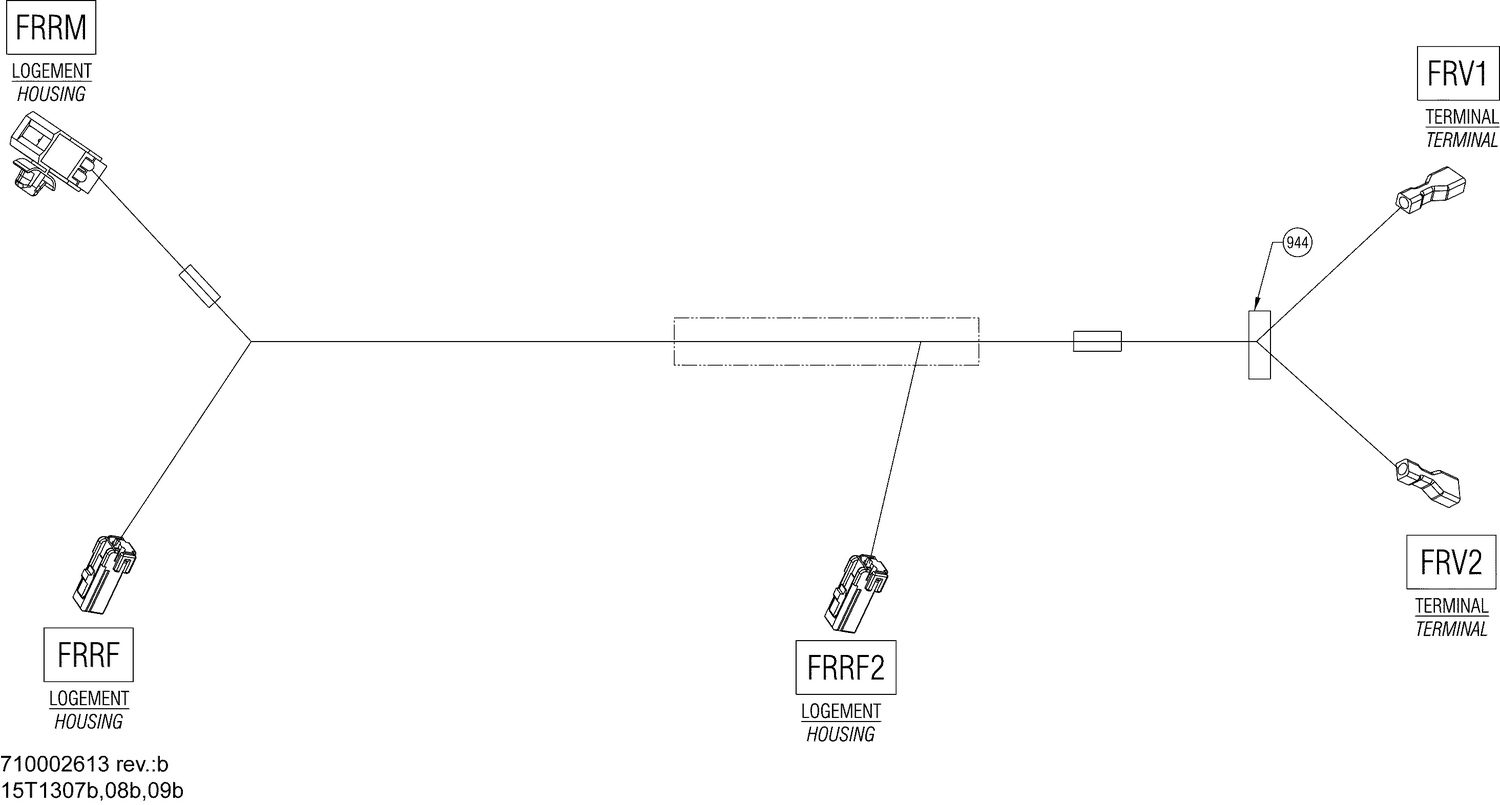

10- Electrical Harness Brake
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| FRRF | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| FRRF | 515175231 | Female Terminal |
| FRRF | 515175658 | Female Housing, 2 Circuits |
| FRRF2 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| FRRF2 | 515175231 | Female Terminal |
| FRRF2 | 515175658 | Female Housing, 2 Circuits |
| FRRM | 515175232 | Male Terminal |
| FRRM | 710000667 | Male Housing, 2 Circuits |
| FRV1 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| FRV1 | 710000082 | Female Terminal |
| FRV2 | 710000082 | Female Terminal |
| 1 | 710004324 | Brake Harness This part replaces 710002613. |
| 944 | 710001350 | CAP - Call your local BRP dealership |
