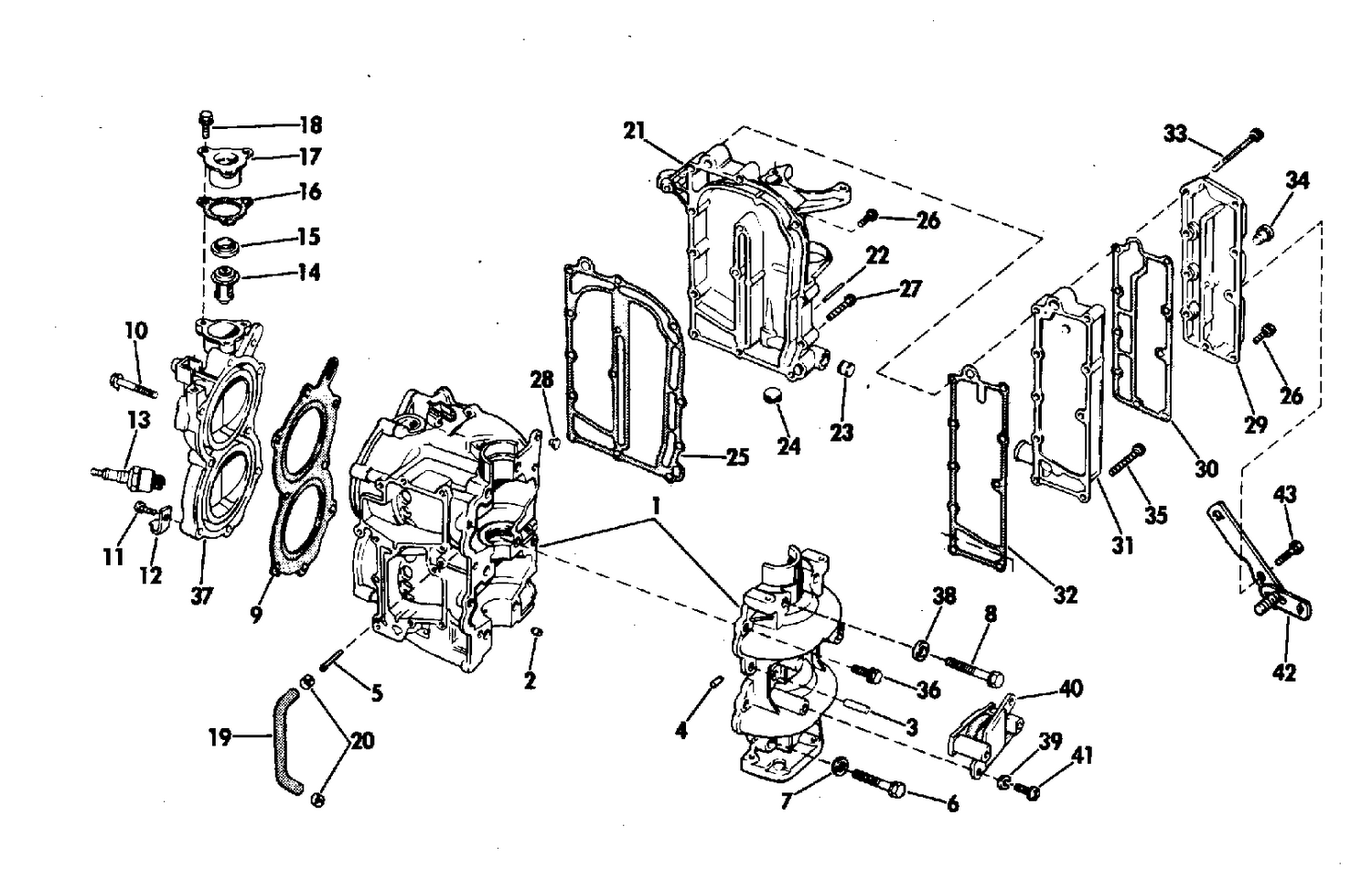

| Ref | Part Number | Description |
|---|
| 1 |
0382805 |
CYLINDER & C'CASE ASSY |
| 2 |
0302037 |
DOWEL, Bearing |
| 5 |
0314197 |
NIPPLE |
| 6 |
0304055 |
SCREW |
| 7 |
0306453 |
LOCKWASHER, Fuel pump |
| 8 |
0306423 |
BOLT |
| 9 |
0309612 |
GASKET, Clylinder head |
| 10 |
0308728 |
SCREW |
| 11 |
0306831 |
BATTERY CABLE ASSY. |
| 12 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 13 |
0378101 |
SPARK PLUB, Champion j4j |
| 13 |
0378320 |
SPARK PLUG, AC - M42K |
| 14 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 15 |
0310058 |
GASKET, Thermostat |
| 16 |
0309580 |
GASKET, Thermostat hsg |
| 17 |
0309581 |
CAP, Thermostat |
| 18 |
0300646 |
VIS, ancrage |
| 19 |
0308506 |
HOSE, Oil line This part replaces 0314173. |
| 20 |
0303473 |
CLAMP, Hose |
| 21 |
0379190 |
EXHAUST COVER ASSY |
| 22 |
0309686 |
ROLL PIN |
| 23 |
0309778 |
PLUG, Exhaust cover |
| 24 |
0309797 |
SCREW PLUG, Cover |
| 25 |
0309709 |
CASKET, Exh. cover to cyl. |
| 26 |
0311750 |
SCREW, Cover 11/16" long |
| 27 |
0311751 |
SCREW, Block to bracket |
| 28 |
0306248 |
BUMBER, High speed stop |
| 29 |
0381829 |
COVER, Exhaust outer |
| 30 |
0309981 |
GASKET, Outer cover |
| 31 |
0309795 |
COVER, Exhaust, intermediate |
| 32 |
0309710 |
GASKET, Intermediate cover |
| 33 |
0311753 |
SCREW, Cover 2-3/8" long |
| 34 |
0309767 |
BUMPER, Cover |
| 35 |
0311752 |
SCREW, Cover 1-5/8" long |
| 37 |
0309609 |
CYLINDER HEAD |
| 38 |
0306453 |
LOCKWASHER, Fuel pump |
| 39 |
0308134 |
LOCKWASHER |
| 40 |
0380963 |
MOUNT, Rubber, upper front |
| 41 |
0300646 |
VIS, ancrage |
| 42 |
0381825 |
VIBRATION DAMPENER ASSEMBLY, Port |
| 43 |
0312903 |
SCREW, Dampener to cover |
