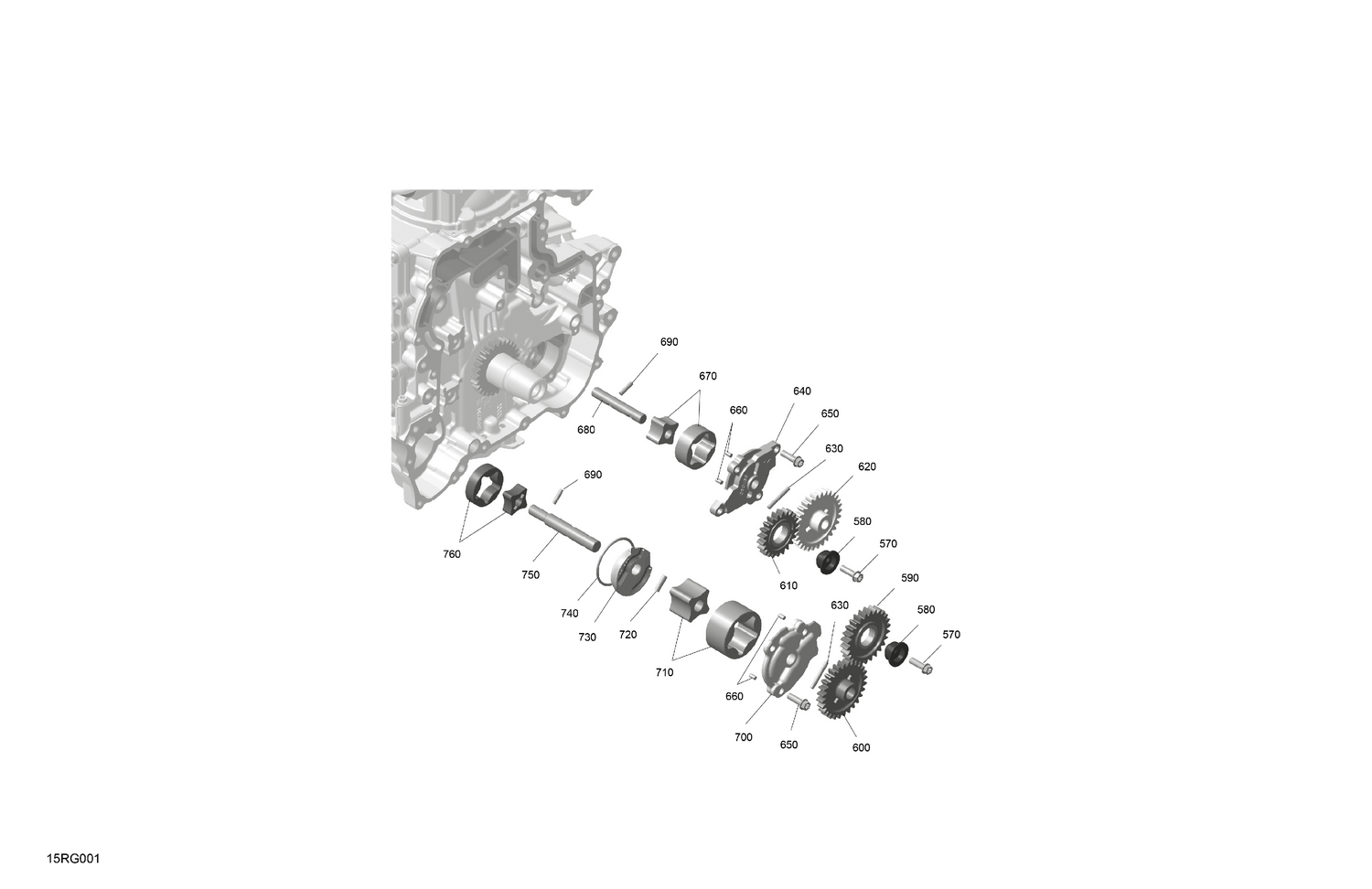

01- ROTAX - Oil Pump
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 570 | 420440207 | Torx Flange Screw M6 X 20 |
| 580 | 420947394 | Spacer |
| 590 | 420835321 | Idle Gear, 26 Teeth |
| 600 | 420834887 | Oil Pump Gear, 28 Teeth |
| 610 | 420835400 | Gear 22 Teeths |
| 620 | 420834882 | Oil Pump Gear, 29 Teeth |
| 630 | 420232432 | Needle Pin |
| 640 | 420911080 | Oil Pump Cover |
| 650 | 420440207 | Torx Flange Screw M6 X 20 |
| 660 | 420929075 | Needle Pin |
| 670 | 420956278 | Oil Pump Rotor |
| 680 | 420820122 | Oil Pump Shaft |
| 690 | 420232732 | Needle Pin |
| 700 | 420611980 | Oil Pump Cover |
| 710 | 420256831 | Oil Pump Rotor |
| 720 | 420632221 | Needle Pin |
| 730 | 420611985 | Oil Pump Cover |
| 740 | 420631830 | O-Ring |
| 750 | 420837917 | Oil Pump Shaft |
