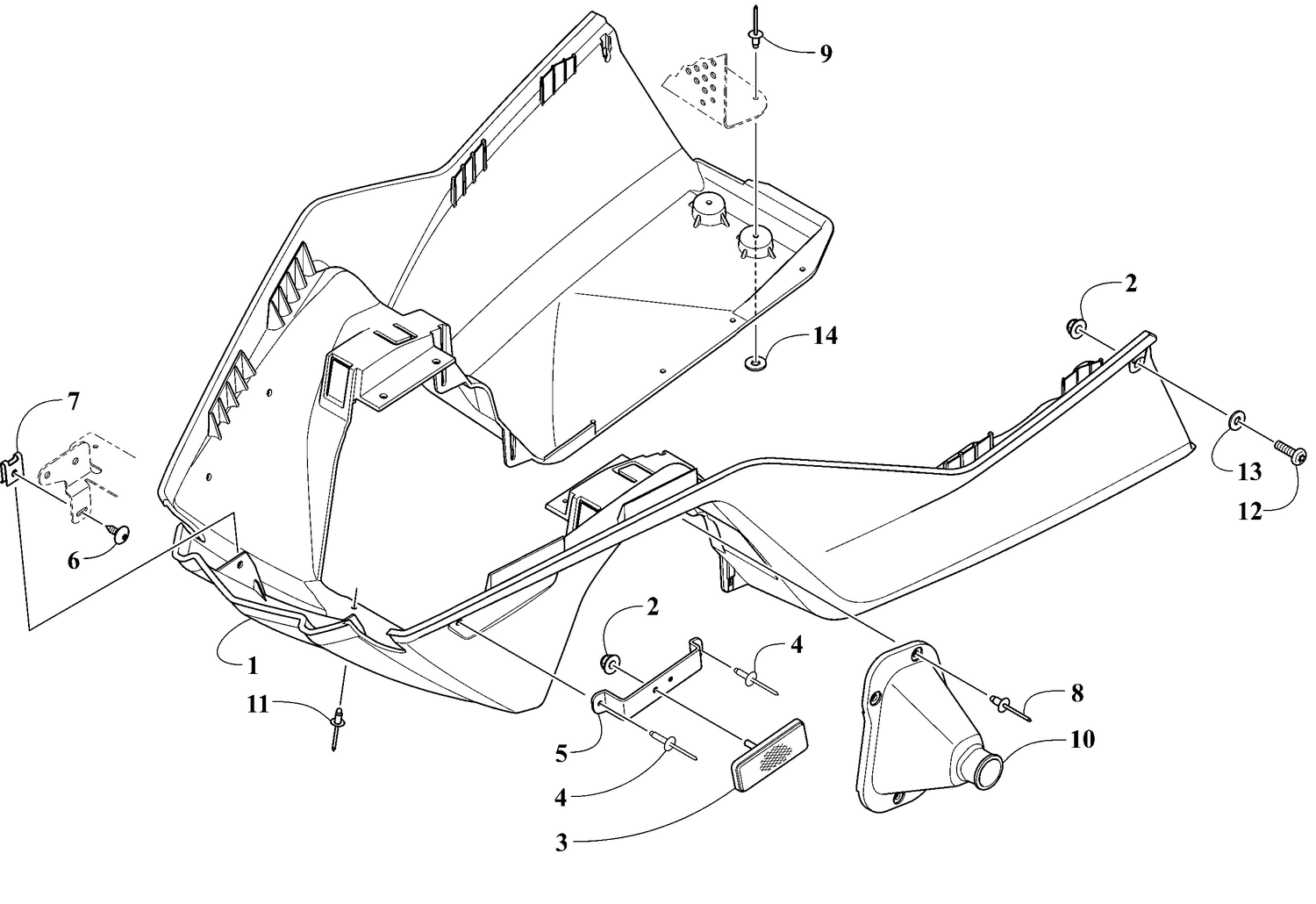

Bottom Pan
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6718-485 | Belly Pan With Reflectors |
| 2 | 8427-502 | Hex Flanged Nut M5X0.8 |
| 3 | 6606-819 | Decal Amber Reflector |
| 4 | 0623-778 | Rivet |
| 5 | 6716-118 | RH Reflector Support |
| 5 | 6716-119 | LH Reflector Support |
| 6 | 2623-166 | Self Tapping Screw |
| 7 | 1623-939 | U Type Nut |
| 8 | 8060-508 | Black, Rivet |
| 9 | 8061-508 | Black, Rivet |
| 10 | 0605-464 | RH Tie Rod Boot |
| 10 | 0605-465 | LH Tie Rod Boot |
| 11 | 8061-506 | Black, Rivet |
| 12 | 8468-535 | Black, Screw M5X0.8X35 |
| 13 | 2623-266 | Washer #10 X.557 |
