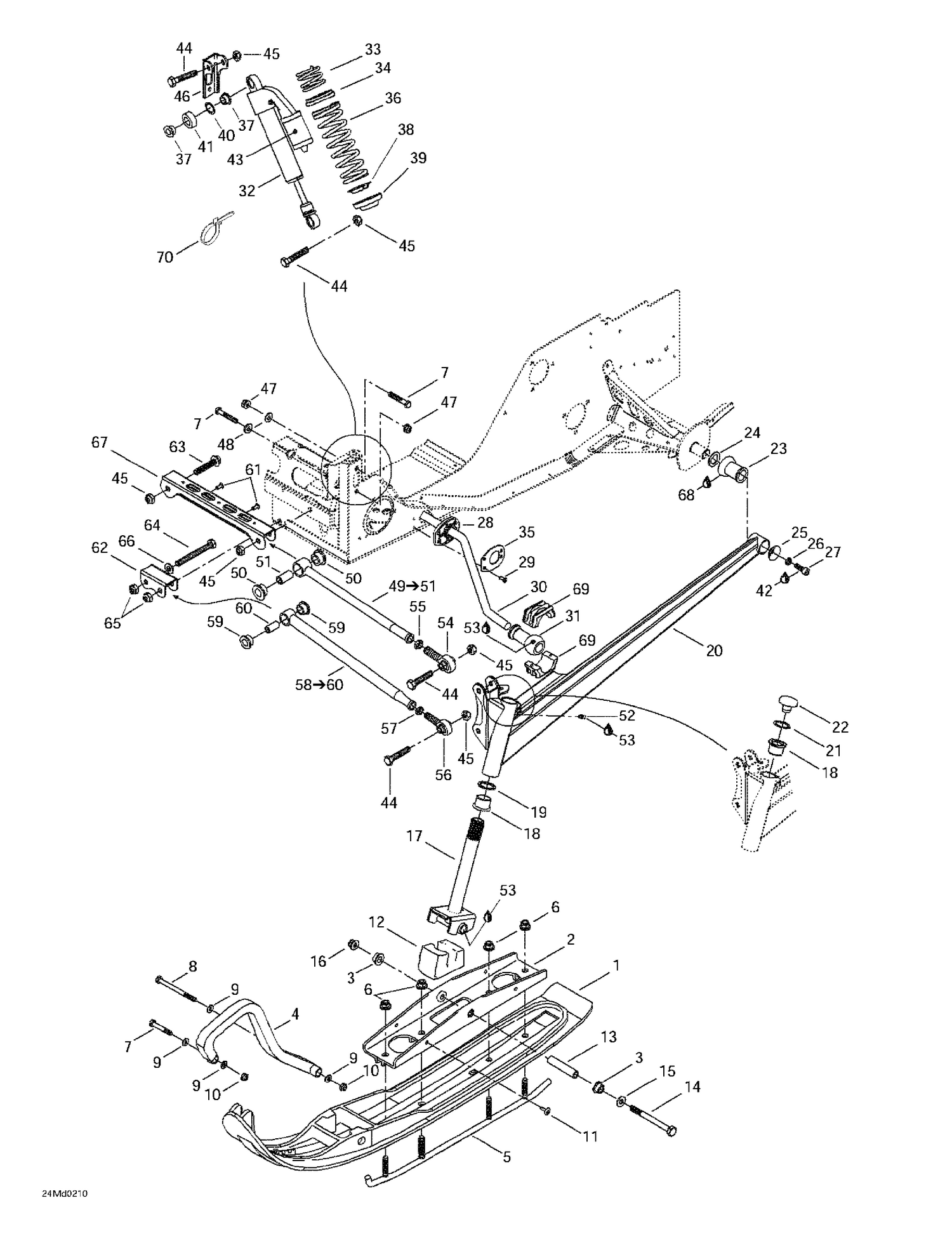

07- Front Suspension And Ski
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505070189 | Ski-Liner Flex |
| 3 | 505070001 | BUSHING - Call your local BRP dealership |
| 4 | 505070963 | Black, Handle This part replaces 572101000. |
| 6 | 233201414 | Hex. Flange Elastic Nut M10 |
| 7 | 207085044 | Hex. Screw M8 X 50 |
| 8 | 230080044 | SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 9 | 234081410 | Flat Washer 8 mm |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 390911100 | RIVET_POP 1/4 - Call your local BRP dealership |
| 12 | 570070400 | Ski Stopper |
| 13 | 506133300 | Spacer |
| 14 | 250000001 | HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 15 | 732900049 | Washer |
| 16 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 17 | 506128100 | Ski Leg |
| 18 | 505070003 | Cushion |
| 19 | 505070004 | WASHER - Call your local BRP dealership |
| 20 | 505070828 | RH Arm |
| 21 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 22 | 572091300 | Cap |
| 23 | 570062200 | DAMPER - Call your local BRP dealership |
| 24 | 503146700 | WASHER - Call your local BRP dealership |
| 25 | 506079600 | CUP - Call your local BRP dealership |
| 26 | 234181401 | Lock Washer 8 mm |
| 27 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 28 | 505070533 | Bushing |
| 29 | 390407200 | Pop Rivet 3/16” |
| 30 | 505070896 | Stabilisator |
| 31 | 505070898 | Ball Joint Block |
| 32 | 505070796 | RH Shock |
| 33 | 505070575 | Spring |
| 34 | 505070538 | SPRING SPACER - Call your local BRP dealership |
| 35 | 505070542 | Plate |
| 36 | 505070941 | SPRING - Call your local BRP dealership |
| 37 | 506120200 | BUSHING - Call your local BRP dealership |
| 38 | 505070915 | Cap |
| 39 | 505070913 | Spring Stopper |
| 40 | 371910600 | INTERIOR CIRCLIP - Call your local BRP dealership |
| 41 | 414562900 | RADIAL BALL-JOINT - Call your local BRP dealership |
| 42 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 43 | 516000183 | Shock Decal |
| 44 | 207005544 | Hex. Screw M10 X 55 |
| 45 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 46 | 505070725 | RH Shock Bracket |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
| 48 | 506151245 | Washer |
| 50 | 506149100 | CUSHION - Call your local BRP dealership |
| 51 | 505070041 | Bushing |
| 52 | 408200700 | Grease Fitting |
| 53 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 54 | 505070818 | Ball Joint |
| 55 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 56 | 505070820 | RH Ball Joint |
| 57 | 232170411 | Hex. Jam Nut M14 |
| 59 | 506149100 | CUSHION - Call your local BRP dealership |
| 60 | 506149200 | Bushing |
| 61 | 390402200 | Pop Rivet 3/16" |
| 62 | 505070290 | Lower Arm Bracket |
| 63 | 207605544 | Hex. Flange Screw M10 X 55 |
| 64 | 230020044 | Hex. Screw M12 x 100 |
| 65 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 66 | 234021410 | Flat Washer 12 mm |
| 67 | 505070010 | Upper Arm Bracket |
| 68 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 69 | 505070817 | SLIDING BLOCK - Call your local BRP dealership |
| 505070726 | LH | Shock Bracket 505070726 |
| 505070797 | Amortisseur | GA 505070797 |
| 505070797 | LH | Shock 505070797 |
| 505070829 | Bras | De Suspension Avant GA 505070829 |
| 505070829 | LH | Arm 505070829 |
