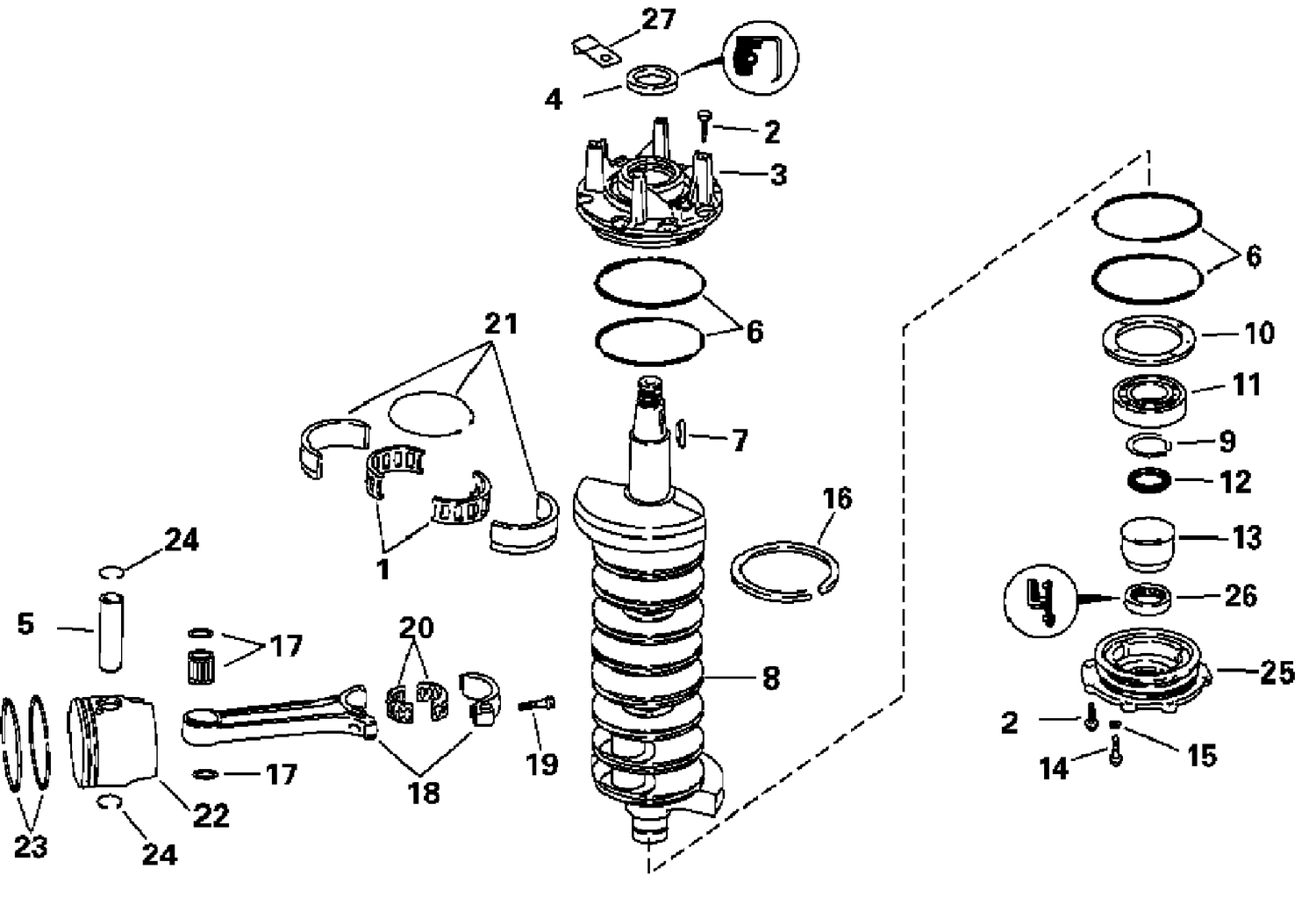

| Ref | Part Number | Description |
|---|
| 1 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 2 |
0344020 |
SCREW, Crankcase head |
| 3 |
5001115 |
HEAD Assembly, Upper |
| 8 |
0434771 |
CRANKSHAFT Assembly |
| 9 |
0326047 |
Retaining Ring |
| 16 |
0326749 |
SEAL RING |
| 17 |
0348495 |
BEARING, Wrist pin |
| 18 |
5009039 |
ROD Assembly, Connecting This part replaces 5000643. |
| 20 |
0396041 |
BEARING, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
5006731 |
Pstn&Rng Kit.020Os This part replaces 5005247. |
| 22 |
5006732 |
Pstn&Rng Kit.020Os This part replaces 5005248. |
| 22 |
5006733 |
Pstn&Rng Kit Std This part replaces 5005243. |
| 22 |
5006734 |
Pstn&Rng Kit This part replaces 5005244. |
| 25 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0434792. |
