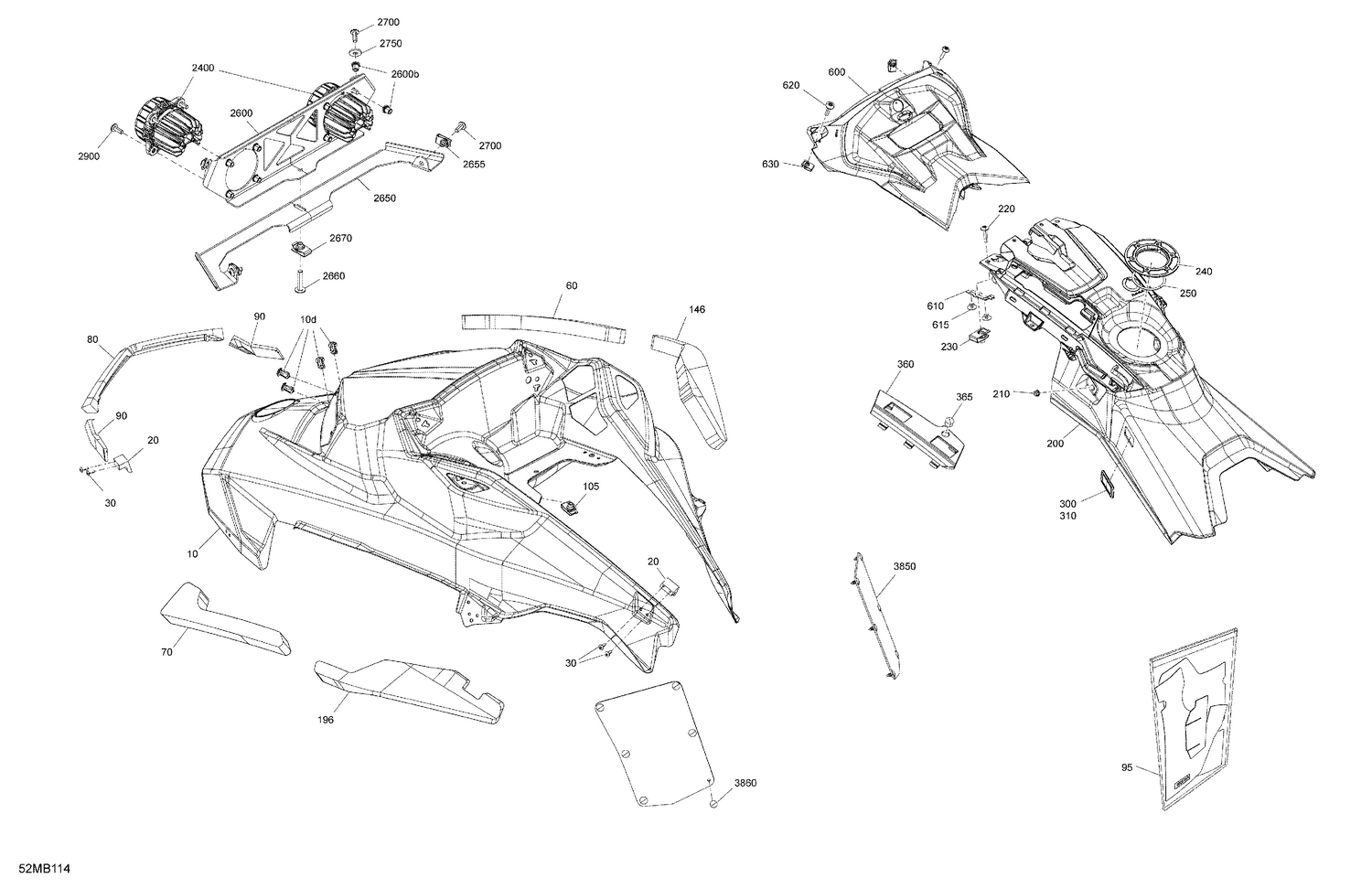

07- Body - Hood
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10d | 293150230 | Tuflok Plastic Rivet |
| 20 | 517307050 | Hook |
| 30 | 250001131 | Torx Truss PT K40 x 12 |
| 60 | 517305763 | RH Front Hood Foam |
| 70 | 517305764 | LH Front Hood Foam |
| 80 | 517306592 | Front Hood Foam |
| 90 | 517306593 | Hood Foam |
| 95 | 517308251 | Foil |
| 105 | 250000958 | Panel Nut M5 X 0.8 |
| 146 | 517306001 | RH Hood Foam |
| 196 | 517306002 | LH Hood Foam |
| 200 | 517307685 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 300 | 517306587 | RH Cap |
| 310 | 517306588 | LH Cap |
| 360 | 517306583 | LH Front Console |
| 365 | 572051500 | Cap |
| 600 | 517305782 | Indicator Support |
| 610 | 517306967 | Hook |
| 615 | 293150103 | Pop Rivet 3/16" |
| 620 | 250000586 | Torx Truss M5 X 20 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 2400 | 517307720 | Headlight Kit |
| 2600b | 293450268 | Insert M5 X 0.8 |
| 2650 | 517307712 | Bracket Ass'y |
| 2655 | 250000958 | Panel Nut M5 X 0.8 |
| 2660 | 250000843 | Torx Truss Screw M6 X 30 |
| 2670 | 250100198 | Panel Nut M6 X 1.0 |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 2750 | 250200024 | Rubber Washer 5 mm |
| 2900 | 250000742 | Torx Screw M5 X 14 |
| 3850 | 517306595 | Panel Plate |
