FUEL TANK

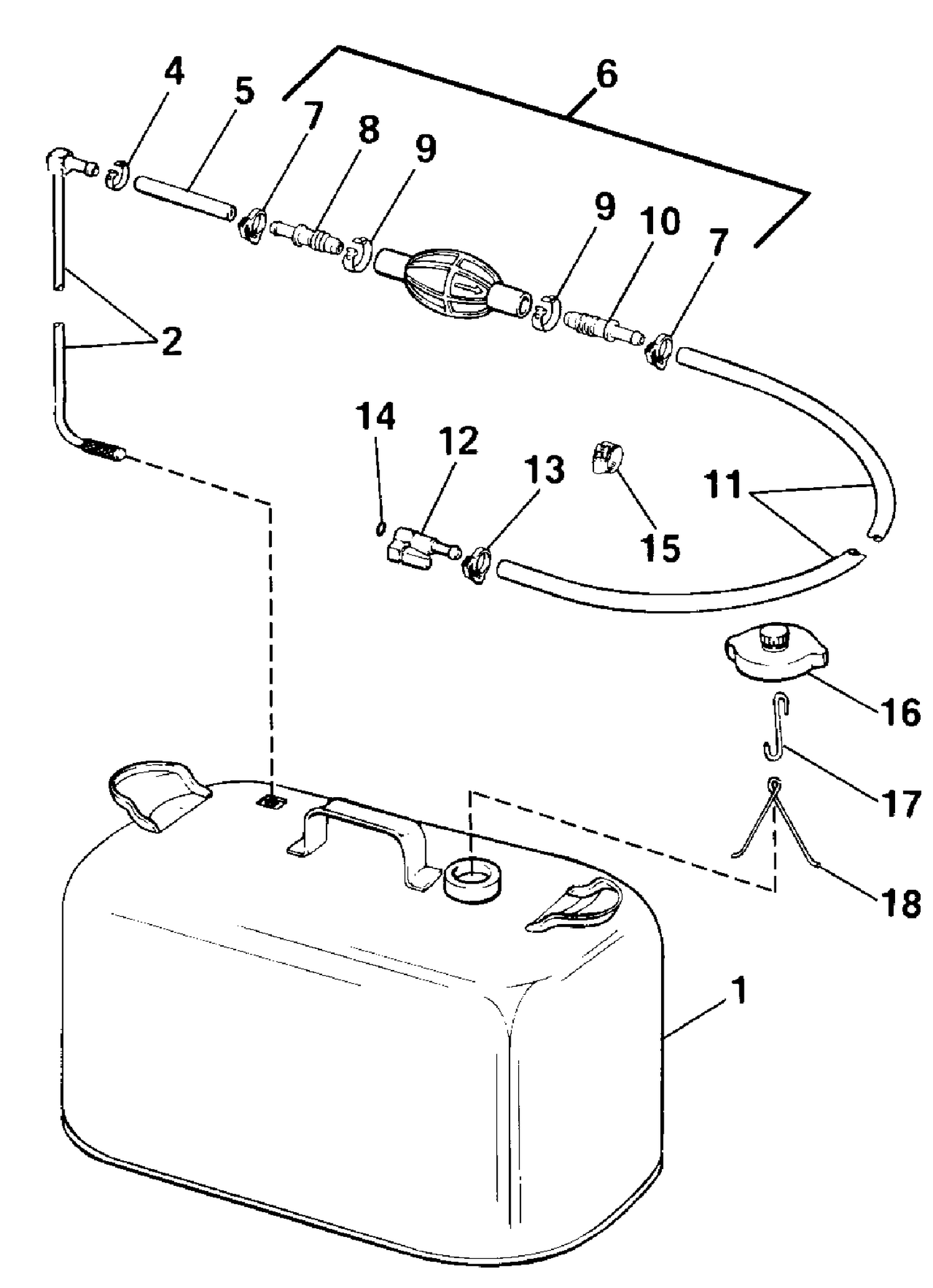

FUEL TANK

Parts (6)

RefPart NumberDescription
1 0397767 FUEL TANK ASSY. WITHOUT GAUGE
2 0397832 FUEL LINE ASSY.
5 HOSE, Short 19 1/2 in. (495mm)
11 HOSE, Long, 99 in. (2515mm)
16 0388933 CAP ASSY., Fuel
0174509 5008607 FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0174509.
