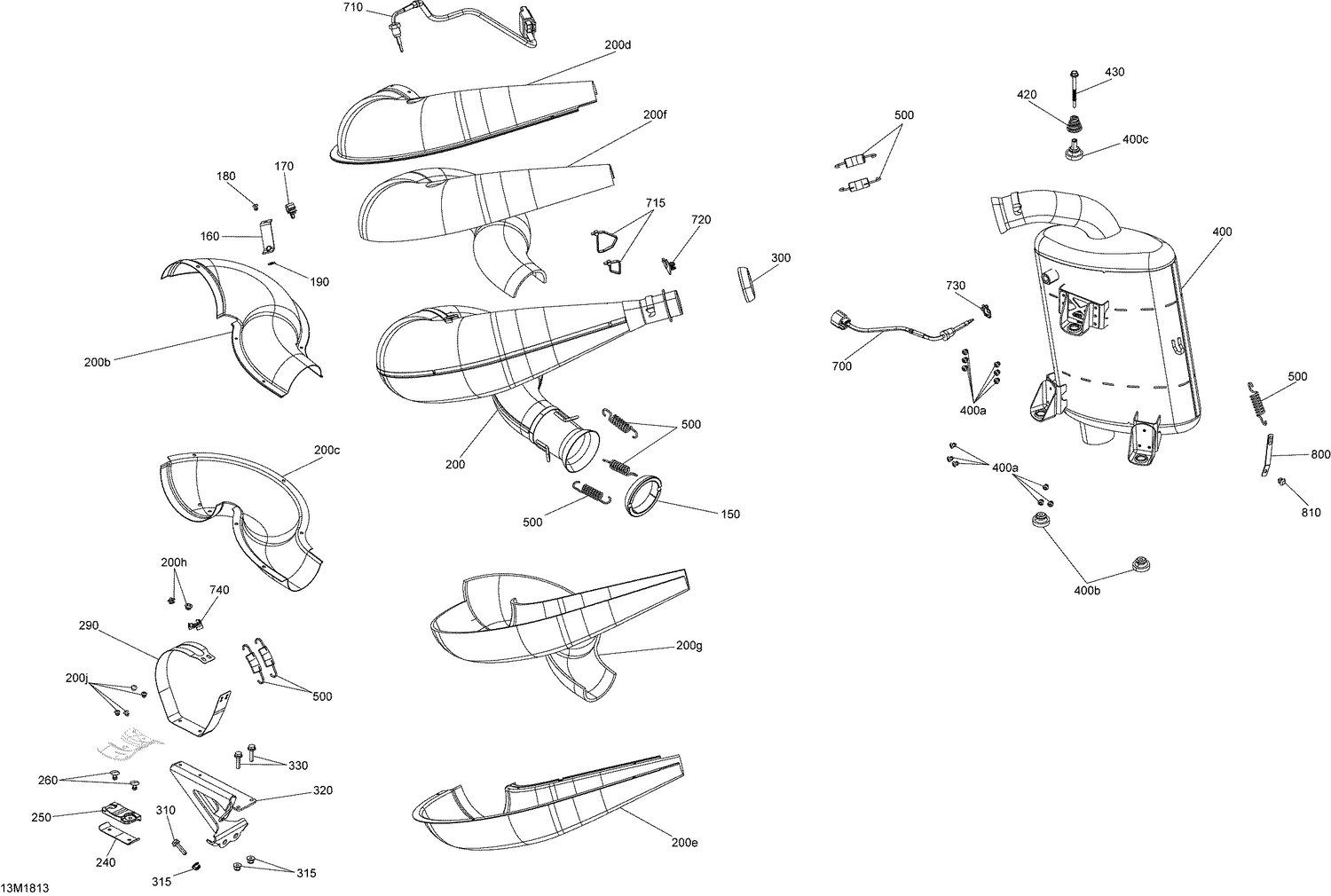

01- Exhaust MXZ RS
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 160 | 514055512 | Support |
| 170 | 515176795 | Tie Rap Mount (screwable) |
| 180 | 390909200 | Avex Rivet |
| 190 | 514055537 | Washer 3/16 |
| 200b | 514055222 | Front Upper Aluminum Shell |
| 200c | 514055223 | Front Lower Aluminum Shell |
| 200d | 514056421 | Rear Upper Shell This part replaces 514055599. |
| 200e | 514055618 | Rear Lower Aluminum Shell This part replaces 514055573. |
| 200f | 514056351 | Glass Wool This part replaces 514055220. |
| 200g | 514055385 | Wool |
| 200h | 390909200 | Avex Rivet |
| 200j | 390909200 | Avex Rivet |
| 240 | 514054638 | Reinforcement Plate |
| 250 | 514054275 | Bumper |
| 260 | 293150103 | Pop Rivet 3/16" |
| 290 | 514055631 | Retaining Strap |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 207662544 | Hex. Flange Screw M6 X 25 |
| 315 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 320 | 514055595 | Welded Support |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 400a | 390909200 | Avex Rivet |
| 400b | 514055203 | Stopper |
| 400c | 514056138 | Stopper Ass'y This part replaces 514055422. |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 500 | 514055198 | Spring |
| 700 | 514055423 | Temperature Sensor |
| 710 | 515178170 | Module |
| 715 | 414115200 | Tie-Rap 180 mm |
| 720 | 514055393 | Support |
| 730 | 514055100 | Tab Lock |
| 740 | 514055704 | Tab Lock This part replaces 514055604. |
| 800 | 514055644 | Spring Bracket |
