Home / BRP / 2010 / MX Z / MX Z X 800R ETEC, 2010 000MZAB00 000MZAC00 / 01- Engine

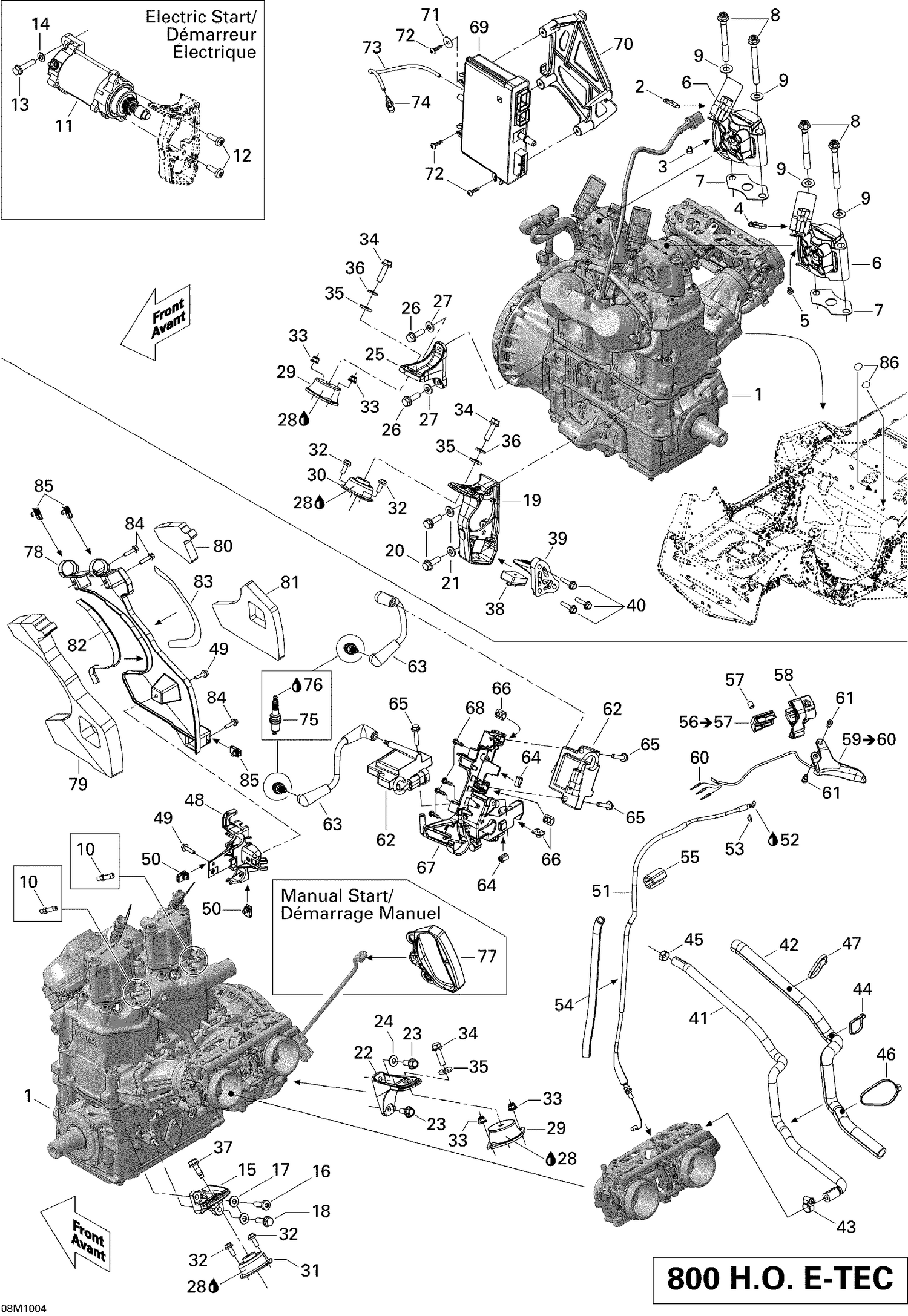

01- Engine

01- Engine

Parts (84)

RefPart NumberDescription
1 421000699 REBUILD-BLOCK SHORT 797 MY12 - Call your local BRP dealership This part replaces 400800325.
1 XXX Not Available As Spare Parts
2 293750001 Tie Wrap 94 mm
3 293750002 Tie Wrap 142 mm
4 293750001 Tie Wrap 94 mm
5 293750002 Tie Wrap 142 mm
6 512061054 Fuel Injector This part replaces 512060540.
7 420430930 Gasket
8 420441187 Torx Flange Screw M10 X 90 -SW 13/T50
9 234001410 Flat Washer 10 mm
10 420924724 Hose Nipple This part replaces 420924720.
11 515178473 Starter This part replaces 515176858.
12 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
13 207583544 Hex Flange Screw M8 X 35, Scotch Grip
14 250200008 Flat Washer With Teflon 8 mm
15 512060478 Rear Support, PTO
16 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
17 234281474 Conical Spring Washer M8
18 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
19 512060714 Front Support, PTO This part replaces 512060561.
20 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
21 234281474 Conical Spring Washer M8
22 512060559 Rear Support, MAG
23 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
24 234281474 Conical Spring Washer M8
25 512060469 Front Support, MAG
26 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
27 234281474 Conical Spring Washer M8
28 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
29 512060729 Rubber Mount This part replaces 512060457.
30 512061507 Vibration Damper This part replaces 512060387.
31 512060448 Rubber Mount
32 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
33 233261414 Hex. Flange Elastic Nut M6 x 1.0
34 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
35 503183200 Yellow, Washer
36 234281474 Conical Spring Washer M8
37 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
38 512060627 Stopper This part replaces 512060577.
39 512060576 Stopper Support
40 207562544 Hex. Flange Screw M6 X 25
41 512060740 Formed Hose, Output This part replaces 512060349.
42 513033412 Tubing
43 293650084 Norma Clamp
44 414115200 Tie-Rap 180 mm
45 293650046 Oetiker Clamp
46 414115200 Tie-Rap 180 mm
47 414115200 Tie-Rap 180 mm
48 512060298 Solenoid Support
49 207652044 Hex.Flange Screw M5 X 20
50 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
51 512060611 Throttle Cable This part replaces 512060586.
52 219704453 Was 293550004 Dielectric Grease, 150 g
53 414274500 Circlip
54 219704399 Was 409901700 Tubing (9 mm)
55 512060313 Protector
57 414440800 Socket Set Screw M8 X 10
58 512060860 Lower Housing This part replaces 512060430.
60 515175232 Male Terminal
61 732601143 Flange Screw
62 512060953 Ignition Coil This part replaces 512060584.
63 512061126 Ignition Cable, 177mm long This part replaces 512060094.
64 710000992 Clip
65 250000253 Hex. Flange Screw M6 X 1.0 X 30
66 293100003 Nut Welded, M6
67 512060888 Ignition Coils Support This part replaces 512060287.
68 241151640 Hex. Flange Screw K50 X 2.24 X 16
69 512060756 Calibrated Module This part replaces 512060645.
70 512060858 Calibrated Module Support This part replaces 512060297.
71 250200040 Flat Washer
72 250000297 Truss Head Torx Screw K50 X 20
73 219704709 NEEDS DESCRIPTION This part replaces 219704409.
74 414814100 Male Connector
75 415131139 Spark Plug NGK PFR7AB This part replaces 415129484.
76 219704453 Was 293550004 Dielectric Grease, 150 g
77 XXX Not Available As Spare Parts
78 512060339 NOISE SHIELD - Call your local BRP dealership
79 512060343 Interior Noise Foam
80 512060344 Upper Exterior Noise Foam
81 512060362 LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership
82 512060574 Heat Shield
83 512060575 Heat Shield
84 207652044 Hex.Flange Screw M5 X 20
85 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
