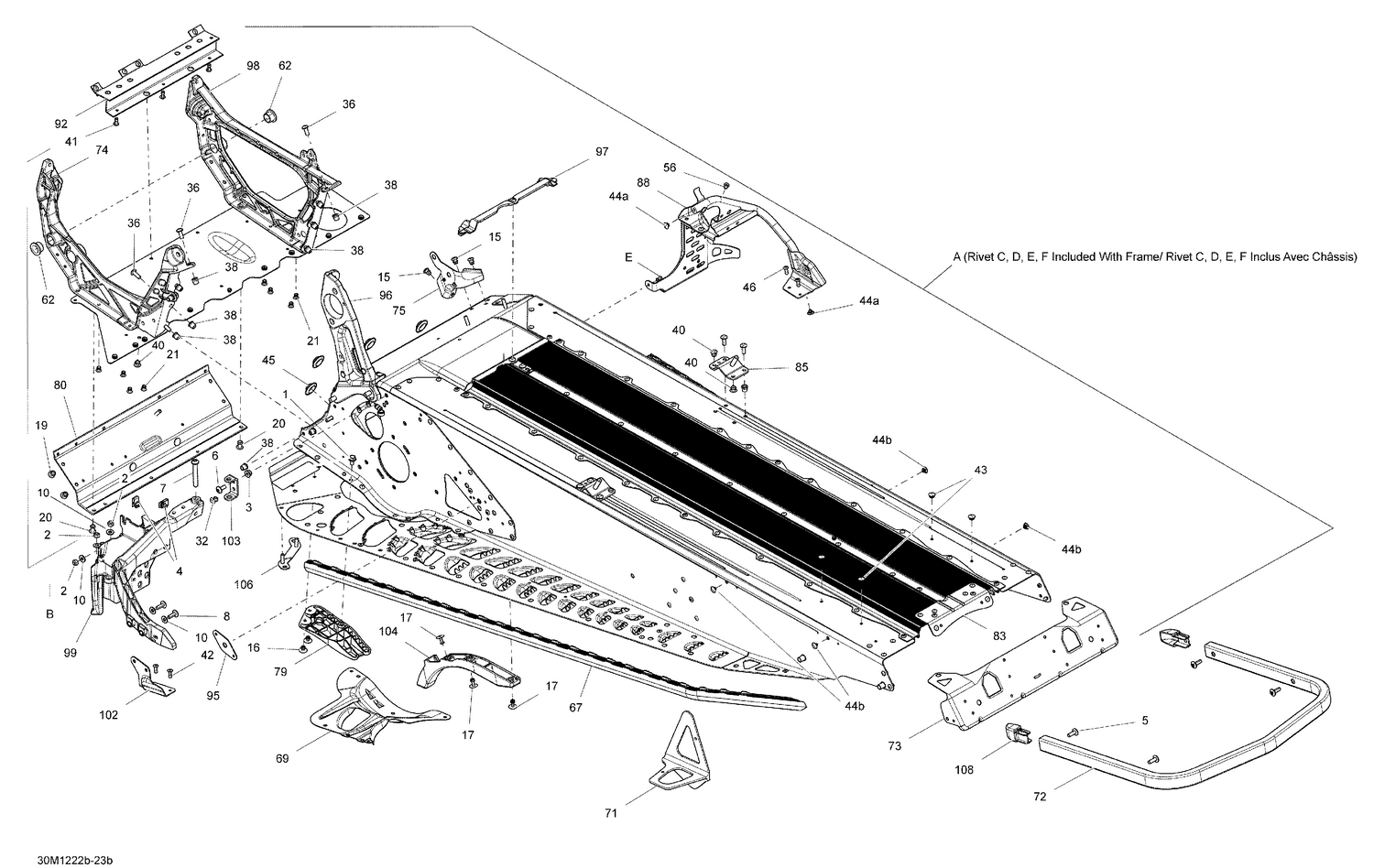

| Ref | Part Number | Description |
|---|
| A |
415129656 |
FRAME MXZ TNT 550F 120'' - Call your local BRP dealership |
| B |
518327568 |
E Module This part replaces 518326845. |
| C |
390909200 |
Avex Rivet |
| D |
390909100 |
Avex Rivet |
| E |
293150144 |
Stavex Rivet |
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
232561414 |
Elastic Stop Nut M6 |
| 3 |
233061414 |
Hex. Flange Nut M6 |
| 4 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 5 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 6 |
250000534 |
Tork Screw M6 X 16 |
| 7 |
250000535 |
Torx Screw M8 X 55 |
| 8 |
250000536 |
Tork Screw M6 X 18 |
| 10 |
250200039 |
Flat Washer |
| 15 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 17 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 19 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 20 |
293150120 |
Hemlock Rivet 6.5 mm |
| 21 |
293150144 |
Stavex Rivet |
| 32 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 36 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 38 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 41 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 42 |
293150194 |
Interlock Rivet 3/16'' |
| 43 |
293730053 |
Black Dart 5 mm |
| 44a |
293730042 |
Full Moon Dart 5 mm |
| 44b |
293730053 |
Black Dart 5 mm |
| 45 |
293730052 |
Black, Plug |
| 46 |
390402300 |
Pop Rivet 3/16" |
| 56 |
390909200 |
Avex Rivet |
| 62 |
505072690 |
Leg Bushing |
| 67 |
518324812 |
RH Roller |
| 67 |
518324813 |
LH Roller |
| 69 |
518324874 |
RH Reinforcement |
| 69 |
518324875 |
LH Reinforcement |
| 71 |
518324885 |
RH Slide Bracket |
| 71 |
518324886 |
LH Slide Bracket |
| 72 |
518325481 |
Black Rear Bumper 137" |
| 73 |
518327105 |
Rear Cap This part replaces 518325421. |
| 74 |
518325558 |
LH Member |
| 75 |
518325559 |
RH Engine Support |
| 79 |
518325782 |
RH Deflector, Black Polypropylene |
| 79 |
518325783 |
LH Deflector, Black Polypropylene |
| 80 |
518325818 |
Front Member |
| 83 |
Not |
Available As Spare Part - Center Tunnel Ass'y 120'' |
| 85 |
518325973 |
RH Rear Base |
| 85 |
518325974 |
LH Rear Base |
| 88 |
518328938 |
RH Stirup This part replaces 518326216. |
| 92 |
518326120 |
ENGINE SUPPORT - Call your local BRP dealership |
| 95 |
518326647 |
Reinforcement Plate |
| 96 |
518328346 |
Pulley Support This part replaces 518326651. |
| 97 |
518326656 |
Seal |
| 98 |
518326795 |
RH Member |
| 99 |
518326820 |
LH Stirup |
| 102 |
518326960 |
Support |
| 103 |
518326961 |
U-Attach |
| 104 |
518326973 |
Front Tunnel Protector |
| 106 |
518326986 |
Attach |
| 108 |
520000840 |
BLACK CAP - Call your local BRP dealership |
