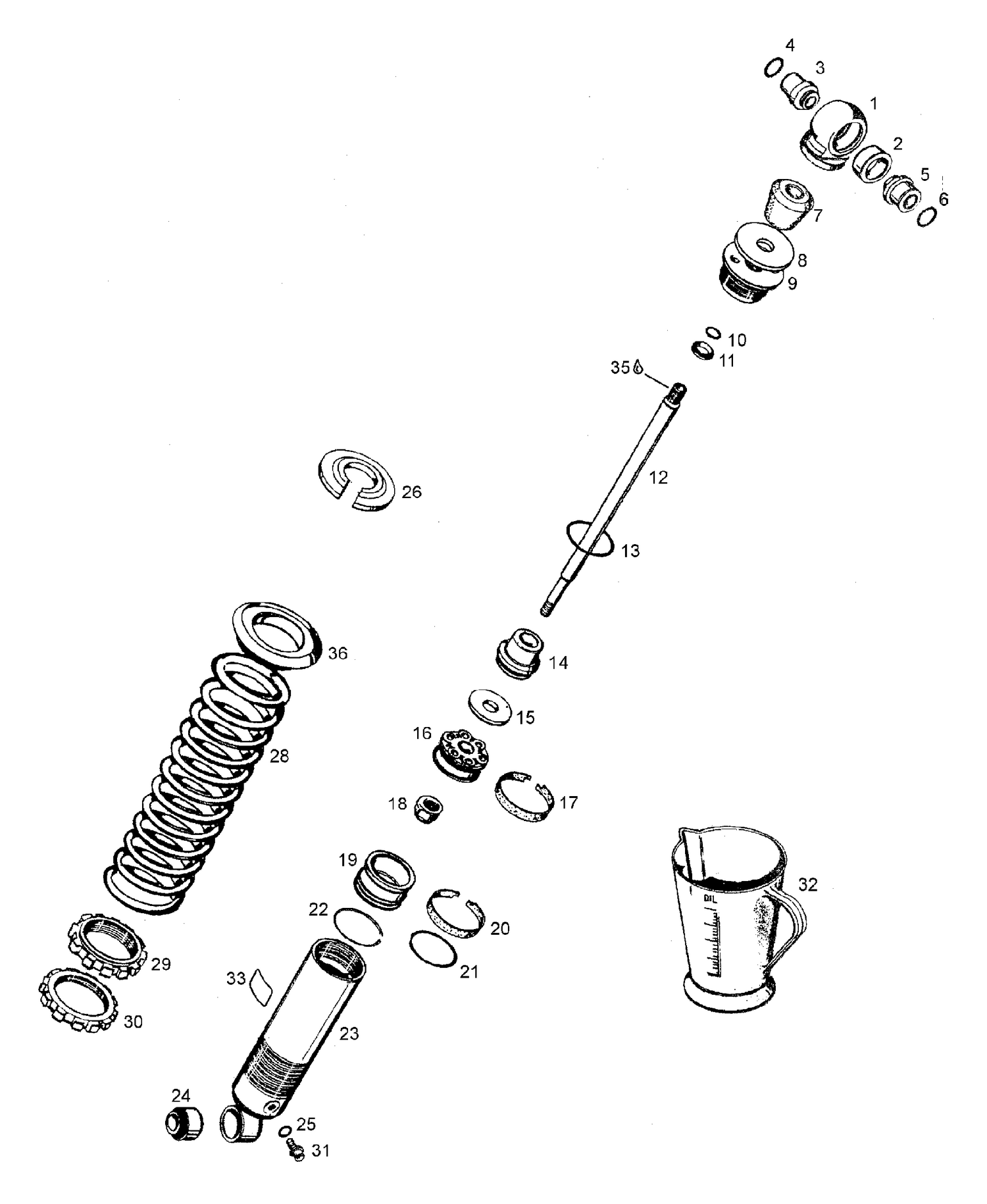

08- Rear Suspension
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | WP361206711 | Mounting eye |
| 2 | WP46811027 | Heim joint |
| 3 | WP46811078 | Adaptor bush |
| 4 | WP46811050 | Seal |
| 5 | WP46811079 | Adaptor bush |
| 6 | WP46811050 | Seal |
| 7 | WP36120548 | Bumprubber |
| 8 | WP46811656 | Disc |
| 9 | WP46811781 | Screw cap |
| 10 | WP46810011 | O-ring |
| 11 | WP46810027 | Dust seal |
| 12 | WP46811774 | Piston rod |
| 13 | WP46810325 | O-ring |
| 14 | WP46811782S | Adaptor d=46 |
| 15 | WP46810475 | Rebound push plate |
| 16 | WP46810560 | Piston |
| 17 | WP46811206 | Piston ring |
| 18 | WP46810474 | Nut |
| 19 | WP46810322 | Separationpist. d=46 |
| 20 | WP46810324 | Piston ring |
| 21 | WP46811043 | O-ring |
| 22 | WP46810010 | Backupring |
| 23 | WP46811776 | Tube |
| 24 | WP46811734 | Silentblock |
| 25 | WP46810893 | O-ring |
| 26 | WP46811610 | Spring retainer |
| 28 | WP91010110 | Spring d=12.0 |
| 29 | WP46811609 | Spring retainer |
| 30 | WP46811608 | Spring retainer |
| 31 | WP36120151 | Nitrogenplug |
| 32 | WP46810208 | Shock absorber oil |
| 33 | WP52000039 | Lynx-decal |
| 35 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
