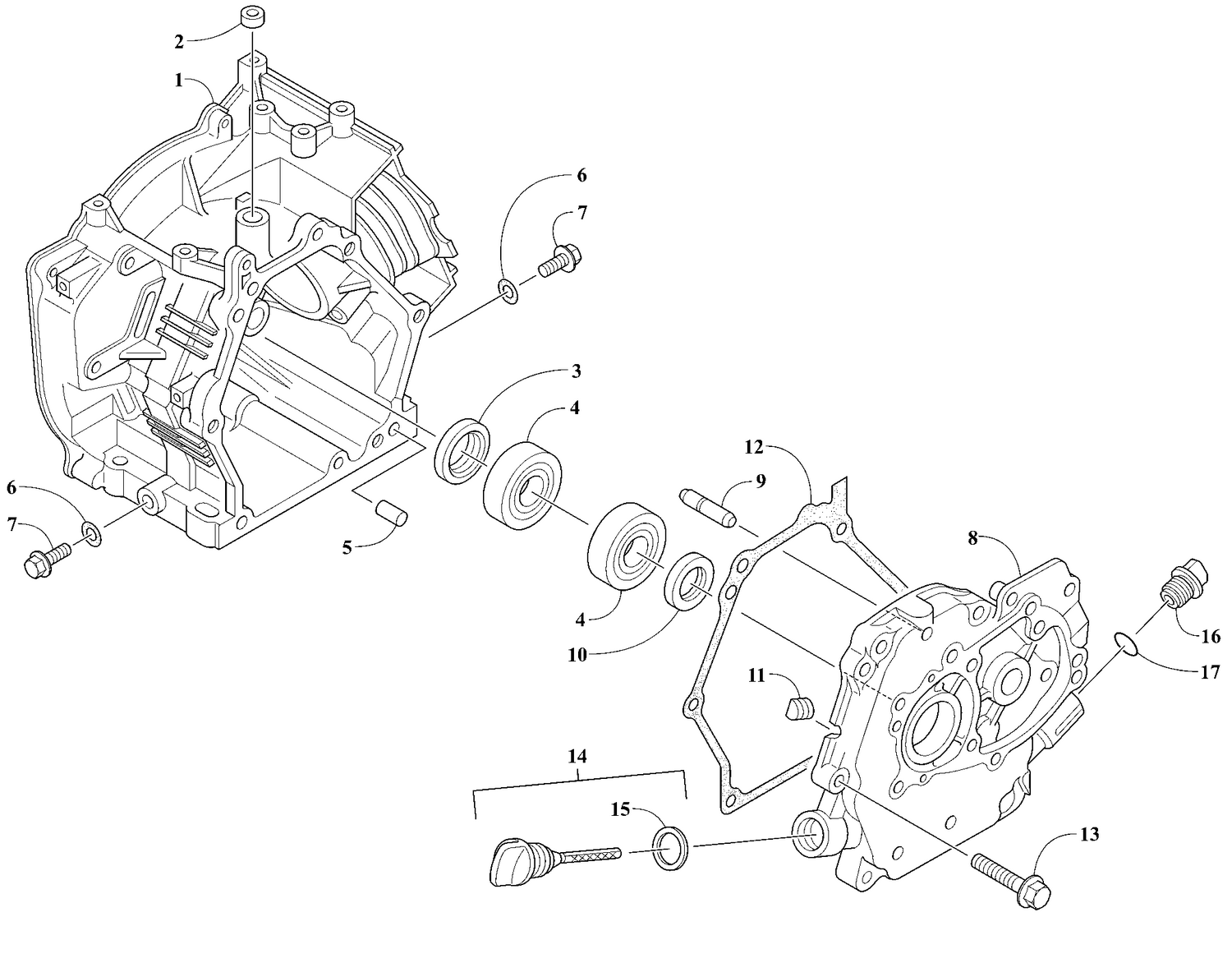

Engine - Crankcase and Cover
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3020-024 | CRANKCASE (120) - Call your local BRP dealership |
| 2 | 3020-111 | Oil Seal |
| 3 | 3020-110 | Oil Seal |
| 4 | 3020-113 | Ball Bearing |
| 5 | 3020-127 | Center Pin |
| 6 | 3021-799 | Gasket |
| 7 | 3021-798 | Hex. Flanged Screw |
| 8 | 3020-062 | Crankcase Cover |
| 9 | 3020-040 | Governor Gear Shaft |
| 10 | 3020-109 | Oil Seal |
| 11 | 3020-100 | Plug |
| 12 | 3021-807 | Crankcase Cover Gasket (200) This part replaces 3020-063. |
| 13 | 3021-808 | Flanged Bolt |
| 14 | 3021-809 | Oil Level Gauge |
| 15 | 3021-810 | Gasket |
| 16 | 3020-060 | Oil Level Filling Plug |
