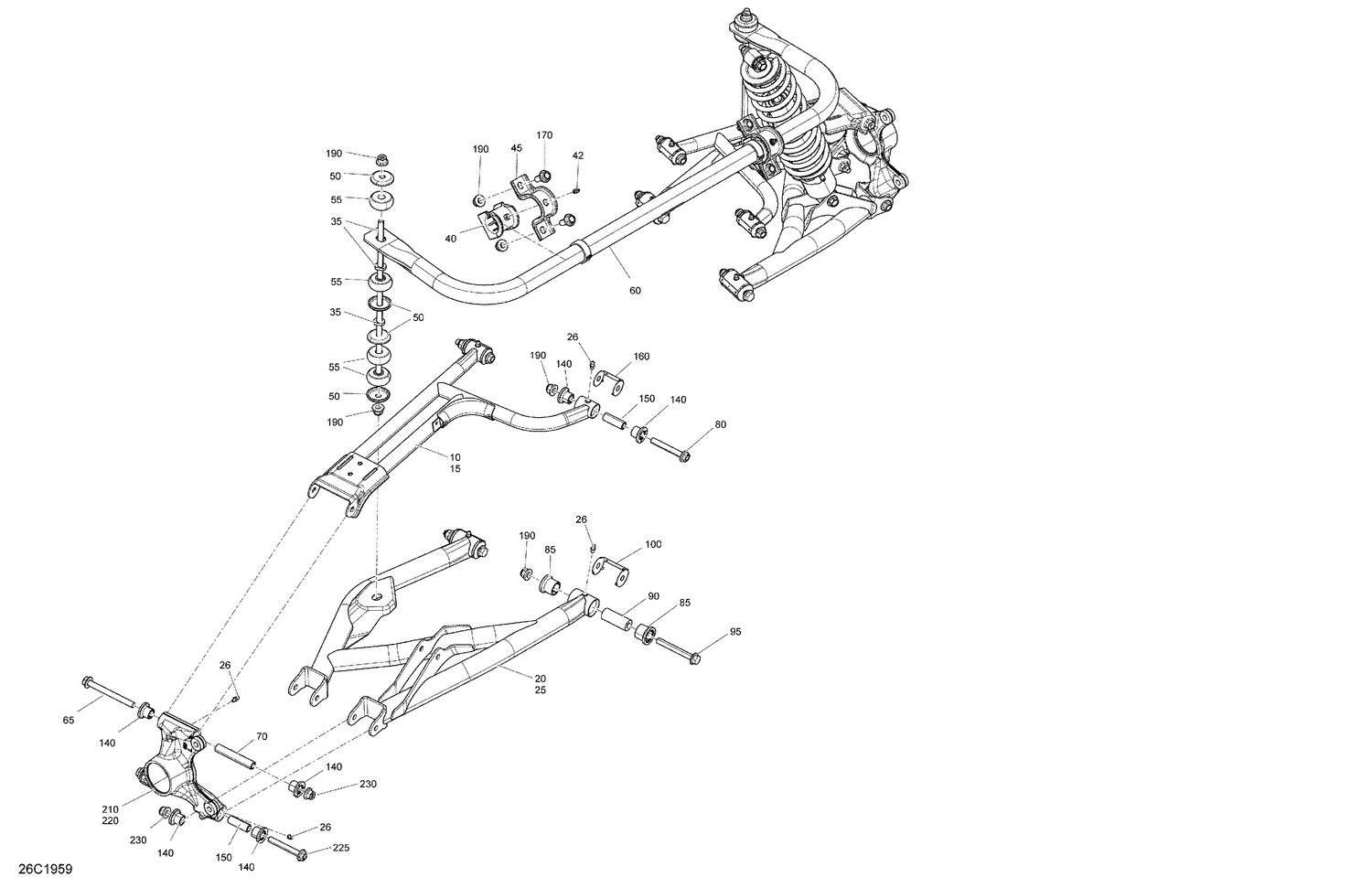

08- Rear Suspension - HD10 XMR
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706002870 | Yellow LH Rear Upper Suspension Arm |
| 15 | 706002871 | Yellow RH Rear Upper Suspension Arm |
| 20 | 706002872 | Yellow LH Rear Lower Suspension Arm |
| 25 | 706002873 | Yellow RH Rear Suspension Lower Arm |
| 26 | 408200700 | Grease Fitting |
| 65 | 230600046 | Hex Flange Screw DIN.6921 - Call your local BRP dealership |
| 70 | 706202197 | Upper Bushing |
| 80 | 207607046 | Hex. Flange Screw M10 X 70 |
| 85 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 90 | 706201590 | Sleeve |
| 95 | 207608046 | Hex Flange Screw M10 X 80 |
| 100 | 706201660 | Wear Plate |
| 140 | 703500875 | Suspension Arm Bushing Kit |
| 150 | 703500875 | Suspension Arm Bushing Kit |
| 160 | 703500875 | Suspension Arm Bushing Kit |
| 210 | 706002809 | Rear Left Machined Knuckle |
| 220 | 706002811 | Rear Right Machined Knuckle |
| 225 | 207607046 | Hex. Flange Screw M10 X 70 |
