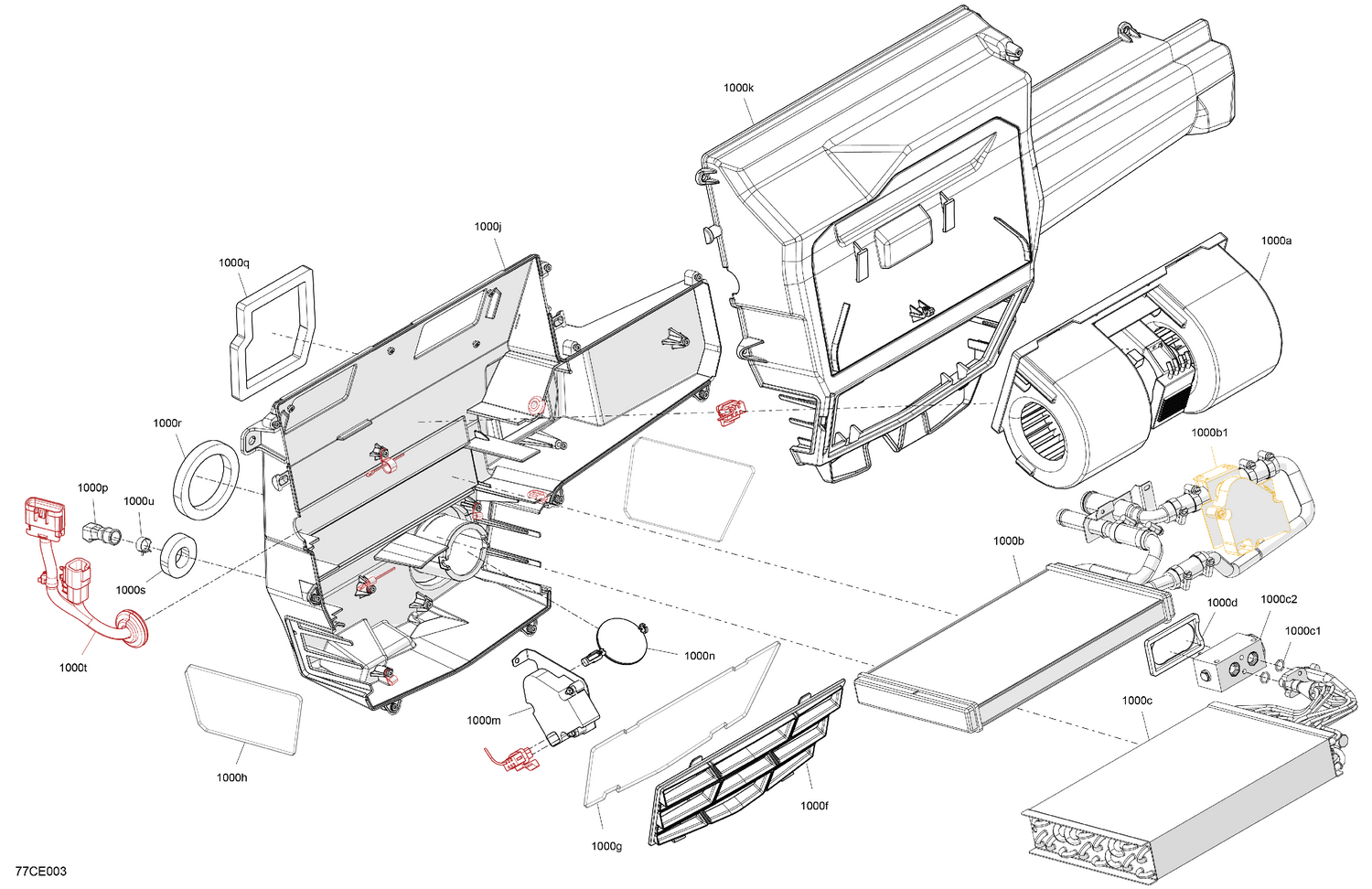

07- Enclosure Cab - Air Conditioning Unit
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 520001536 | Fan |
| 1000b | 705800648 | Heater Coil |
| 1000b1 | 705800486 | Valve Ass'y |
| 1000c | 705800694 | Evaporator |
| 1000c1 | 715900687 | O-Ring |
| 1000c2 | 705800980 | Expansion Valve |
| 1000d | 705800519 | Gasket |
| 1000f | 705800453 | Grille Unit |
| 1000g | 705800440 | Air Filter |
| 1000h | 705800430 | Air Filter |
| 1000j | 705800383 | Front Cover |
| 1000k | 705800384 | Rear Cover |
| 1000m | 705800490 | Actuator Ass'y |
| 1000n | 705800488 | Door Vent |
| 1000p | 705800809 | Drain Valve |
| 1000q | 705800494 | Self Adhesive Weather Strip |
| 1000r | 705800495 | Self Adhesive Weather Strip |
| 1000s | 705800496 | Self Adhesive Weather Strip |
| 1000t | 705800457 | Air Conditioning Wiring Harness |
