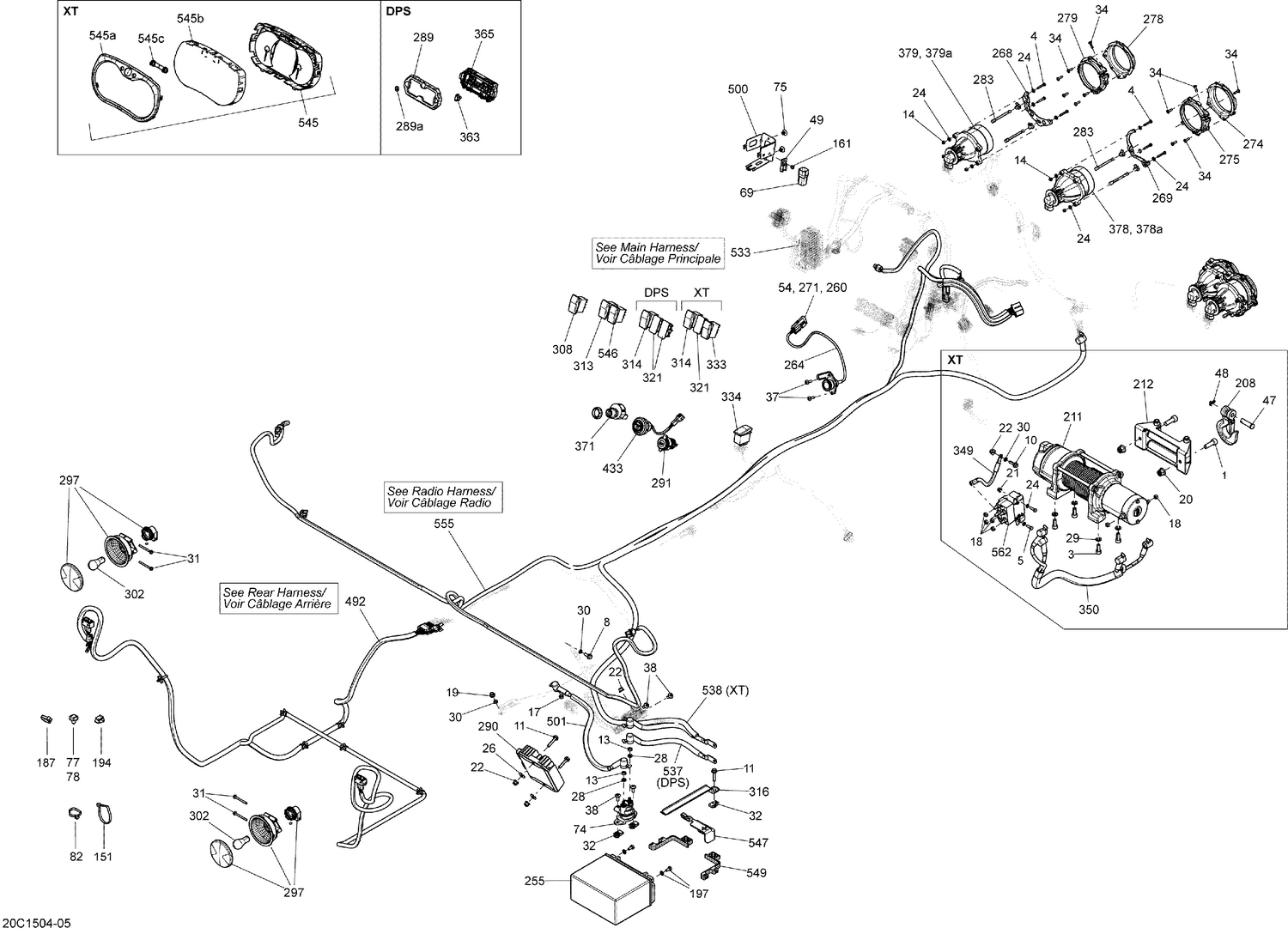

10- Electrical System _20C1504
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207142544 | Hex. Screw M4 X 25 |
| 8 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 11 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 13 | 232061600 | Hex. Nut M6 |
| 14 | 232541414 | Elastic Stop Nut M4 |
| 17 | 232561414 | Elastic Stop Nut M6 |
| 18 | 232561434 | Elastic Stop Nut M6 |
| 19 | 233061414 | Hex. Flange Nut M6 |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 24 | 234051410 | Flat Washer M5 |
| 26 | 234062410 | Flat Washer 6 mm |
| 28 | 234161601 | Lock Washer Helical M6 |
| 30 | 234461608 | External Serrated Lock Washer 6 mm |
| 31 | 241154540 | Hex. Screw K50 X 45 |
| 32 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 34 | 250000723 | Phillips Screw K40 X 16 |
| 38 | 250000717 | Torx Head Screw M6 X 16 |
| 49 | 270000141 | Clip |
| 69 | 278002704 | Diagnostic Connector |
| 74 | 278003012 | Starter Relay |
| 75 | 293150103 | Pop Rivet 3/16" |
| 77 | 293730040 | Mount Dart This part replaces 293730018. |
| 78 | 293730040 | Mount Dart |
| 82 | 293750008 | Tie Wrap 368 mm |
| 151 | 293750009 | Tie-Rap 173 mm |
| 161 | 390402400 | Pop Rivet 3/16" |
| 187 | 414115200 | Tie-Rap 180 mm |
| 194 | 414227300 | Clip |
| 197 | 250000282 | Battery Bolt Kit |
| 255 | 410301203 | Battery YUASA YTX20L |
| 268 | 710001036 | LH High Light Support |
| 268 | 710001115 | RH High Light Support |
| 269 | 710001037 | LH Low Light Support |
| 269 | 710001094 | RH Low Light Support |
| 274 | 710001081 | RH Low Front Housing |
| 274 | 710001083 | LH Low Front Housing |
| 275 | 710001082 | RH Low Rear Housing |
| 275 | 710001084 | LH Low Rear Housing |
| 278 | 710001085 | RH High Front Housing |
| 278 | 710001087 | LH High Front Housing |
| 279 | 710001086 | RH High Rear Housing |
| 279 | 710001088 | LH High Rear Housing |
| 283 | 710001147 | Setting Screw |
| 290 | 710001191 | Voltage Regulator |
| 291 | 710001248 | DC Outlet |
| 297 | 710001645 | Tail Light Ass'y |
| 302 | 520000758 | Bulb |
| 313 | 710001737 | Interrupteur 4X4 |
| 316 | 710001916 | Battery Holder |
| 334 | 710002053 | Switch, Over ride |
| 371 | 710008400 | Ignition Switch This part replaces 710003847. |
| 378 | 710002524 | Low Beam Ass'y |
| 378a | 415129249 | Halogen Bulb |
| 379 | 710002525 | High Beam Ass'y |
| 379a | 415129249 | Halogen Bulb |
| 433 | 710002594 | Engine Start Button |
| 500 | 710003335 | Fuse Holder |
| 501 | 710004390 | Positive Cable This part replaces 710003340. |
| 533 | 710004333 | Cablage Ass. *Harness-Assy. This part replaces 710003343. |
| 546 | 710003541 | Switch PPS Sport |
| 547 | 710003582 | Cap |
| 549 | 710003602 | Battery Rubber Pad |
