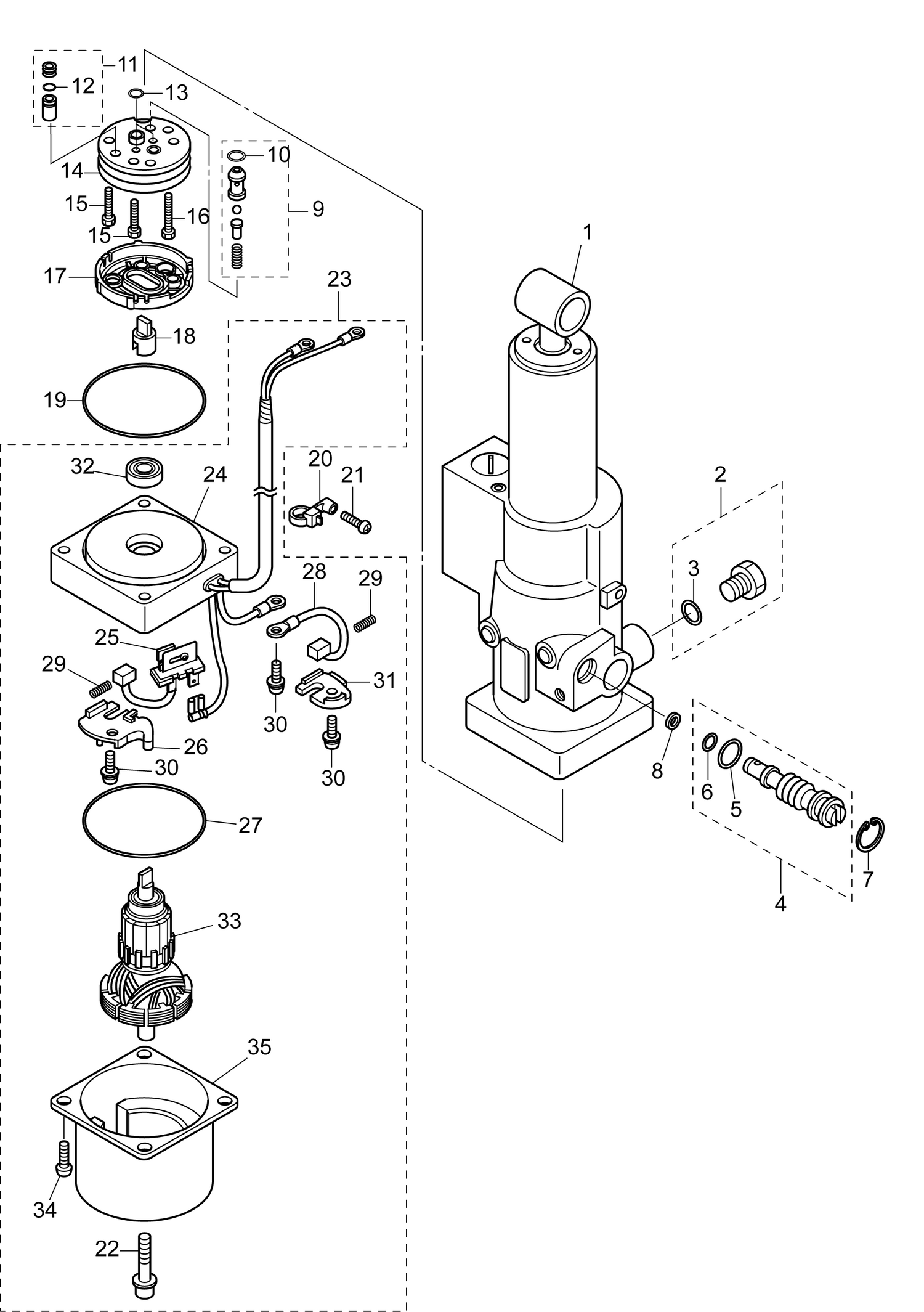

18-1_POWER TILT HYDRAULIC ASSEMBLY
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5041847 | POWER TRIM & TILT HYDRAULIC ASSEMBLY |
| 2 | 5041511 | CAP ASSEMBLY |
| 4 | 5040586 | MANUAL VALVE ASSEMBLY |
| 7 | 5041155 | C-RING |
| 8 | 5040468 | SEAL WASHER |
| 9 | 5040589 | RELIEF VALVE ASSEMBLY |
| 11 | 5041514 | VALVE ASSEMBLY |
| 14 | 5040555 | PUMP |
| 15 | 5040557 | BOLT |
| 16 | 5040556 | BOLT |
| 17 | 5040558 | FILTER |
| 18 | 5040796 | COUPLING PUMP |
| 19 | 5041154 | O-Ring 2-62.5 |
| 20 | 5041520 | BAND LEAD WIRE |
| 21 | 5041355 | PRE-COATED SCREW |
| 22 | 5041512 | BOLT |
| 23 | 5040587 | MOTOR ASSEMBLY |
