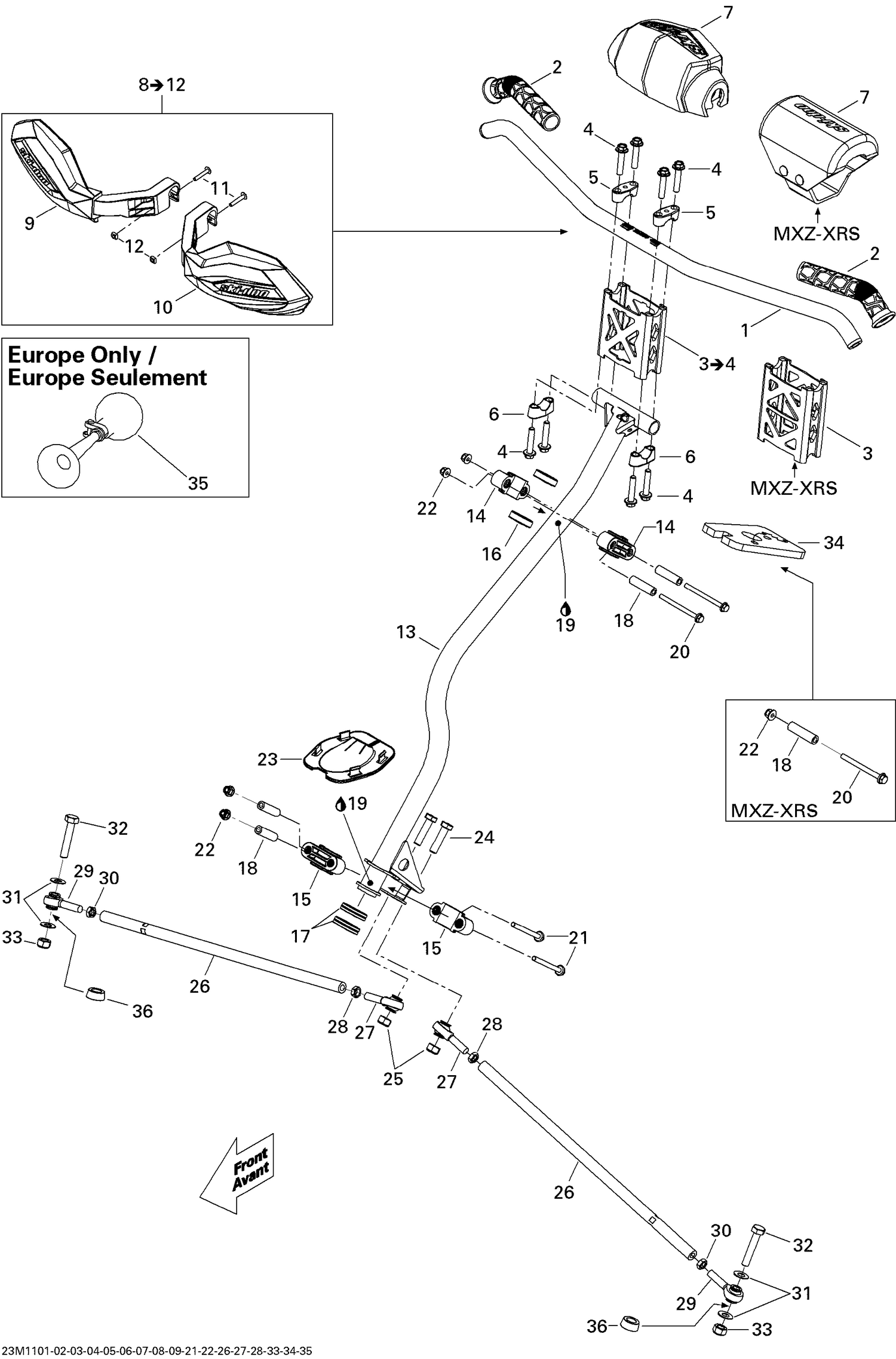

| Ref | Part Number | Description |
|---|
| 1 |
506152709 |
Handle Bar, Non Dyed Clear Anodizing This part replaces 506152458. |
| 2 |
506152486 |
Grip This part replaces 506152226. |
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
506152751 |
Steering Support This part replaces 506152395. |
| 6 |
506152751 |
Steering Support This part replaces 506152395. |
| 7 |
XXX |
Not Available As Spare Parts |
| 9 |
860200710 |
Yellow Wind Deflector Kit This part replaces 517304656. |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
860200710 |
Yellow Wind Deflector Kit This part replaces 517304657. |
| 10 |
XXX |
Not Available As Spare Parts |
| 14 |
506152508 |
Upper Half-Housing |
| 15 |
506152217 |
Lower Half-Housing |
| 16 |
506152509 |
Upper Anti-Vibration Gasket |
| 17 |
506152518 |
Lower Vibration Ring This part replaces 506152218. |
| 19 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 21 |
207667044 |
Hex. Flange Screw M6 X 70 |
| 23 |
506152163 |
Plate |
| 24 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
| 25 |
232500416 |
Elastic Stop Nut M10 |
| 26 |
506152496 |
Tie-Rod Ass'y |
| 27 |
506152081 |
LH Thread Ball Joint |
| 28 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 29 |
506152019 |
RH Threaded Ball Joint |
| 30 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 31 |
506152194 |
Washer |
| 32 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 33 |
232500416 |
Elastic Stop Nut M10 |
| 34 |
XXX |
Not Available As Spare Parts |
