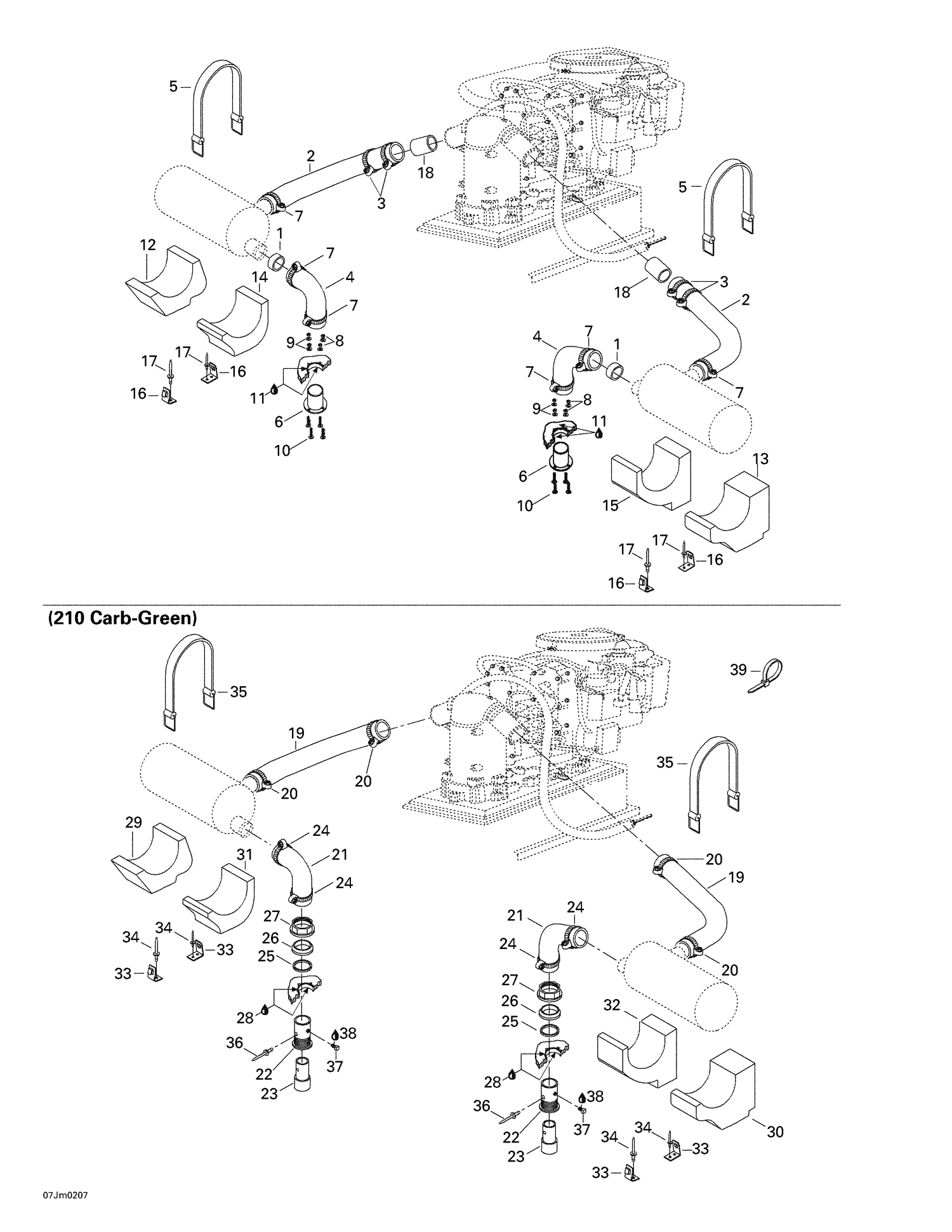

| Ref | Part Number | Description |
|---|
| 2 |
204340306 |
Exhaust Hose |
| 5 |
293850022 |
STRAP - Call your local BRP dealership |
| 6 |
204340322 |
Exhaust Outlet Ass’Y |
| 7 |
293650112 |
Tridon Clamp |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
234061600 |
Stainless Flat Washer M6 |
| 10 |
208663560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 11 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 16 |
204060017 |
Strap Clip 90° |
| 17 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 18 |
204340326 |
Exhaust Hose Insert |
| 204340369 |
Outer |
Muffler Support, Port Side 204340369 |
