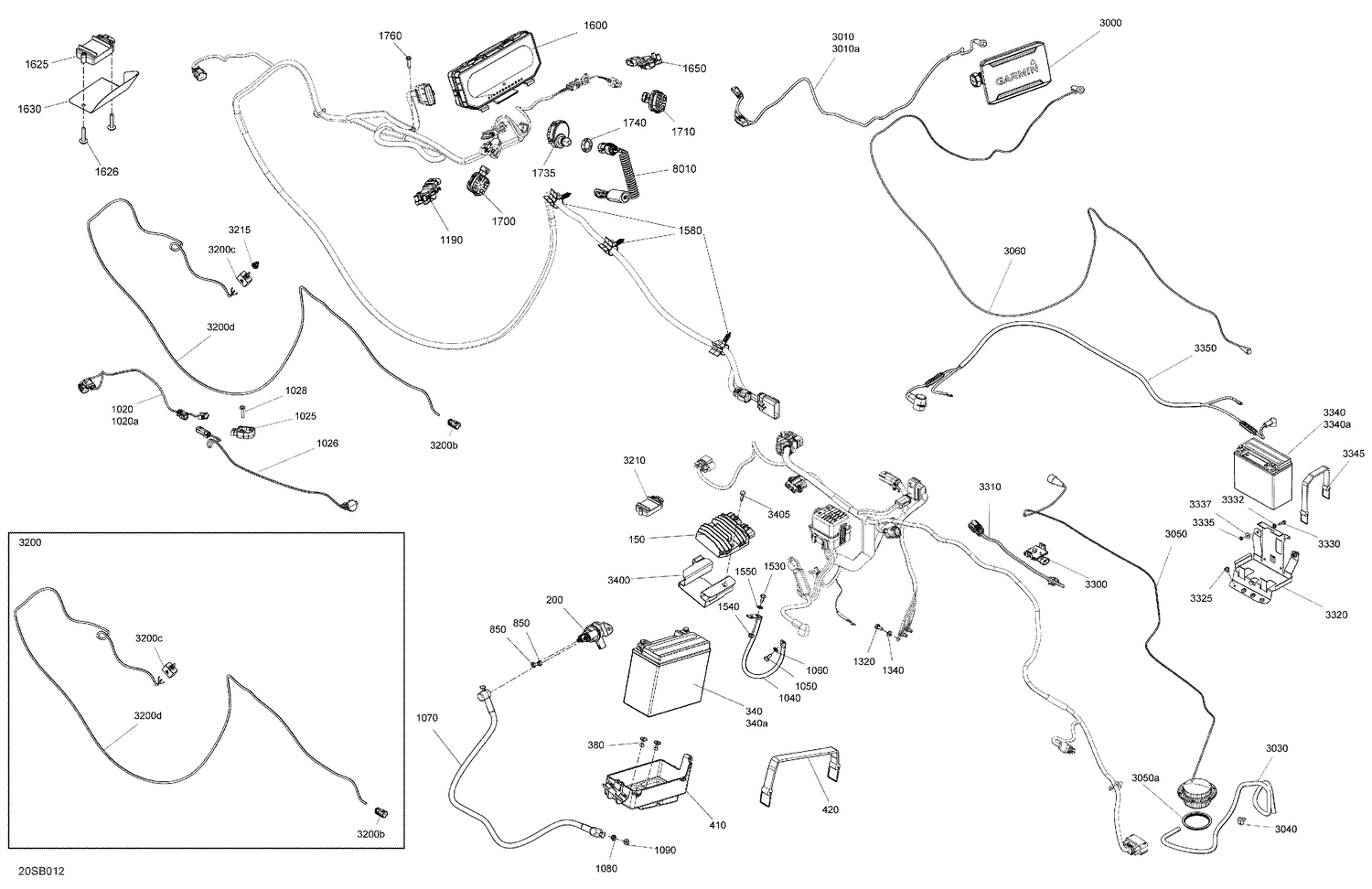

08- Electric - System - Canada And United States
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710005842 | Voltage Regulator |
| 200 | 278003012 | Starter Relay |
| 340a | 250000282 | Battery Bolt Kit |
| 380 | 293150123 | Pop Rivet 3/16" |
| 410 | 278003473 | Battery Support |
| 420 | 293850095 | Fuel Tank Strap |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1020a | 710005857 | Connector USB wih Cable |
| 1025 | 295100710 | USB Charger Cable Ass'y |
| 1026 | 295100710 | USB Charger Cable Ass'y |
| 1028 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1040 | 278003451 | Ground Battery Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1540 | 232561200 | Brass Elastic Stop Nut M6 |
| 1550 | 234061600 | Stainless Flat Washer M6 |
| 1580 | 278003564 | Retainer |
| 1600 | 278004097 | Full Size Multifunction Color Gauge |
| 1625 | 278003899 | External GPS Module |
| 1626 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1630 | 278003976 | Bent Deflector |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003821 | Switch |
| 1710 | 278003474 | RH Switch Keypad |
| 1735 | 515179239 | Terminal_Dess One-Wire Open |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1760 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 3000 | 295100975 | Echo Sounder Switch Kit |
| 3010a | 278003975 | Power Supply Cable |
| 3030 | 293830193 | Polyurethane Hose |
| 3040 | 293730040 | Mount Dart |
| 3050a | 292002447 | Seal |
| 3060 | 278003982 | Echo sounder Wiring Harness |
| 3200b | 515178954 | Housing |
| 3200c | 278004017 | Switch |
| 3200d | 515177246 | Shrink Tubing, 6 mm |
| 3210 | 278003996 | Module Minuterie |
| 3215 | 278004142 | Switch Trim |
| 3300 | 278003538 | O.T.A.S. Sensor |
| 3310 | 278003986 | Seat Wiring Harness |
| 3320 | 278004014 | Battery Support |
| 3325 | 293150186 | Pop Rivet 3/16 |
| 3330 | 207162060 | Hex. Forming Screw M6 X 20 |
| 3332 | 250200114 | Sealing Washer |
| 3335 | 232561200 | Brass Elastic Stop Nut M6 |
| 3337 | 234062600 | Flat Washer M6, Stainless |
| 3340a | 250000282 | Battery Bolt Kit |
| 3345 | 293850095 | Fuel Tank Strap |
| 3350 | 278004007 | Secondary Battery Wiring Harness |
| 3400 | 278004030 | Support Régulateur De Tension |
| 3405 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
