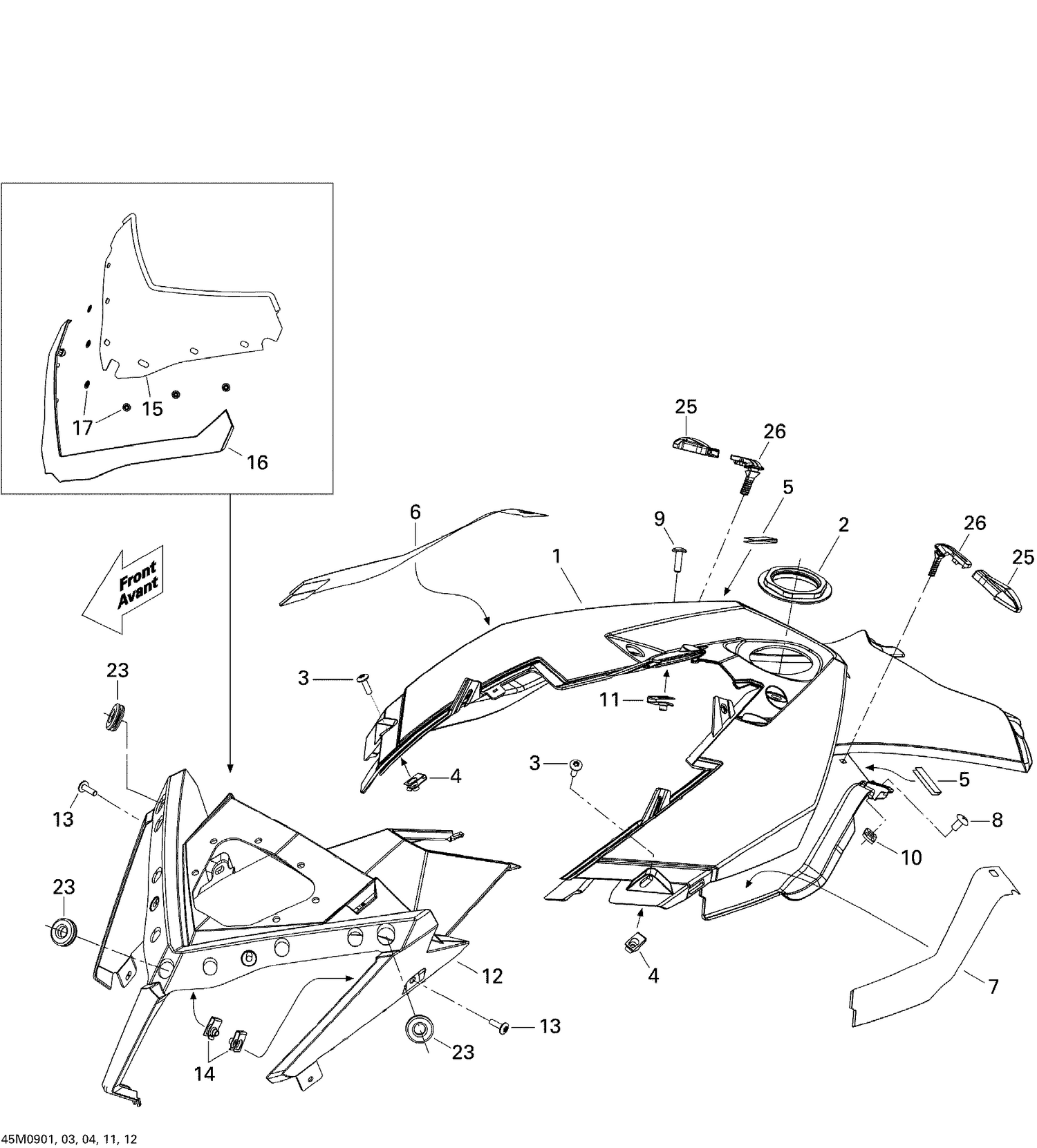

| Ref | Part Number | Description |
|---|
| 1 |
517303759 |
YELLOW CONSOLE - Call your local BRP dealership |
| 2 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 3 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 4 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 5 |
517304105 |
Console Decal |
| 6 |
517304103 |
RH Decal |
| 7 |
517304104 |
LH Decal |
| 8 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 9 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 10 |
250100106 |
NUT-WELD THIN M6 - Call your local BRP dealership |
| 11 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 12 |
517304575 |
Gauge Support This part replaces 517303603. |
| 13 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 14 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 15 |
517304226 |
Low Windshield Ass'y (140) |
| 16 |
860200089 |
Windshield Support Kit This part replaces 517303757. |
| 17 |
732610072 |
Push Nut |
| 23 |
517303756 |
Grommet |
| 25 |
517304075 |
End Piece Latch |
| 26 |
517303981 |
Panel Latch |
