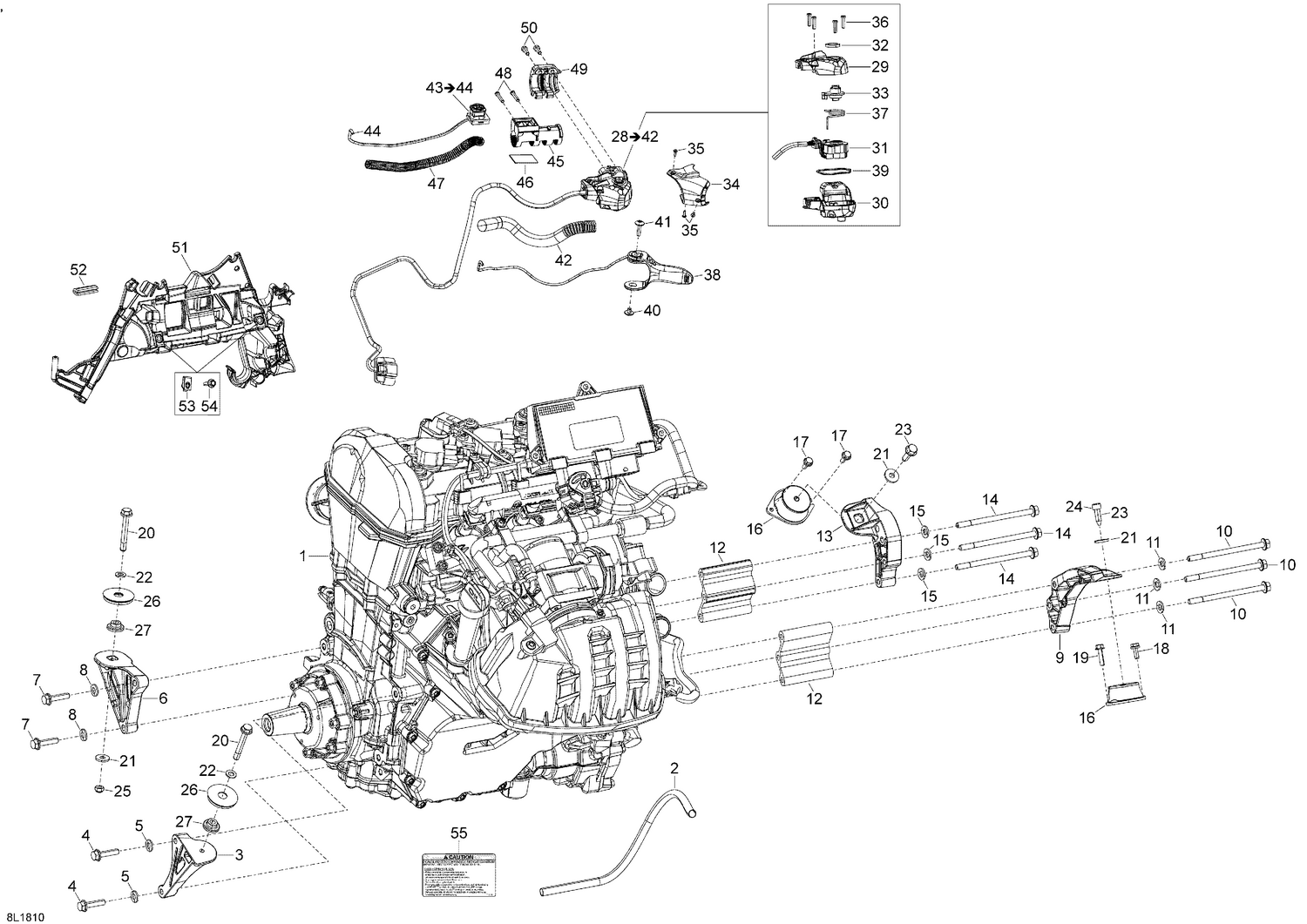

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 900 ACE & XU |
| 2 |
512061067 |
Protector Tube |
| 3 |
512061139 |
Rear Support PTO |
| 5 |
234281474 |
Conical Spring Washer M8 |
| 6 |
512061140 |
Front Support PTO |
| 8 |
234281474 |
Conical Spring Washer M8 |
| 9 |
512061142 |
Rear Support MAG |
| 10 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 11 |
250200157 |
Conical Spring Washer M8 |
| 13 |
512061141 |
Front Support MAG |
| 14 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 15 |
250200157 |
Conical Spring Washer M8 |
| 16 |
512060729 |
Rubber Mount |
| 17 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 19 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 20 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 21 |
503183200 |
Yellow, Washer |
| 22 |
250200008 |
Flat Washer With Teflon 8 mm |
| 23 |
250000257 |
Cone Screw, M8 X 30 |
| 24 |
250000639 |
Cone Screw, M8 X 25 |
| 25 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 26 |
512061536 |
Engine Stopper This part replaces 512060826. |
| 27 |
512060285 |
Spacer |
| 29 |
415130047 |
Handle Ass'y kit |
| 30 |
512060862 |
Cap |
| 31 |
250000623 |
Torx Screw M2.9 x 9.5 |
| 32 |
250000671 |
Torx Screw |
| 33 |
512060961 |
Screw |
| 34 |
250000528 |
Torx Screw M5 X 20 |
| 43 |
515177362 |
Emergency Stop Switch |
| 45 |
512061453 |
Switch Support This part replaces 512060844. |
| 46 |
294000973 |
Friction Tape |
| 47 |
515177946 |
Protector Tube |
| 48 |
250000263 |
Torx Screw #8-18 |
| 49 |
512060987 |
Front Housing |
| 50 |
250000632 |
Torx Screw M5 X 14 |
| 51 |
512060994 |
Module Support |
| 52 |
219704354 |
Trim 1000Mm Long |
| 53 |
250000958 |
Panel Nut M5 X 0.8 |
| 54 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 55 |
516005521 |
Caution Decal, Oil Level |
| 70 |
414115200 |
Tie-Rap 180 mm |
| 71 |
293750008 |
Tie Wrap 368 mm |
| 72 |
414115200 |
Tie-Rap 180 mm |
| 73 |
293300123 |
O-Ring |
| 74 |
414115200 |
Tie-Rap 180 mm |
| 75 |
414115200 |
Tie-Rap 180 mm |
| 76 |
293750002 |
Tie Wrap 142 mm |
