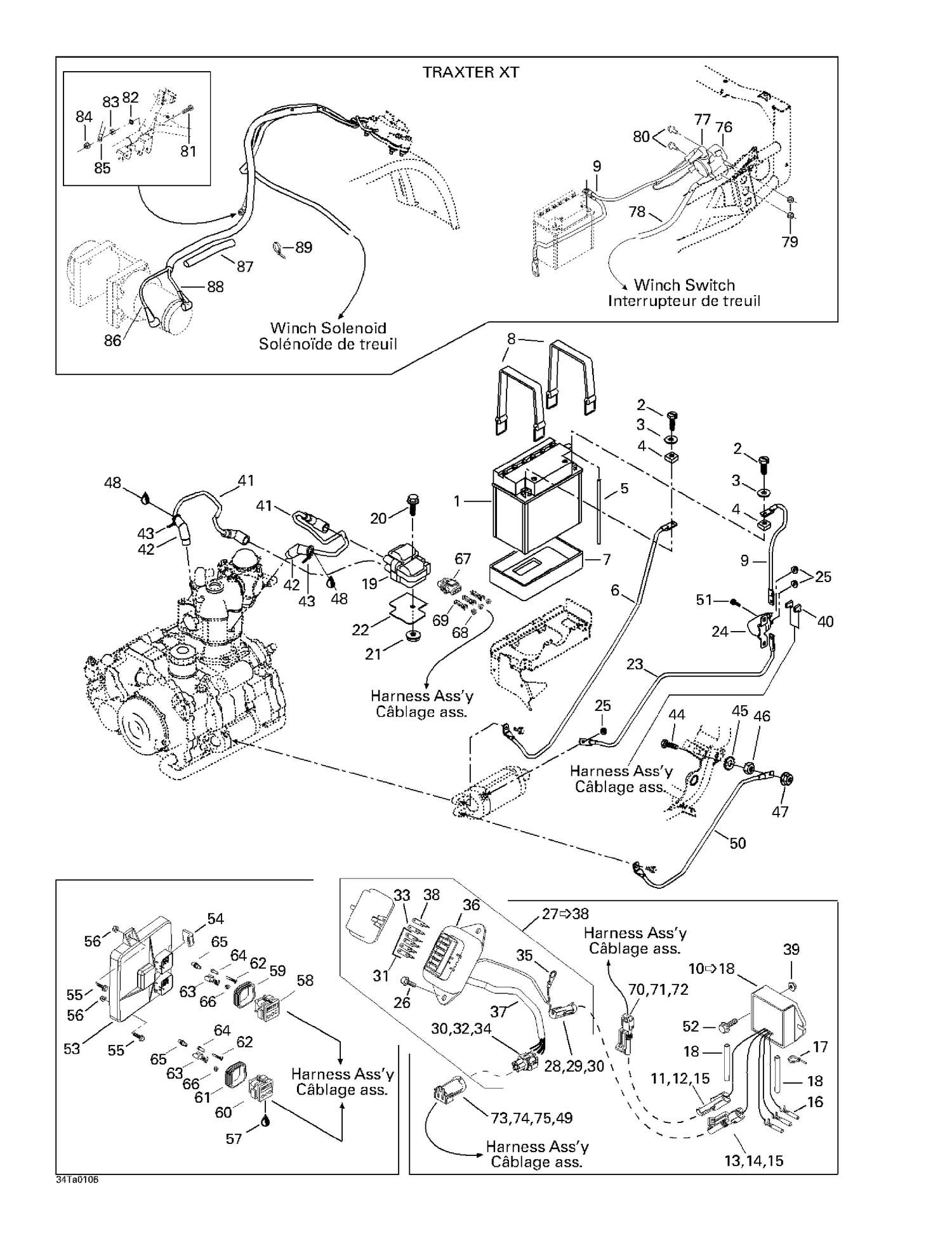

| Ref | Part Number | Description |
|---|
| 1 |
278001756 |
Battery YUASA YB16CL-B This part replaces 278000712. |
| 2 |
207161644 |
Hex. Screw M6 X 16 This part replaces 211000045. |
| 3 |
211200018 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 4 |
232061414 |
Hex. Nut M6 This part replaces 211100022. |
| 5 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 7 |
278001234 |
Battery Lower Pad |
| 8 |
293850097 |
Retainer Strap This part replaces 293850021. |
| 11 |
278000222 |
Male Terminal |
| 12 |
278000161 |
Female Housing, 1 Circuit |
| 13 |
278000223 |
Female Terminal |
| 14 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 15 |
278000218 |
Wire Seal |
| 16 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 710000034. |
| 17 |
293750001 |
Tie Wrap 94 mm |
| 18 |
409901300 |
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership |
| 19 |
278001546 |
Ignition Coil |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
710000073 |
Insulator Pad |
| 23 |
710000136 |
STARTER POSITIVE CABLE - Call your local BRP dealership |
| 24 |
515176011 |
Starter Relay This part replaces 710000111. |
| 25 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 26 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 28 |
409004300 |
Male Terminal |
| 29 |
278000161 |
Female Housing, 1 Circuit |
| 30 |
278000218 |
Wire Seal |
| 31 |
278000343 |
Fuse, 15 Amperes |
| 32 |
409007300 |
Female Terminal |
| 33 |
409003900 |
Fuse, 20 Amperes This part replaces 278001143. |
| 34 |
710000106 |
Female Housing, 5 Circuit |
| 35 |
278001392 |
Open Barrel Terminal This part replaces 409012600. |
| 36 |
710000029 |
Fuse Box |
| 37 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 38 |
410917200 |
Fuse, 30 Amperes |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
409010300 |
Female Terminal |
| 42 |
420265248 |
Spark Plug Connector This part replaces 710000041. |
| 43 |
293750001 |
Tie Wrap 94 mm |
| 44 |
207162044 |
Hex. Screw M6 X 20 |
| 45 |
234461608 |
External Serrated Lock Washer 6 mm |
| 46 |
232061414 |
Hex. Nut M6 |
| 47 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 48 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 49 |
710000048 |
Wire Seal |
| 50 |
710000022 |
Battery Ground Cable |
| 51 |
210661940 |
Screw Hex. M6.3 x 19 |
| 52 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 53 |
710000185 |
Electronic Module Calibrated |
| 54 |
278001166 |
MODULE PROTECTOR - Call your local BRP dealership |
| 55 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 56 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 59 |
278001307 |
WIRE SEAL - Call your local BRP dealership |
| 61 |
278001307 |
WIRE SEAL - Call your local BRP dealership |
| 62 |
278000995 |
FEMALE TERMINAL - Call your local BRP dealership |
| 63 |
278000994 |
FEMALE TERMINAL - Call your local BRP dealership |
| 64 |
293000070 |
SEALING CAP - Call your local BRP dealership |
| 65 |
293000070 |
SEALING CAP - Call your local BRP dealership |
| 66 |
278000996 |
WIRE SEAL - Call your local BRP dealership |
| 67 |
278000997 |
Male Housing, 3 Circuits |
| 68 |
278000999 |
Wire Seal |
| 69 |
278000998 |
Female Terminal |
| 70 |
710000048 |
Wire Seal |
| 71 |
409007300 |
Female Terminal |
| 72 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 73 |
710000107 |
MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership |
| 74 |
409004300 |
Male Terminal |
| 75 |
278000218 |
Wire Seal |
| 710000048 |
Joint |
De Fil 710000048 |
| 710000048 |
Wire |
Seal 710000048 |
