Home / BRP / JOHNSON / 1975 / 15 / 15E75C 1975 / EXHAUST HOUSING

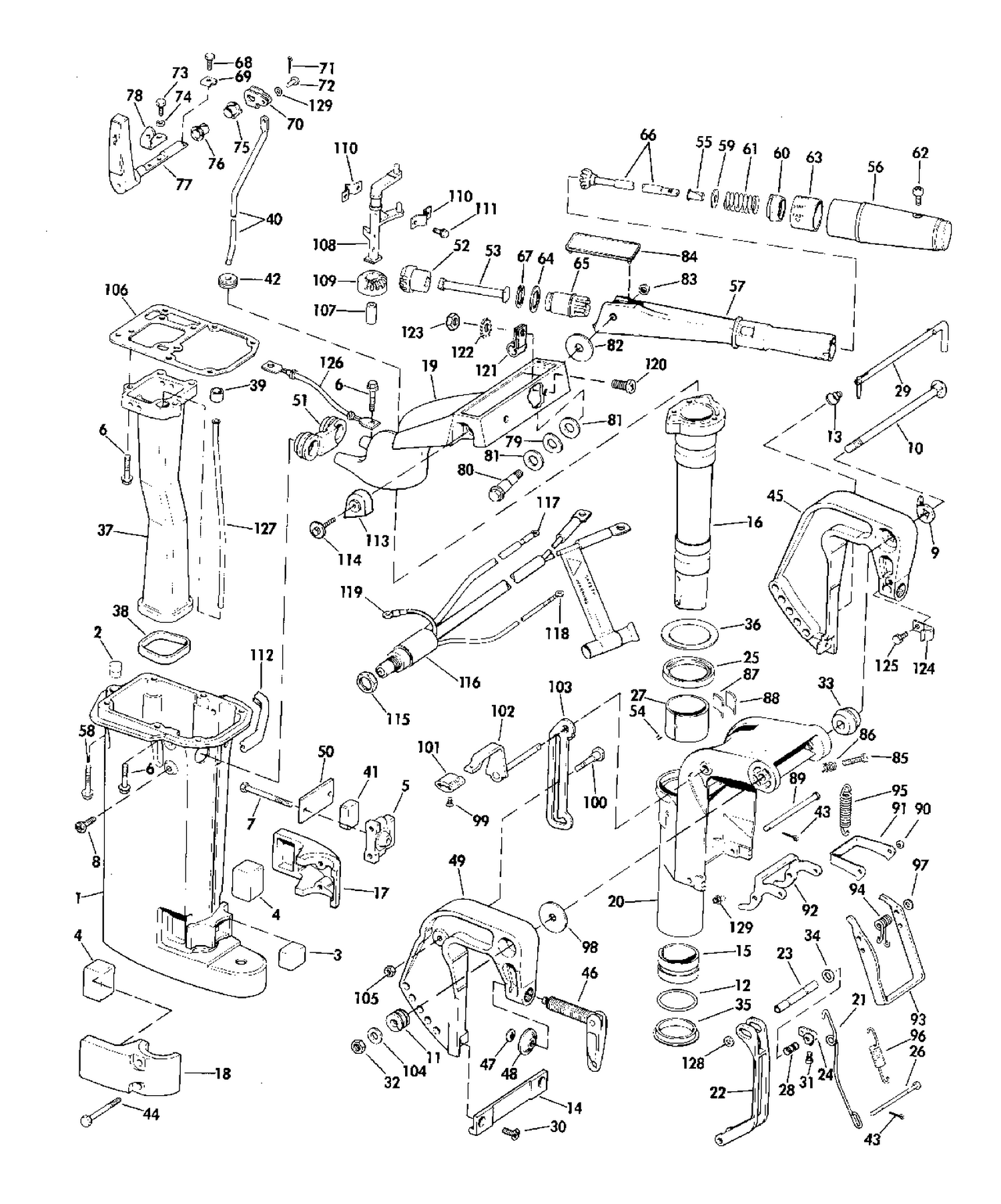

EXHAUST HOUSING

EXHAUST HOUSING

Parts (108)

RefPart NumberDescription
1 0391578 EXHAUST HOUSING ASSY This part replaces 0386036.
2 0318816 PLUG, Exhaust hsg
3 0318994 THRUST MOUNT, Lower
4 0318997 LATERAL MOUNT, Lower
5 0386033 MOUNT ASSY,.Upper
7 0313600 SCREW, Upper mounts to steering bracket
8 0319125 SCREW
9 0300364 LINK, Conical, tilt shaft
10 0319756 BOLT, Tilting shaft
11 0302051 SPRING Tilting bolt
12 0305270 O RING
13 0323471 SPRING, Thrust rod This part replaces 0307653.
14 0309738 PLATE STERN BRACKET
15 0309967 BUSHING, Pilot shaft, lower
16 0318528 PILOT SHAFT, Swivel brkt.
17 0329021 MOUNT BRACKET, Lower port This part replaces 0318817.
18 0329020 MOUNT BRACKET, Lower, stbd This part replaces 0318818.
19 0395463 STEERING BRACKET This part replaces 0320686.
20 0386934 SWIVEL BRACKET
21 0320416 WIRE, Reverse lock release
22 0338874 CARRYING HANDLE This part replaces 0318956.
23 0319046 BUSHING, Tilt lock shaft to sw. brkt.
24 0319049 BELL CRANK, Reverse lock
25 0397736 BLOCK ASSY., Friction This part replaces 0318876.
26 0322945 PIN, Link shallow water drive This part replaces 0319053.
27 0397736 BLOCK ASSY., Friction This part replaces 0319087.
28 0319270 SPRING, Tilt lock bushing
29 0387524 ROD, Thrust and retainer This part replaces 0378158.
30 0308684 SCREW, Cover to housing
31 0319108 SCREW BELCRANK
33 0301983 CONICAK WASHER,Stern brkt
34 0308052 RONDELLE, verrouillage de relevage, douille d'arbre
35 0309966 THRUST WASHER, Lower swivel bracket
36 0397736 BLOCK ASSY., Friction This part replaces 0319090.
37 0330439 EXHAUST TUBE, Inner This part replaces 0318815.
38 0318996 SEAL, Inner to outer exh, hsg
39 0324045 GROMMER, Upper, water tube This part replaces 0318998.
40 0319124 SHIFT ROD, Upper
41 0318993 THRUST MOUNT UPPER
42 0319229 GROMMET, Exh, hsg, to shift rod
44 0319042 SCREW BRACKET AND CLAMPSCREW ASSY., Port
45 0327928 STERN BRACKET, Port This part replaces 0386180.
46 0433675 CLAMP SCR. & HAND. ASSY. This part replaces 0377311.
49 0327929 STERN BRKT., Stbd. This part replaces 0386181.
50 0319084 LINK, Upper mounts
51 0318989 SEAL, Upper mounts exh. hsg.
52 0319034 GEAR, Control shaft, inner
53 0319006 SHAFT, Link to starter interlock bellcrank
54 0303696 PIN
56 0393556 GRIP & SLEEVE ASSY. This part replaces 0386239.
57 0322133 STEERING HANDLE This part replaces 0320424.
59 0303252 WAHSER, Grip spring
60 0303282 BLOCK
61 0301656 SPRING
63 0319214 PLATE
65 0389720 GEAR & BUSHING ASSY., Strg. hdl. This part replaces 0386322.
66 0388164 GEAR & SHAFT ASSY This part replaces 0386948.
67 0908141 RETAINING RING
68 0308017 SCREW, Bellcrank to shift lever
69 0319537 CLIP
70 0320790 BELLCRANK, Shift rod
72 0319541 PIN, Bellcrank to shift rod
73 0319563 SCERW, Lever to shaft
74 0311407 LOCKWASHER, Lever to shaft
75 0318950 BUSHING, Shift lever to motor cover, inner
76 0318951 BUSHING, Shift lever to c'case
77 0386114 SHFIT LEVER & SHAFT ASSY.
78 0320931 LEVER, Shaft lever to shift lock link.
79 0319041 BOW WASHER, Scerw to brkt
80 0318977 SCREW, Stgr. hdle. to brkt
82 0304278 WASHER This part replaces 0319313.
83 0320266 LOCKNUT, Cooler bracket
84 0319339 COVER, Steering hdl. gears
85 0313035 SCREW
87 0319128 SPACER, Friction block to liner
88 0397736 BLOCK ASSY., Friction This part replaces 0319086.
89 0319055 PIN, Link to bracket
90 0310540 RONDELLE, arbre de verrouillage de relevage, extérieur
91 0319050 LEVER, Reverse locking
92 0322949 LINK, Reverse lock This part replaces 0319054.
93 0338657 LINK, Shallow water drive This part replaces 0320426.
94 0320427 SPRING, Shallow water drive
95 0319279 SPRING, Reverse lock
96 0320428 SPRING, Reverse lock rod
97 0204293 WASHER, Hinge pin
98 0304278 WASHER
99 0319227 SCREW, Knob
100 0319047 PIN, Tilt lock to stern bracket
101 0328048 KNOB, Tilt & reverse lock lever This part replaces 0319051.
102 0386163 LEVER & SHAFT ASSY,.Lock
103 0338563 TILT LOCK, Starboard This part replaces 0319134.
104 0309335 WASHER
106 0325721 GASKET, Cyl. & c'case to lower engine cover This part replaces 0318988.
107 0321997 PIN, Control shaft lever This part replaces 0319149.
108 0331192 SHAFT, Vertical control This part replaces 0321244.
109 0319035 GEAR, Vertical control shaft
110 0319067 BEARING CLAMP, Control shaft
112 0319280 SEA.,Exhaust housing to lower motor cover
113 0319715 PLUG
114 0320964 SCREW, Plug
116 0582961 CABLE & STARER SWITCH ASSY. This part replaces 0581292.
120 0319125 SCREW
121 0317000 COLLIER, câble This part replaces 0320687.
124 0333440 CLAMP, Battery cable This part replaces 0317755.
126 0376349 FIL, masse
127 0395122 WATER TUBE & GROMMET, Inlet, std. This part replaces 0318990.
127 0395123 EATER TUBE, Long This part replaces 0319322.
128 0310540 RONDELLE, arbre de verrouillage de relevage, extérieur
