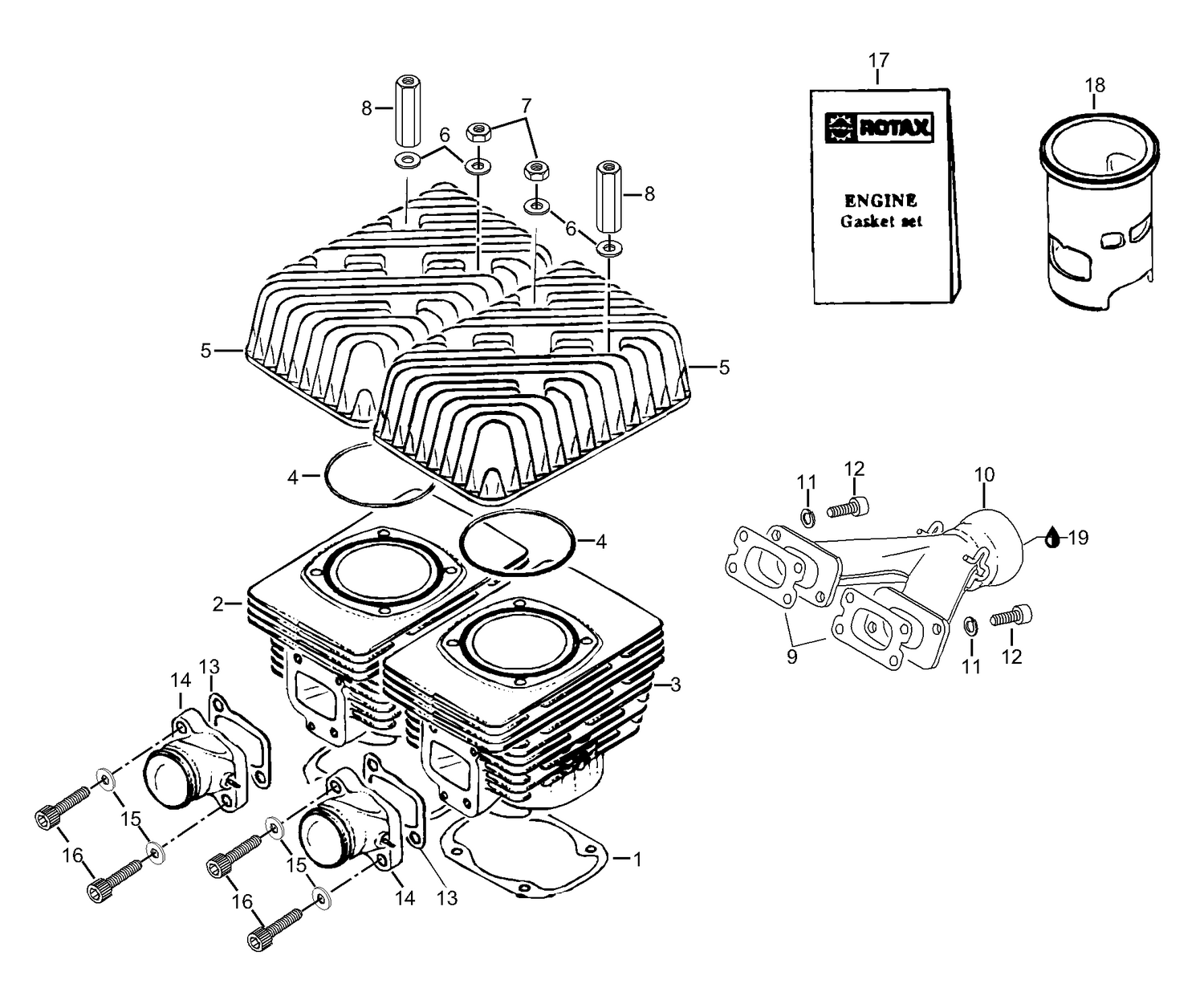

| Ref | Part Number | Description |
|---|
| 1 |
420430351 |
GASKET 0.4 - Call your local BRP dealership This part replaces 420931781. |
| 2 |
420923404 |
Cylinder,var.side |
| 3 |
420923409 |
Cylinder, mag.side |
| 4 |
420931380 |
O-Ring |
| 5 |
420613632 |
Cylinder head |
| 6 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 7 |
232081414 |
Hex. Nut M8 This part replaces 420242206. |
| 8 |
420842385 |
Nut M8 x 51 |
| 9 |
420850114 |
GASKET - Call your local BRP dealership |
| 10 |
605348393 |
Branch-Y |
| 11 |
20014 |
Spring washer |
| 12 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 13 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership This part replaces 420831866. |
| 14 |
420867408 |
INTAKE SOCKET ASS?Y - Call your local BRP dealership |
| 15 |
20014 |
Spring washer |
| 16 |
420841591 |
Allen screw M8 x 35 |
| 17 |
420994232 |
GASKET SET, ENGINE - Call your local BRP dealership |
| 18 |
420923781 |
Spare cylinder sleeve |
