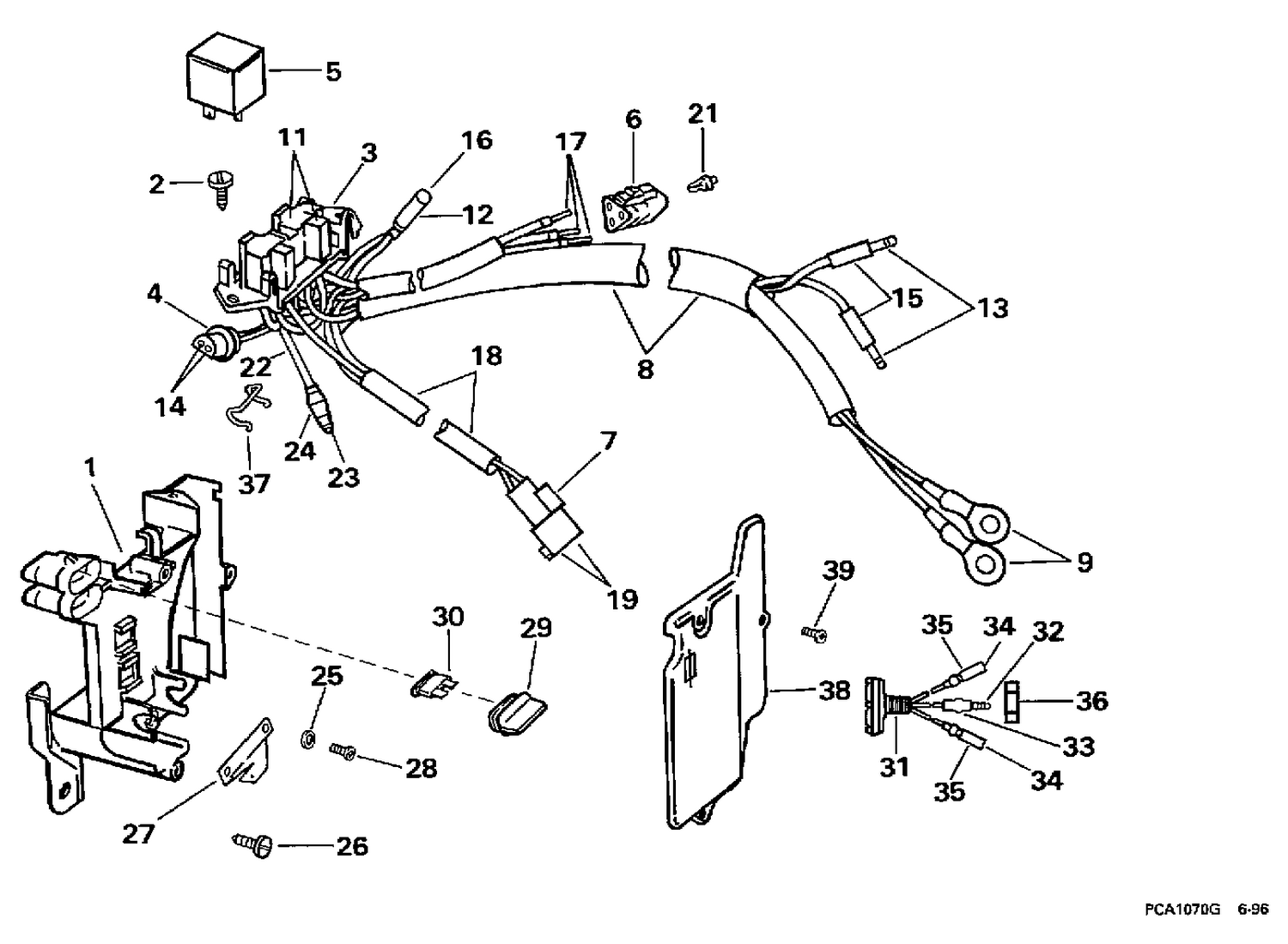

POWER TRIM/TILT ELECTRICAL
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0586013 | BRACKET, Component |
| 8 | 0585168 | CABLE ASSY. |
| 18 | 0585167 | CABLE ASSY., Trim motor |
| 22 | 0584377 | LEAD ASSY., Relay to trim limiting switch |
| 26 | 0335200 | VIS, capteur position de vilebrequin vers support This part replaces 0343634. |
| 27 | 0514005 | SUPPORT, connecteur sectionneur de batterie |
| 28 | 0514162 | SCREW, Bracket |
| 31 | 0584842 | SWITCH ASSY., Tilt |
| 37 | 0512741 | DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 38 | 0340937 | COVER, Bracket |
| 0585169 | 0585169 | RELAY & CABLE ASSY. |
