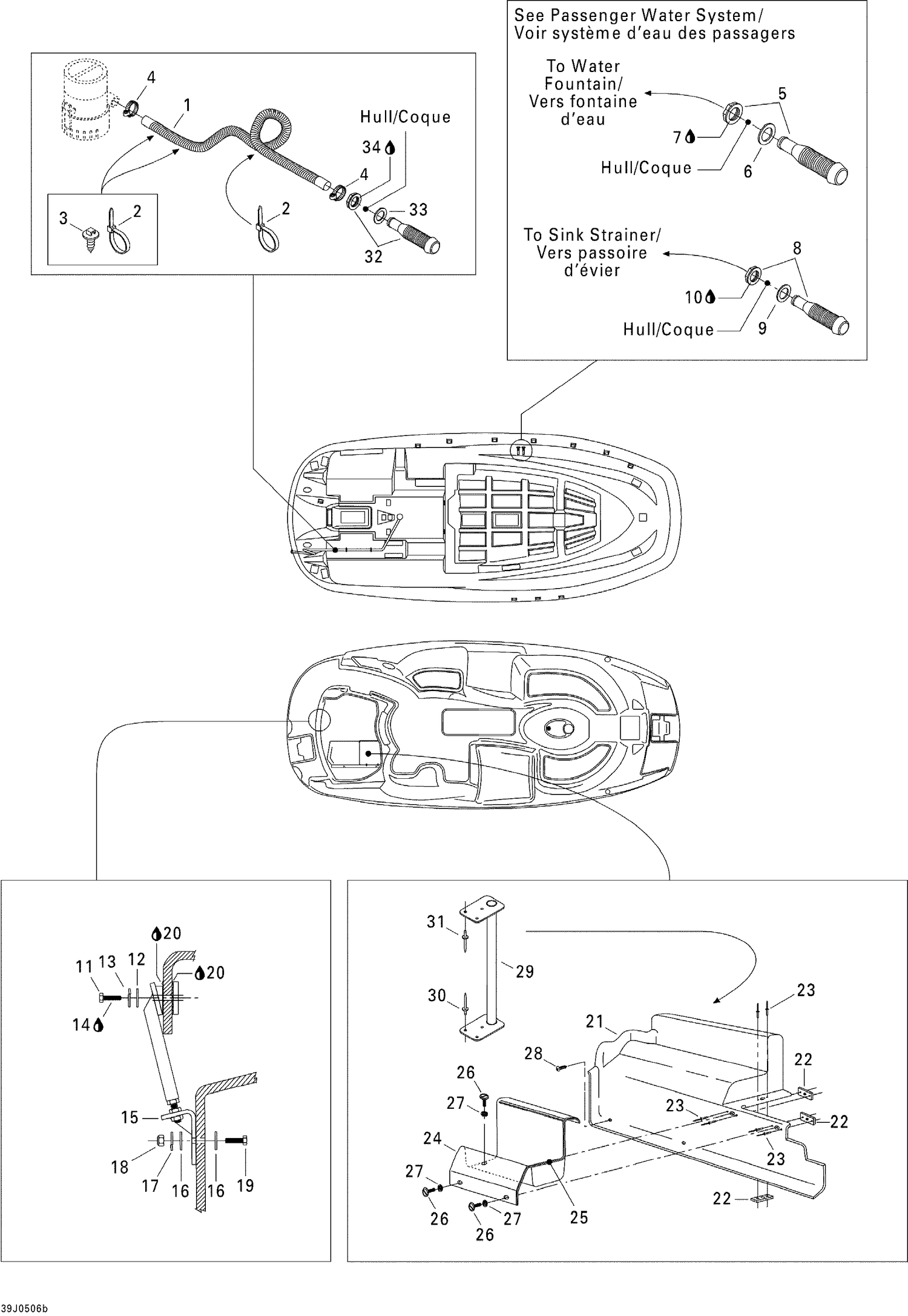

| Ref | Part Number | Description |
|---|
| 1 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 3 |
293730006 |
Black, Dart |
| 4 |
293650016 |
Tridon Clamp |
| 5 |
293710162 |
Fitting This part replaces 293710015. |
| 6 |
293250006 |
GASKET - Call your local BRP dealership |
| 7 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 8 |
204100028 |
Thru Hull Fitting 5/8" |
| 9 |
293250028 |
GASKET - Call your local BRP dealership |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
207183560 |
HEX. SCREW M8 X 35 - Call your local BRP dealership |
| 12 |
234081600 |
Stainless, Flat Washer 8 mm |
| 13 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
204050230 |
Lower Bracket |
| 16 |
234082600 |
Flat Washer 8 mm, Stainless |
| 17 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 18 |
232581600 |
Hex. Elastic Nut M8 |
| 19 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 20 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 21 |
204050602 |
Ski Storage Step |
| 22 |
204050441 |
Threaded Insert |
| 23 |
293150016 |
Rivet 1/8" |
| 24 |
204050604 |
Battery Cover |
| 25 |
204070752 |
Rubber Trim |
| 26 |
204100095 |
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership |
| 27 |
204100096 |
Retaining Washer |
| 28 |
209663860 |
Tapping Phillips Screw 6.3 X 38 |
| 29 |
204050242 |
Ski Step Support |
| 30 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 31 |
293150008 |
Pop Rivet 3/16" |
| 32 |
293710162 |
Fitting This part replaces 293710015. |
| 33 |
293250006 |
GASKET - Call your local BRP dealership |
