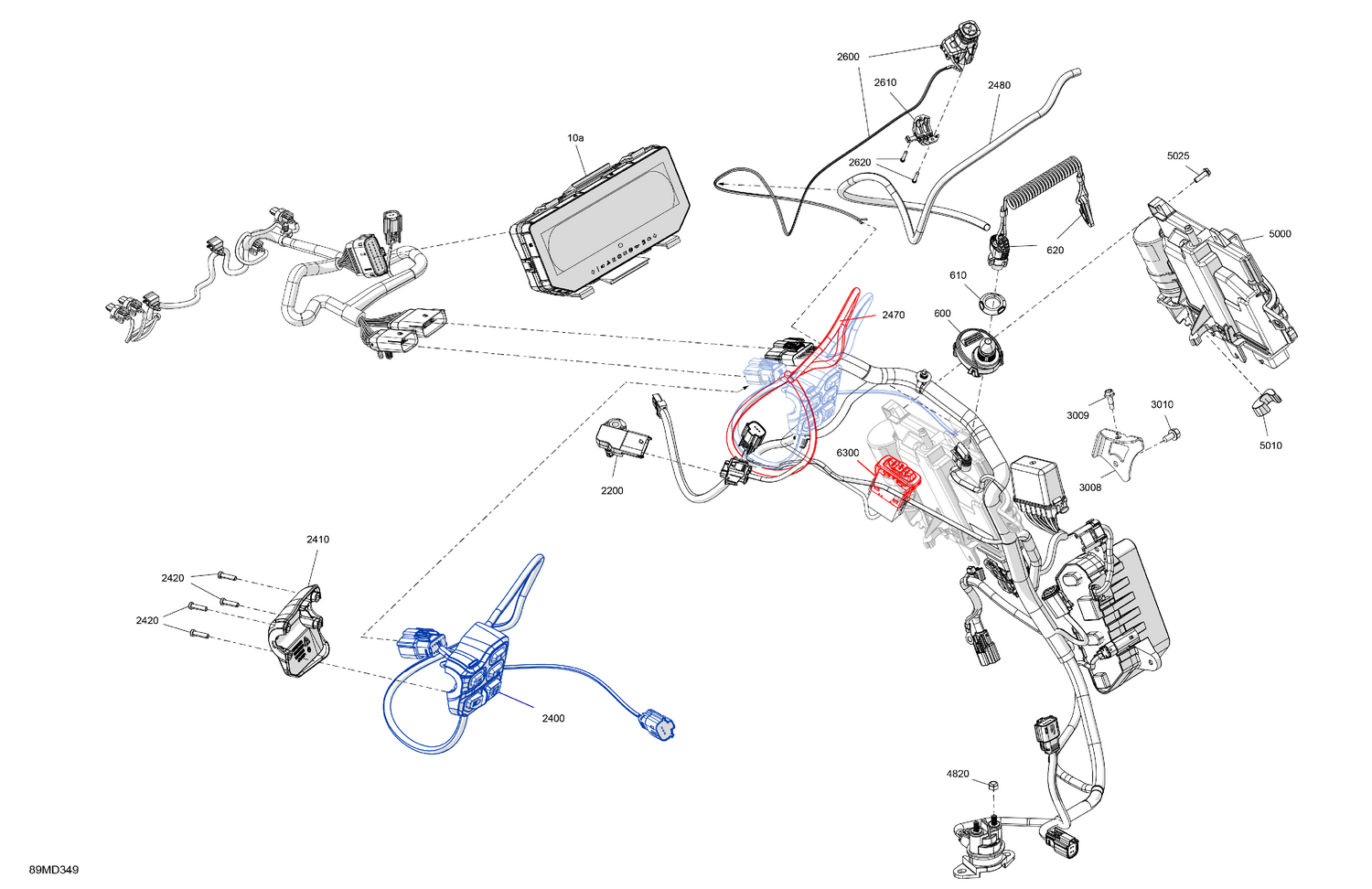

08- Electric - Upper Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 515179828 | Multifunction Full Size Mono Gauge This part replaces 515178227. |
| 600 | 710008832 | Terminal DESS CAN |
| 610 | 278004274 | Specialized Nut |
| 620 | 515179475 | Grey, Ski-Doo DESS Key |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2400 | 515179435 | LH Front Multifunction Switch |
| 2410 | 515179437 | Switch Cover |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3008 | 515179281 | Fuse Box Support |
| 3009 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3010 | 250001062 | Hex. Flange Screw M6 X 16 |
| 4820 | 232561434 | Elastic Stop Nut M6 |
| 5000 | 515179352 | ECM Module |
| 5010 | 515178430 | Rubber Stopper |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
