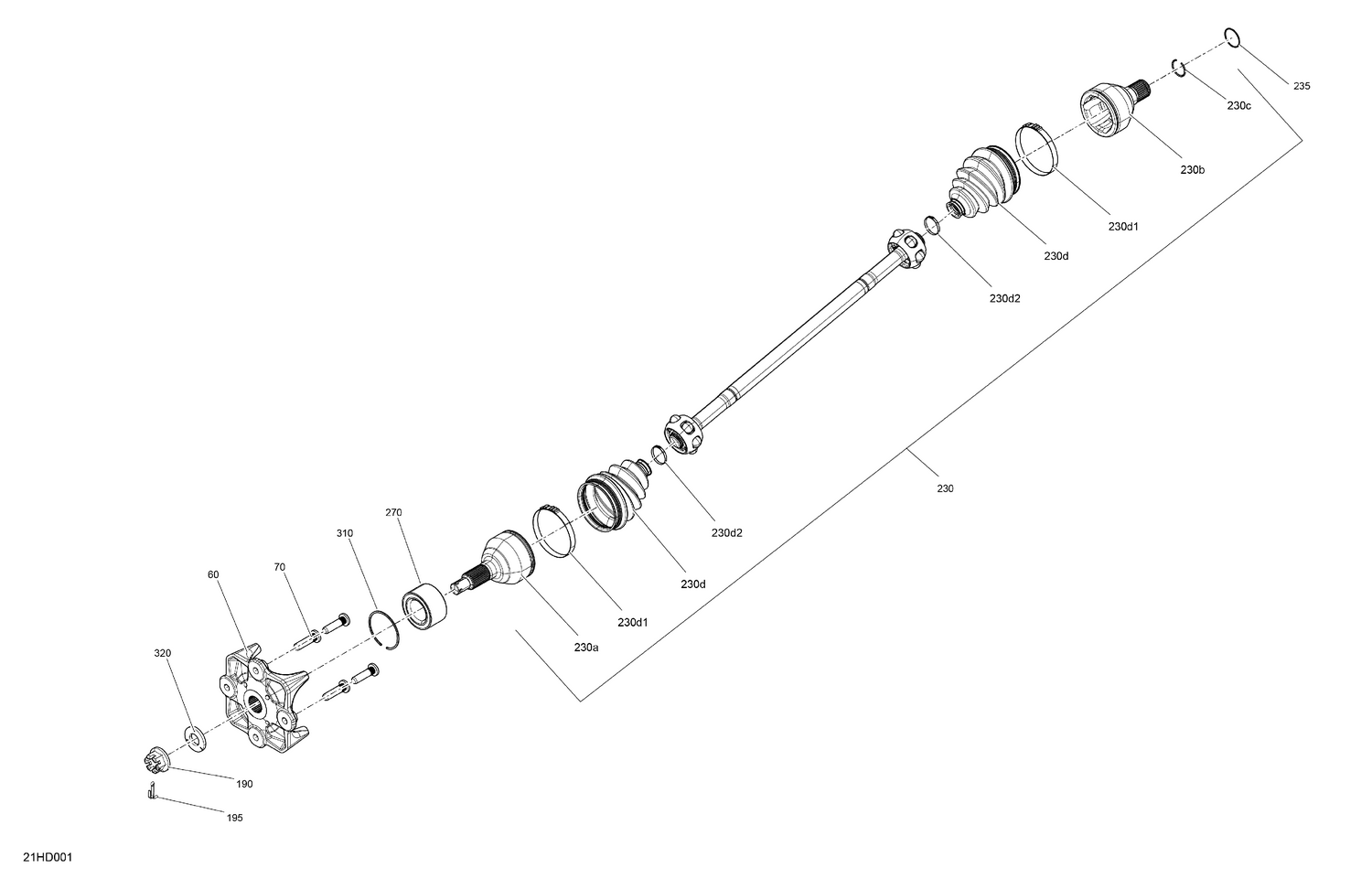

04- Drive - Rear - Common Parts
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 70 | 250300625 | Wheel Stud M12X1.5 |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400108 | Cotter Pin |
| 230a | 715900447 | CV Joint |
| 230b | 715900448 | PLUNGING JOINT - Call your local BRP dealership |
| 230c | 715900449 | Circlip Joint |
| 230d1 | 715900455 | Oetiker Clamp, Large |
| 230d2 | 715900456 | Oetiker Clamp, Small |
| 235 | 293300196 | O-Ring |
| 270 | 293350151 | Ball Bearing |
| 310 | 293370169 | Internal Retaining Ring |
